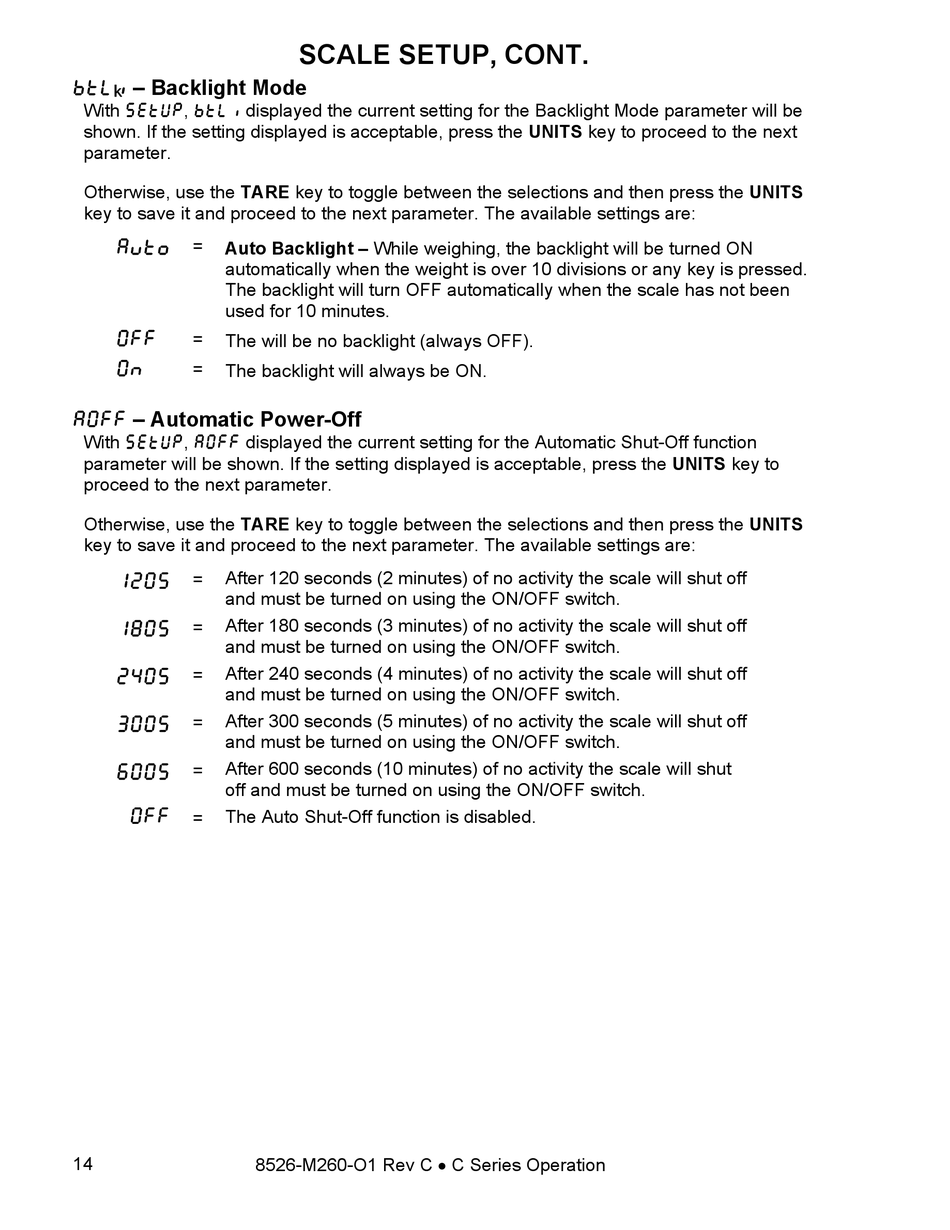

Cardinal Detecto C Series Operation Manual page 20

btli – Backlight Mode
k
With SETUP, btli displayed the current setting for the Backlight Mode parameter will be
shown. If the setting displayed is acceptable, press the UNITS key to proceed to the next
parameter.
Otherwise, use the TARE key to toggle between the selections and then press the UNITS
key to save it and proceed to the next parameter. The available settings are:
=
Auto Backlight – While weighing, the backlight will be turned ON
Auto
automatically when the weight is over 10 divisions or any key is pressed.
The backlight will turn OFF automatically when the scale has not been
used for 10 minutes.
=
OFF
The will be no backlight (always OFF).
=
On
The backlight will always be ON.
AOFF – Automatic Power-Off
With SETUP, AOFF displayed the current setting for the Automatic Shut-Off function
parameter will be shown. If the setting displayed is acceptable, press the UNITS key to
proceed to the next parameter.
Otherwise, use the TARE key to toggle between the selections and then press the UNITS
key to save it and proceed to the next parameter. The available settings are:
After 120 seconds (2 minutes) of no activity the scale will shut off
=
120s
and must be turned on using the ON/OFF switch.
After 180 seconds (3 minutes) of no activity the scale will shut off
=
180s
and must be turned on using the ON/OFF switch.
After 240 seconds (4 minutes) of no activity the scale will shut off
=
240s
and must be turned on using the ON/OFF switch.
After 300 seconds (5 minutes) of no activity the scale will shut off
=
300s
and must be turned on using the ON/OFF switch.
After 600 seconds (10 minutes) of no activity the scale will shut
=
600s
off and must be turned on using the ON/OFF switch.
The Auto Shut-Off function is disabled.
OFF
=
14
SCALE SETUP, CONT.
8526-M260-O1 Rev C  C Series Operation
