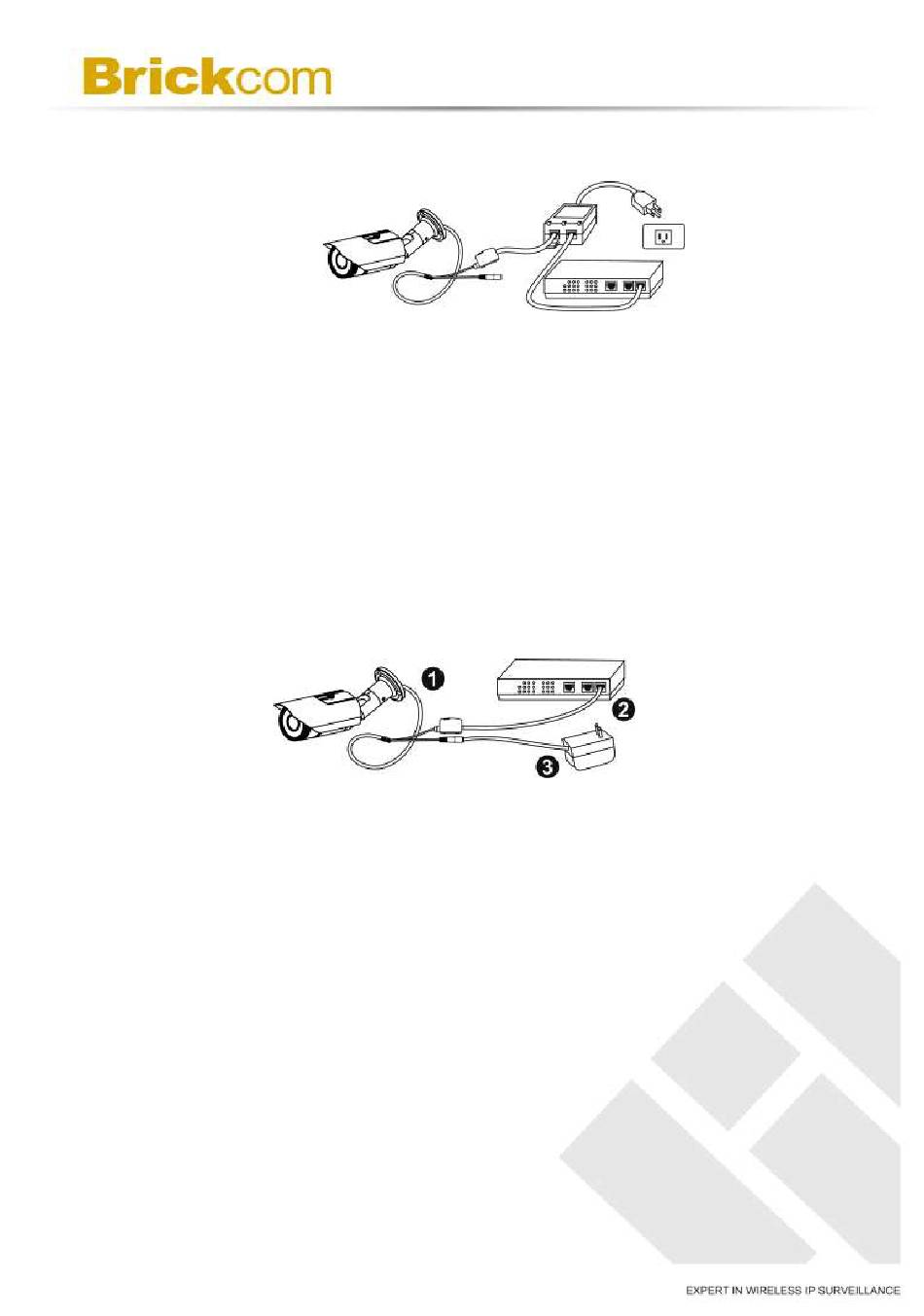

b. Powering on Camera with PoE Injector:

i. Use an Ethernet cable to connect the camera to a PoE injector.

ii. Use an Ethernet cable to connect the PoE injector to the non-PoE

switch.

iii. Connect the PoE Injector to a power outlet.

c. Powering on Camera with DC12V 1A Power Adapter. The Ethernet

Cable Is Simply for Data.
