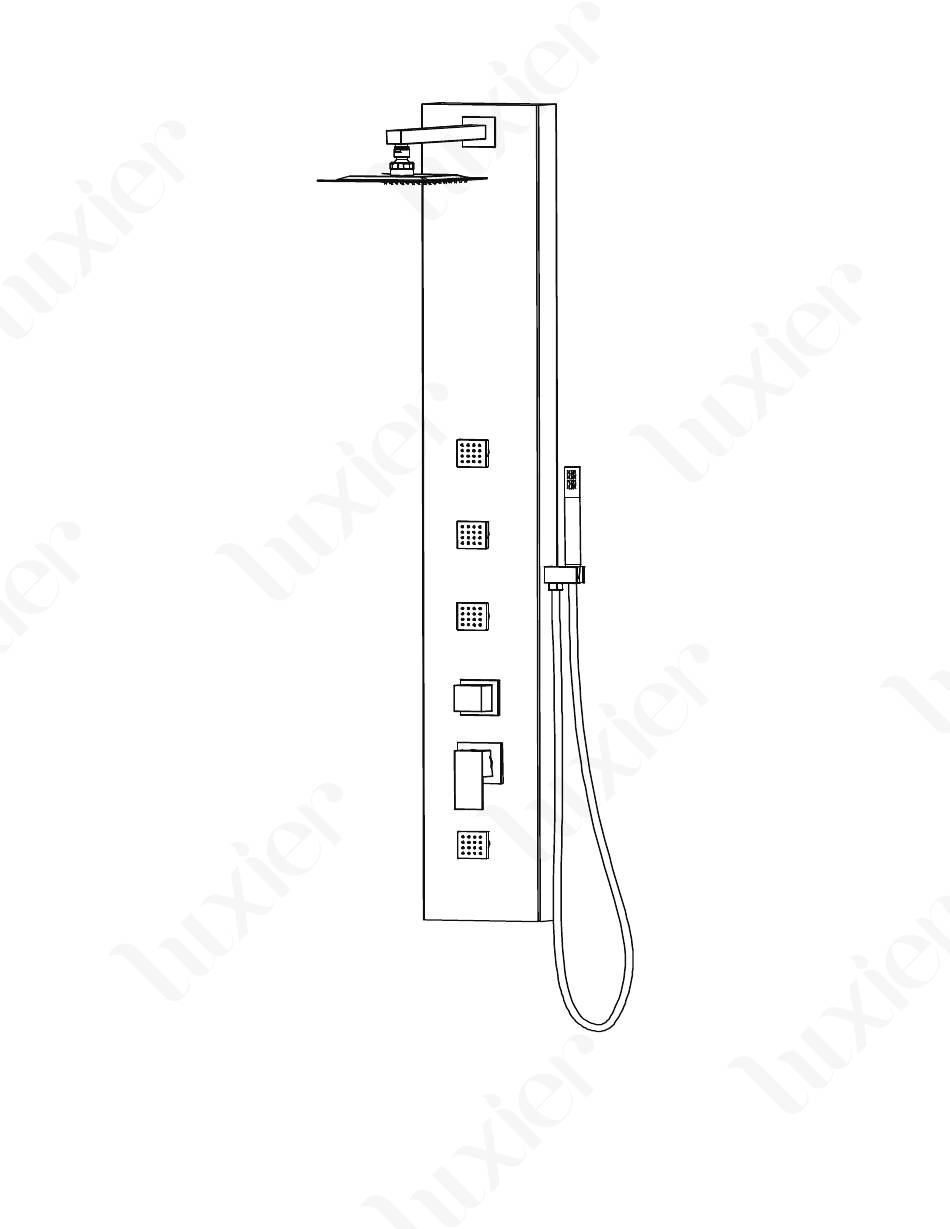

Luxier SP10-SS
Features
- Elegant and durable silver stainless steel frame construction
- 8" stainless steel ultra thin rainfall shower head with 81 nozzles
- 3 stage shower function (Rainfall, Horizontal Massage Spray, Hand Shower)
- 4 adjustable angle brass massage jets with 16 nozzles on each jet
- Contemporary brass hand shower
Luxier
SP10-SS Rev. A2 092016
1
Advertisement
Table of Contents
Related Manuals for Luxier SP10-SS
Summary of Contents for Luxier SP10-SS
- Page 1 - 8” stainless steel ultra thin rainfall shower head with 81 nozzles - 3 stage shower function (Rainfall, Horizontal Massage Spray, Hand Shower) - 4 adjustable angle brass massage jets with 16 nozzles on each jet - Contemporary brass hand shower Luxier SP10-SS Rev. A2 092016...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP10-SS Rev. A2 092016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Luxier SP10-SS Rev. A2 092016...
-
Page 5: Technical Data
Technical Data 200mm 430mm 70mm 2.76” 7.87” 16.93” 203mm 8” 1,500mm 59.06” 800mm 31.5” 700mm 27.56” 410mm 320mm 16.14” 12.6” * All Measurements are Approximate Luxier SP10-SS Rev. A2 092016... -
Page 6: Parts List
06. O ring 07. Hand shower hose 08. Rubber Gasket 09. Hand Shower Water Connec- 10. Rubber Gasket 11. Shower Water Connector 12. Screws X 4 13. Mounting Brackets X 2 14. Wall Anchors X 4 Luxier SP10-SS Rev. A2 092016... -
Page 7: Installation
Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The 800mm distance between the two brackets should 31.5” be 800mm or 31.5”) Luxier SP10-SS Rev. A2 092016... - Page 8 6. Apply thread sealant tape to the thread- ing on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP10-SS Rev. A2 092016...
- Page 9 9. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Luxier SP10-SS Rev. A2 092016...
-
Page 10: Operation
5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP10-SS Rev. A2 092016...
