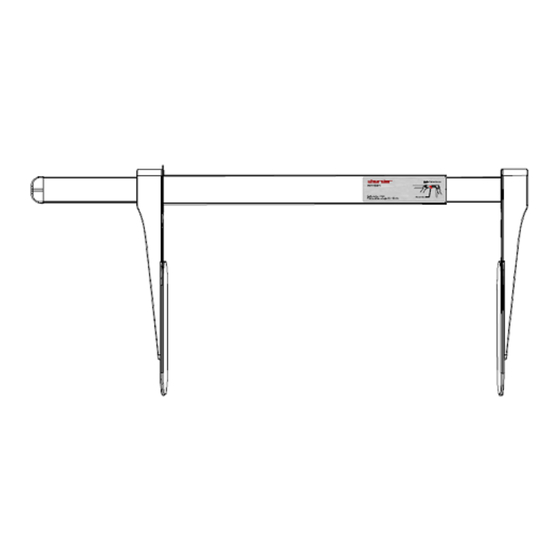

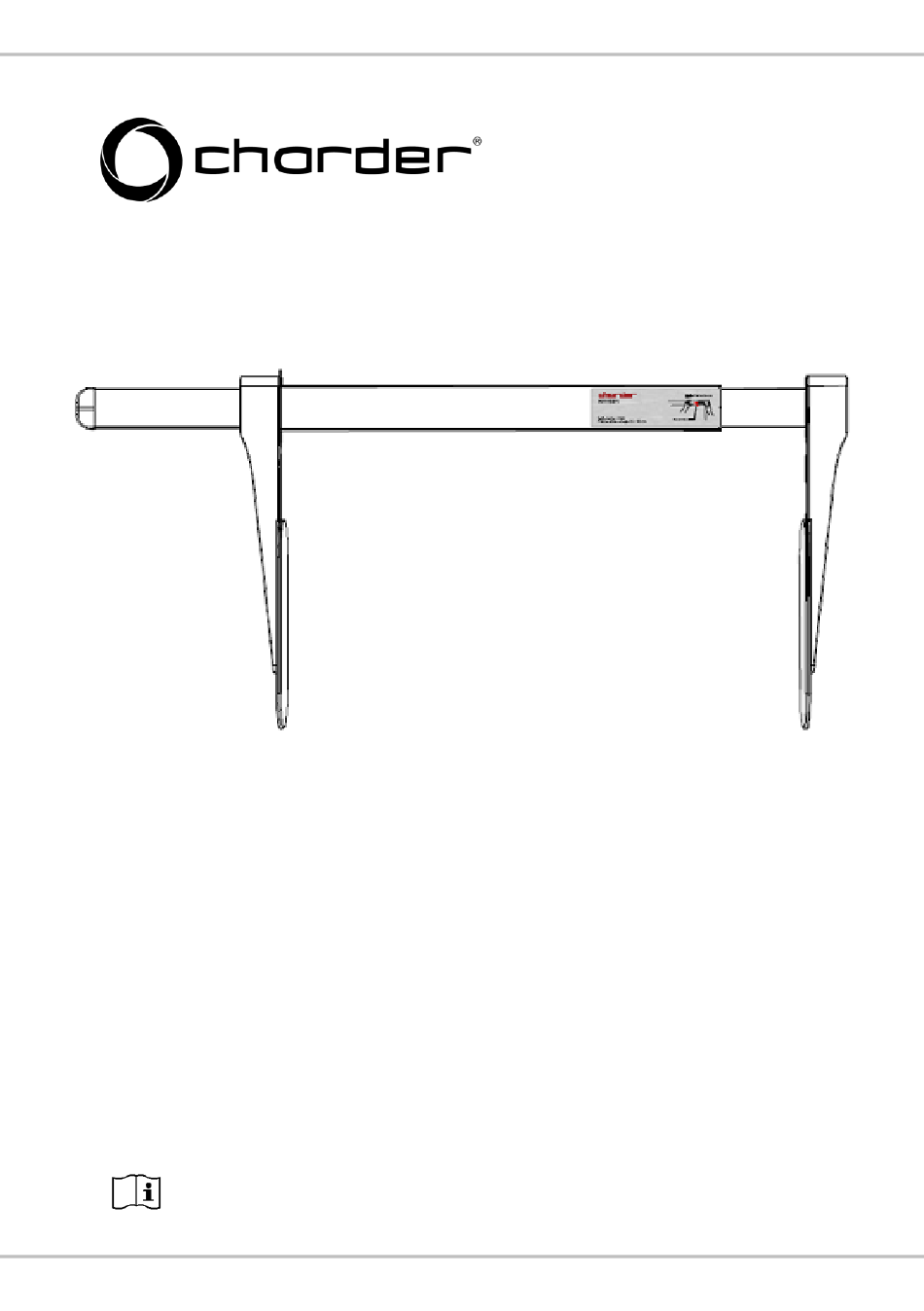

- Page 1 USER MANUAL HM100D Infant Height Stadiometer Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Text/Symbols on Device Label/Packaging Text/Symbol Meaning Caution, consult accompanying documents before use Separate collection for waste of electrical and electronic equipment, in accordance with Directive 2002/96/EC. Do not dispose of device with everyday waste Name address device manufacturer, year/country of manufacture Carefully read user manual before installation and usage, and follow instructions for use.
- Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............5 B. EMC Guidance and Manufacturer's Declaration ......6 II. Installation ................10 A. Assembly with MS3500 and MS21NEOV Infant Scale ....10 B. Assembly with MS5980 Infant Scale ........11 III. Using Device ..............13 Calibrating Height Stadiometer ........13 IV. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. -
Page 6: Emc Guidance And Manufacturer's Declaration
Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty. - Page 7 The product is suitable for use in all establishments other than domestic and those directly connected to a RF emissions CISPR 11 Class A low voltage power supply network which supplies buildings used for domestic purposes. Guidance and manufacturer’s declaration-electromagnetic immunity The device is intended for use in the electromagnetic environment specified below.
- Page 8 Guidance and manufacturer’s declaration-electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance Electromagnetic Immunity test level level environment-guidance...
- Page 9 a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
-
Page 10: Installation
II. Installation A. Assembly with MS3500 and MS21NEOV Infant Scale 1. Attach bracket to tray using bracket screws*2 2. Connect HM100D cable to scale. Data transmission port... -
Page 11: Assembly With Ms5980 Infant Scale
B. Assembly with MS5980 Infant Scale 1. Carefully attach head stopper to each end of height rod. 2. Install height rod + head stopper onto bracket using Philips screws. 3. 4. Install height rod + head stopper + bracket onto infant scale. (Twist knobs clockwise to secure bracket) 5. - Page 12 Plug data transmission port into indicator.
-
Page 13: Using Device
III. Using Device A. Calibrating Height Stadiometer Before using height stadiometer, slide measurement rod to left completely then turn on scale to finish calibration. B. Performing measurement and operating 1. Lay infant on flat platform, with head touching head stopper. Straighten infant’s feet. - Page 14 2. Use right hand to push foot stopper until it touches soles of infant's feet. You can also read measurement result from stadiometer. The height measurement result will automatically be sent to device indicator and display at the same time.
-
Page 15: Product Specifications
± 10 mm Dimensions Overall 1075(W) x 287(D) x 72(H) mm Device 0.68 kg Weight Power Source AAA Batteries*2 Operation Temperature & 5℃~35℃ Humidity Standard Accessories User manual x1 Bracket set for installation on Optional Accessories compatible Charder Infant Scale... -
Page 16: Declaration Of Conformity
(EU) 2017/745 Regulation on Medical Devices Classification: Class I with measuring function RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-00491 REV 001 2022/06...
