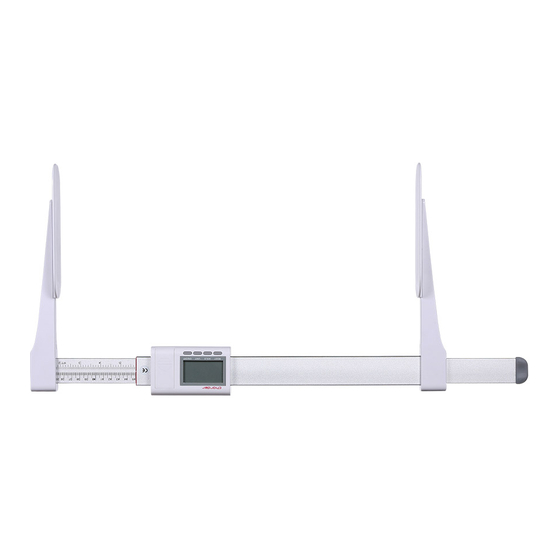

Portable infant height stadiometer
Hide thumbs Also See for HM80D:

Advertisement

Quick Links

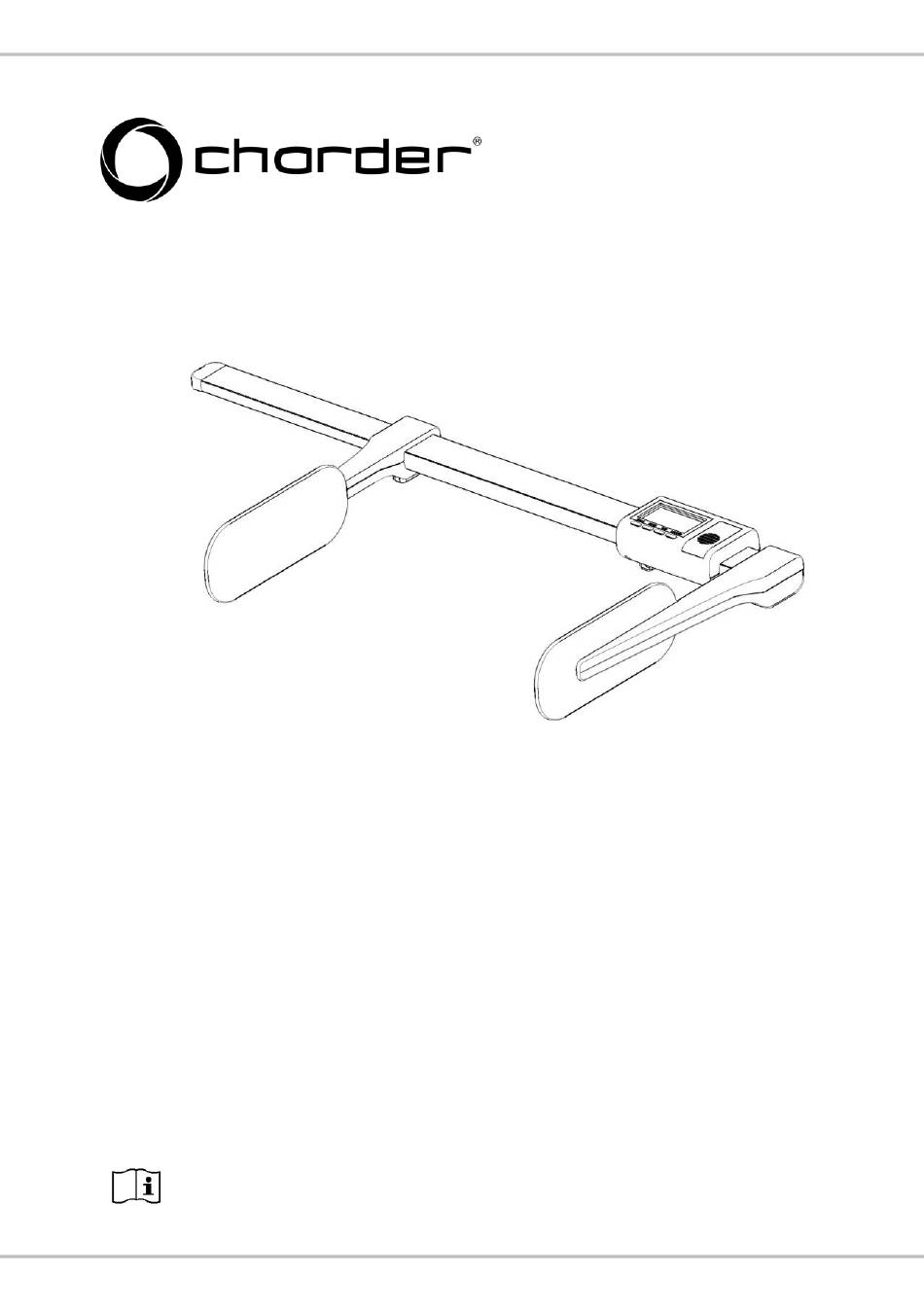

USER MANUAL
HM80D
Portable Infant Height Stadiometer
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM80D and is the answer not in the manual?

Questions and answers

Summary of Contents for Charder HM80D

  • Page 1 USER MANUAL HM80D Portable Infant Height Stadiometer Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Text/Symbols on Device Label/Packaging Text/Symbol Meaning Caution, consult accompanying documents before use Separate collection for waste of electrical and electronic equipment, in accordance with Directive 2002/96/EC. Do not dispose of device with everyday waste Name and address of device manufacturer, and year/country of manufacture Carefully read user manual before installation and usage, and follow instructions for use.
  • Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............5 B. EMC Guidance and Manufacturer's Declaration ......7 II. Assembly with MS3500/MS21NEOV/MS4200 Infant Scales 10 III. Assembly with MS5900 Infant Scale ........12 IV. Assembly with MS2400 Infant Scale ........15 V.
  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty.
  • Page 7: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Electromagnetic Emission test Compliance...
  • Page 8 Guidance and manufacturer’s declaration-electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance Electromagnetic Immunity test level level environment-guidance...
  • Page 9 a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
  • Page 10: Assembly With Ms3500/Ms21Neov/Ms4200 Infant Scales

    II. Assembly with MS3500/MS21NEOV/MS4200 Infant Scales 1. Attach bracket to tray using bracket screws*2 SS-5611 bracket 2. Slide HM80D Height Stadiometer onto bracket until you hear a clicking noise that indicates it has been securely attached...
  • Page 11 3. Assembly complete (To detach HM80D, press on tab at the bottom while pulling)
  • Page 12: Assembly With Ms5900 Infant Scale

    III. Assembly with MS5900 Infant Scale 1. Push bracket holder cover towards screen 2. Remove bracket cover...
  • Page 13 3. Attach SS-6611 bracket to device with two screws 4. Slide HM80D Height Stadiometer onto bracket until you hear a clicking noise that indicates it has been securely attached...
  • Page 14 5. Place bracket holder cover back into place (To detach HM80D, remove bracket holder cover, and press on tab at the bottom while pulling)
  • Page 15: Assembly With Ms2400 Infant Scale

    1. Attach bracket to device, and fasten screws using screwdriver. Version with rubber head pad rubber head pad Attach bracket here rubber head pad Version without rubber head pad Attach bracket here 2. Connect height measure attachment (HM80D or HM80M) to bracket. A clicking noise will be heard.
  • Page 16 3. To detach height measure, find the latch located at the rear of the attachment. Press down on the buckle, and gently remove the attachment from bracket.
  • Page 17: Assembly With Ms5980 Infant Scale

    V. Assembly with MS5980 Infant Scale 1. Attach L-shaped height rod bracket to column with two screws. 2. Complete installation of height stadiometer.
  • Page 18: Preparing For Use

    VI. Preparing for Use Keys RESET: Press after pushing height rod to lowest position to calibrate to lowest value UNIT: Switch measurement unit between imperial and metric HOLD: Hold height measurement value on screen ON | OFF: Turn device on and off Inserting Batteries Insert AAA batteries*2 Calibration...
  • Page 19: Using Device

    VII. Using Device 1. Turn on device by pressing ON/OFF key 2. Lay infant on flat platform, with head touching head stopper. Straighten infant’s feet 3. Use left hand to secure infant's feet, while using right hand to push foot stopper until it touches soles of infant's feet.
  • Page 20: Troubleshooting

    VIII. Troubleshooting If head stopper comes loose, please place it back in position...
  • Page 21: Product Specifications

    1/16 in Accuracy ± 10 mm Dimensions Overall 870(W) x 290(D) mm Device Weight 0.6 kg Power Source AAA Batteries*2 Operation Temperature & 5℃~35℃ Humidity Standard Accessories User manual x1 Bracket set for installation on Optional Accessories compatible Charder Infant Scale...
  • Page 22 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
  • Page 23 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
  • Page 24: Declaration Of Conformity

    93/42/EEC as amended by 2007/47/EC Medical Device Directive Classification: Class I with measuring function RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1072 8056H 2022/06...
