D2D port configuration

The system will automatically configure the D2D ports based on your selections in the module programming. The white D2D port is
reserved for SmartStart. To ensure proper functionality with SmartStart, it is important that it is selected in the system programming
of the DirectLink application or via the online web tool.
Note: Both black D2D ports are reserved for the Control Center (antenna) and 8504D Combo Sensor.

Module programming

Refer to "LED diagnostics and troubleshooting" on page 19 for more information and for troubleshooting purposes.

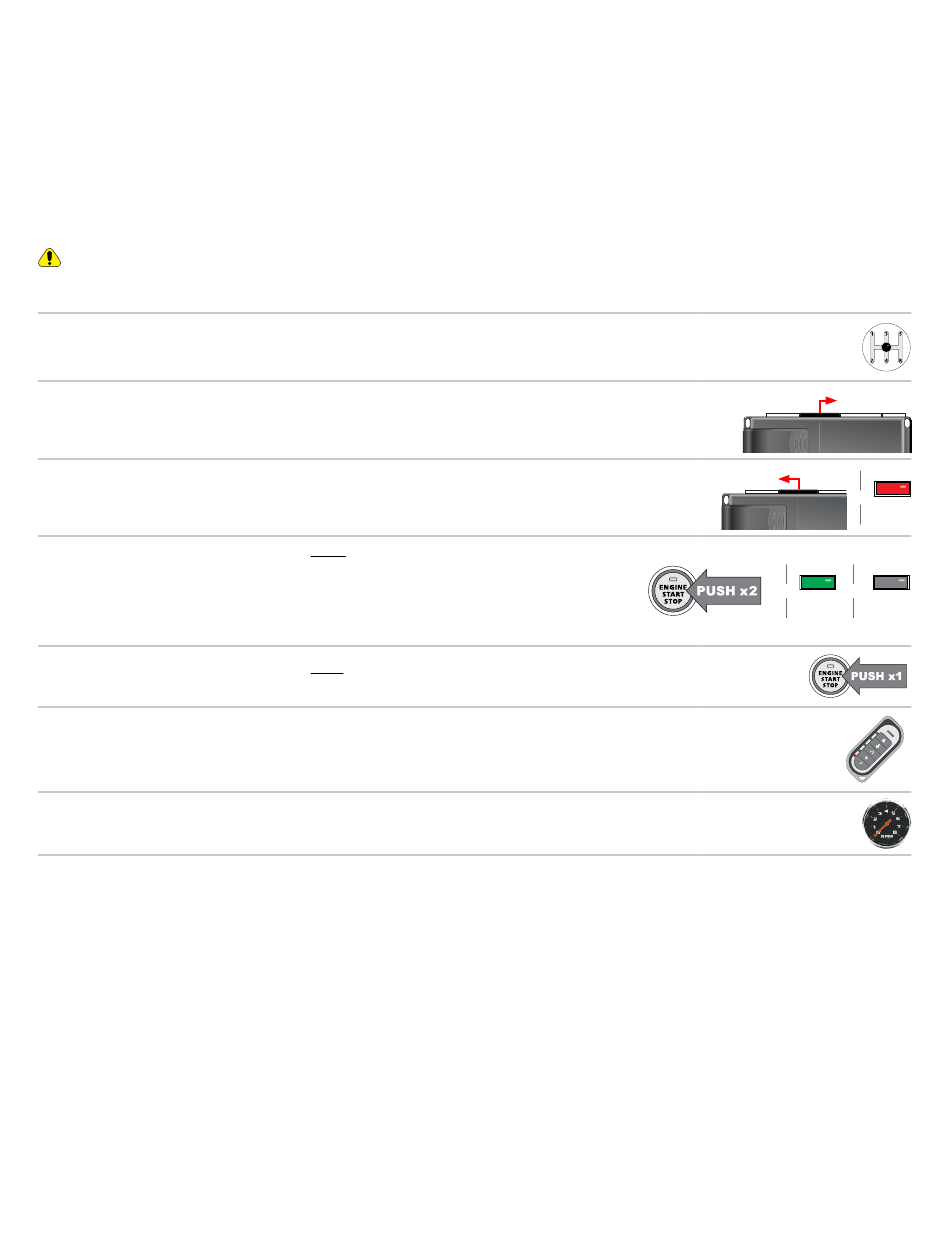

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Press the Push-to-Start (PTS) button twice to turn the ignition ON.
The LED turns ON solid green for 3 seconds, and then shuts OFF.
4
The LED flashes orange if an OEM remote starter has been detected. See
the section "Important OEM Remote Starter Information" on page 8.
Press the Push-to-Start (PTS) button once to turn vehicle ignition OFF once the module is
5
successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please
6
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
7
program tach, see page 22.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
18
Connect all but the
12-pin harness
Must be
connected LAST
&
Solid
& &
Solid Off
Pair
remotes*
Initialize
tachometer
DS4+ TL2
