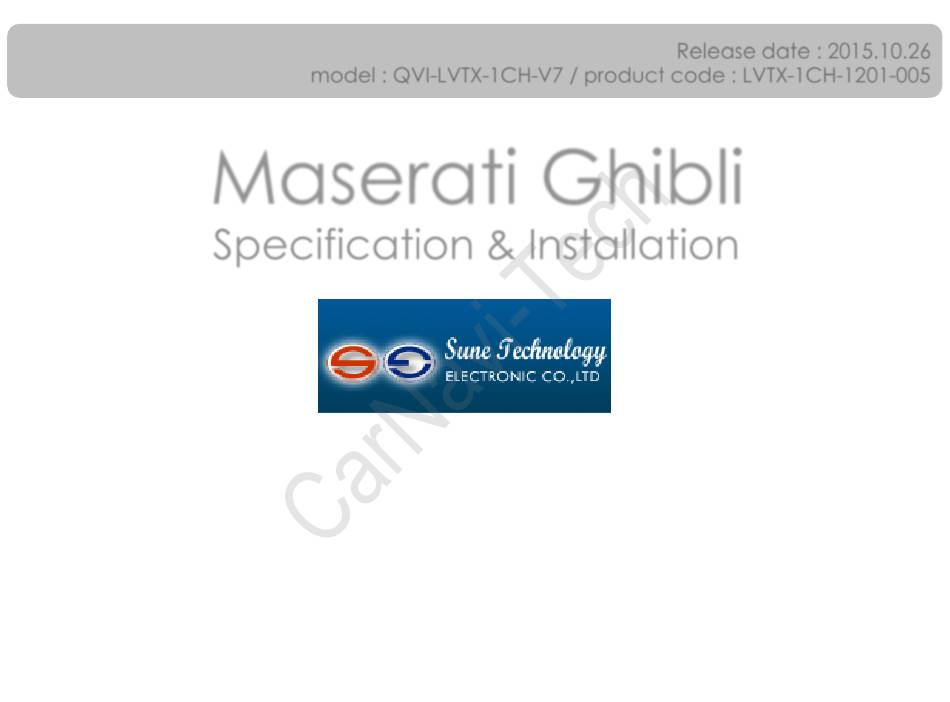

Release date : 2015.10.26
model : QVI-LVTX-1CH-V7 / product code : LVTX-1CH-1201-005
Maserati Ghibli
Specification & Installation
SUNE TECHNOLOGY CO.,LTD
No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN
TEL:+88662292246 FAX:+88662288104
Http://www.sune-tech.com
Shop http://www.carnavi-tech.com
SKYPE:sune_tech or hsin_han99
Your best partner for better driving
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sune Technology QVI-LVTX-1CH-V7
Summary of Contents for Sune Technology QVI-LVTX-1CH-V7
- Page 1 Release date : 2015.10.26 model : QVI-LVTX-1CH-V7 / product code : LVTX-1CH-1201-005 Maserati Ghibli Specification & Installation SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99 Your best partner for better driving...
-
Page 2: Table Of Contents
Contents 1. Before installation 1.1 Main specification 1.2 Features 1.3 System diagram 1.4 Components 1.5 Exterior 2. SETUP 2.1 DIP switch 2.2 Remote controller 2.3 Switching modes 2.4 OSD (on screen display) 2.5 FACTORY mode 2.6 Rear view parking guide line 2.7 Remote controller button 2.8 DVD, DTV model selection 3. -
Page 3: Main Specification
1.1 Main specification 1. Input Spec. (MULTI VIDEO INTERFACE) - 1 x Analog R, G, B, C sync - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 3 x A/V (NTST & PAL) Input. - 1 x LCD Input (Car system Input) 2. -
Page 4: Features
1.2 Features DVD, DTV control via registering values of the buttons on the remote controller (only for models including remote controller Plug & Play (the LVDS cable offered) Control of position of the DVD, navigation image Mode switch via Touch (OEM to External) ... -
Page 5: System Diagram
1.3 System diagram Remote Control Switch for source toggle RGB Touch Input OEM Button (Can Signal) RGB Input A/V1 In/Out A/V2 VIDEO A/V3 CIRCUIT VIDEO MUX CVBS (Rear Camera) POWER CIRCUIT HEADREST MONITOR NAVI DIP S/W Power Input (+8VDC~+18VDC) -
Page 6: Components
1.4 Components TOUCH OUT cable * 1ea (HTOUCH0004) IR cable * 1ea LVDS cable * 1EA TOUCH IN/OUT cable* 1ea (HIRCAB0002) (HLVDSC0014) (HTOUCH0020) MODE cable * 1ea (HARETC0001) LCD cable * 1EA (HLCDCA0007) RGB cable * 1ea (HNAVIC0004) Sub board* 1ea FFC cable* 1ea (FFCABL0023) Remote control * 1ea... -
Page 7: Exterior
1.5 Exterior ⑫ ⑬ ⑥ ⑦ ⑧ Dimension Horizontal length 147mm Vertical length 91mm Height 27mm ① LED ② POWER/CAN/RGB ③ RGB IN-2 ⑨ ⑩ ⑪ ④ REAR CAMERA ⑨ LVDS-IN ⑤ AV(IN/OUT) ⑩ LED ⑥ DIP SWITCH ⑪ LCD-OUT ⑦... -
Page 8: Dip Switch
2.1 DIP switch 2.1 DIP switch #PIN function DIP S/W selection ※ ON : DOWN, OFF : UP ON : Skipping RGB Mode ※ DIP S/W usage RGB INPUT skip OFF : RGB Display - Input mode to intend to use ON : Skipping A/V 1 A/V 1 skip : A/V3(DVD) -
Page 9: Remote Controller
2.2 Remote controller Function POWER & PIP Not for use MENU OSD implementation Making a selection ▲ Move upward ▼ Move downward Move leftward, press 2 seconds long-Factory ◀ mode implementation Move rightward, press 2 seconds long-Factory ▶ Mode implementation-Factory mode Reset... -
Page 10: Switching Modes
2.3 Switching modes Behind the monitor If press red part, can switch mode Dip8:OFF,connect CAN from DISPLAY If you press long this button on steering wheel, Can switch mode If you press short, can switch to original mode Behind the CD/RADIO DIP8:ON,connect CAN from RADIO/CD... -
Page 11: Osd (On Screen Display)
2.4 OSD (on screen display) OSD menu: Press ”MENU” button on the remote controller. Analog RGB Analog RGB Analog RGB Video Video Video IMAGE UTIL - BRIGHTNESS - LANGUAGE : To change the language - FACTORY RESET : To reset all the - CONTRAST displaying on navigation, DVD, CMMB values about navigation, DVD screen... -
Page 12: Factory Mode
2.5 Factory mode Factory mode: press ◀ button 2 seconds long. IMAGE Menu of FACTORY - H-POSITION : Control over horizontal movement of screen IMAGE H-POSITION - V-POSITION : Control over vertical movement of the screen PARK V-POSITION - AVOUT SELECT : DEFAULT, AV1, AV2, AV3 UTIL AVOUT SELECT UTIL2... - Page 13 2.5 Factory mode Factory mode: press ◀ button 2 seconds long. UTIL2 Menu of FACTORY - CALIBRATION : Touch calibration IMAGE CALIBRATION - TOUCH ENABLE : Select to use or not for touch when switch mode PARK TOUCH ENABLE - OEM SKIP : Selecting the use of OEM mode UTIL OEM SKIP - HDMI SKIP : Selecting the use of HDMI mode...
-
Page 14: Rear View Parking Guide Line
2.6 Rear view parking guide line Factory mode: press ◀ button 2 seconds long. ① Register the value needed on the “PARK ENABLE” as “ON” in the PARK section as shown left. (default – ON) ② If you get rear gear after setup, parking guide line will appear on screen as shown left. -
Page 15: Remote Controller Button
2.7.1 Remote controller button Registering value of remote controller buttons? When you want to control DVD and DTV via touch screen (using OSD menu) with other models besides already registered option-SANYO and NECVOX, you can register value of DVD and DTV’ s remote controller which you have. - Page 16 2.7.2 Remote controller button >>> ③ After register, select “INPUT” in OSD menu and Instruction> continued… c. The values that you registered will appear as green press “OK”. Then you can see confirmation window text in the marked area on pressing the button. And as shown above.
-
Page 17: Dvd, Dtv Model Selection
2.8 DVD, DTV model selection DTV TYPE DVD TYPE UTIL – DVD/DTV TYPE If DVD/DTV type that you want to use is not NECVOX or SANYO, you have to register values of the remote controller that you want to use in the “IR MEMORY” section and set the “DVD TYPE”/”DTV TYPE” to “USER”. Unless you do this process after saving the data, you can NOT control DVD/DTV via touch screen. -
Page 18: Installation Diagram
3.1 Installation diagram LCD-OUT LVDS IN Offered LVDS cable Touch cable SUB BOARD navigation TOUCH Offered LCD cable LCD-IN IN/OUT DIP S/W TOUCH OUT LVDS Offered Touch cable TO NAVI VIDEO INTERFACE TOUCH OUT TOUCH IN Original FFC cable Offered FFC cable POWER/CAN/RGB R-CAM A/V(IN/OUT) -
Page 19: Cautions On Installation
3.2 Cautions on installation Ignition key should be taken off before starting installation, interface power connection must be the last step in installation. Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around installation place. ... -
Page 20: Installation
3.3 Installation 1. Connect LVDS Cable ② ① Original LCD cable COMMNAD Offered LVDS cable Offered LCD cable ③ 1. Offered LVDS Cable connect to LVDS-IN in Sub-board 2. After dividing original LCD cable from the back of monitor, and connect with LCD-IN in sub-board 3. - Page 21 3.3 Installation 2. Connecting CAN cable respectively The LCD cable in the back of monitor connect with offered powercable Behind the monitor CAN-Low Power Cable CAN-High Connect CAN-H cable (Green + brown) enclosed in our package with the original CAN-H cable (Yellow). And connect CAN-L cable (green) enclosed in our package with the original CAN-L cable (Grey).
-
Page 22: Troubleshooting
4. Troubleshooting Q. I can not switch A/V sources. A. Check IR or Ground cable connection. Check LED lamps in the interface, if it is not on, check power cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV sources connected works well.) Check interface connection has been done well.
