- Page 1 Installation Manual HDMI Interface for New PORSCHE Interface model QHI-PCM5.0...
- Page 2 Compatibility: Porsche PCM5.0 cars Components: Interface Main*1 Interface Input / Output specification: Input: HDMI* 1 Analog RGB* 1 A/V* 2 CVBS(Front Camera)*1 CVBS(Rear Camera)*1 Output: To LCD*1 Power Spec: Input Power: 8VDC ~ 18VDC Consumption: 5WATT Switch input mode: External video sources skip function: Able to control input videos on and off via Dip switches Able to switch videos via the remote and button switch Able to detect the rear view camera by CAN...
-

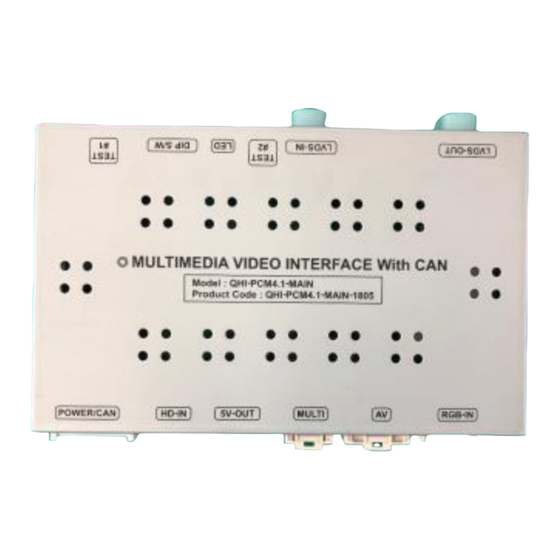

Page 3: Main Board
POWER CABLE CAN J BY J LCD CABLE MAIN BOARD HPOWER0213 HARETC0288 HLCDCA0017 RGB CABLE AV CABLE MULTI CABLE IR CABLE HRGBCA0013 HAVCAB0056 HARETC0240 HIRCAB0002 BUTTON CABLE REMOTE CONTROL HARETC0001 REMOTE0001... - Page 4 ※ ON : DOWN / OFF : UP FUNCTION Dip S/W SELECT OFF : RGB MODE ON : RGB MODE SKIP OFF : HDMI MODE HDMI ON : HDMI MODE SKIP OFF : AV1 MODE ON : AV1 MODE SKIP OFF : AV2 MODE ON : AV2 MODE SKIP OFF: External FCAM...
- Page 5 Menu of FACTORY Adjust the screen position of the current mode. IMAGE H-POSITION PARK V-POSITION H-POSITION: Move the screen left and right. UTIL1 UTIL2 V-POSITION: Move the screen up and down. INFO MENU to Return SEL to Select/Save Menu of FACTORY Change the settings of the rear camera.
- Page 6 Menu of FACTORY UTIL1 Setting IMAGE NAVI MODEL NAVI MODEL: RGB navigation setting PARK AVOUT SELECT UTIL1 FCAM TIME (Default, Q-roi RGB, WP9230, UTIL2 FACTORY RESET INFO HDMI(WVGA)) AVOUT SELECT: Select audio channel MENU to Return SEL to Select/Save transmitted through AUX (HDMI, AV) FCAM TIME: Set up the time for Showing...
- Page 7 OEM LCD Cable OEM Monitor QDIS supplied LCD Cable RGB NAVIGATION OEM Cable ※ Please disconnect OEM connector in red circle on OEM bunch of Connector and please connect MULTI CABLE supplied CAN cable. A/V CABLE...
- Page 8 Connect IR-NAVI cable (from Interface RGB cable) with TOUCH-RX cable (from UART-TOUCH of QROI2-RGB MULTI CABLE) as above.
- Page 9 ※ Please press HOME button long for mode switch. ※ Press back button on steering wheel for mode change. (To use this function, please set up HANDEL KEY ‘Enable’ on UTIL2 of Factory setting )
- Page 10 ※ Please press APPS button long for mode switch. ※For OEM button use on Macan, the FW version should be 190422 and afterward. (And Car model should be selected to Macan on Factory setting)
- Page 11 Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.
- Page 12 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX: +88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99 Copyright ⓒ 2019 by SUNE TECHNOLOGY...
