Summary of Contents for Sune Technology QHI-LVTX-ES300H

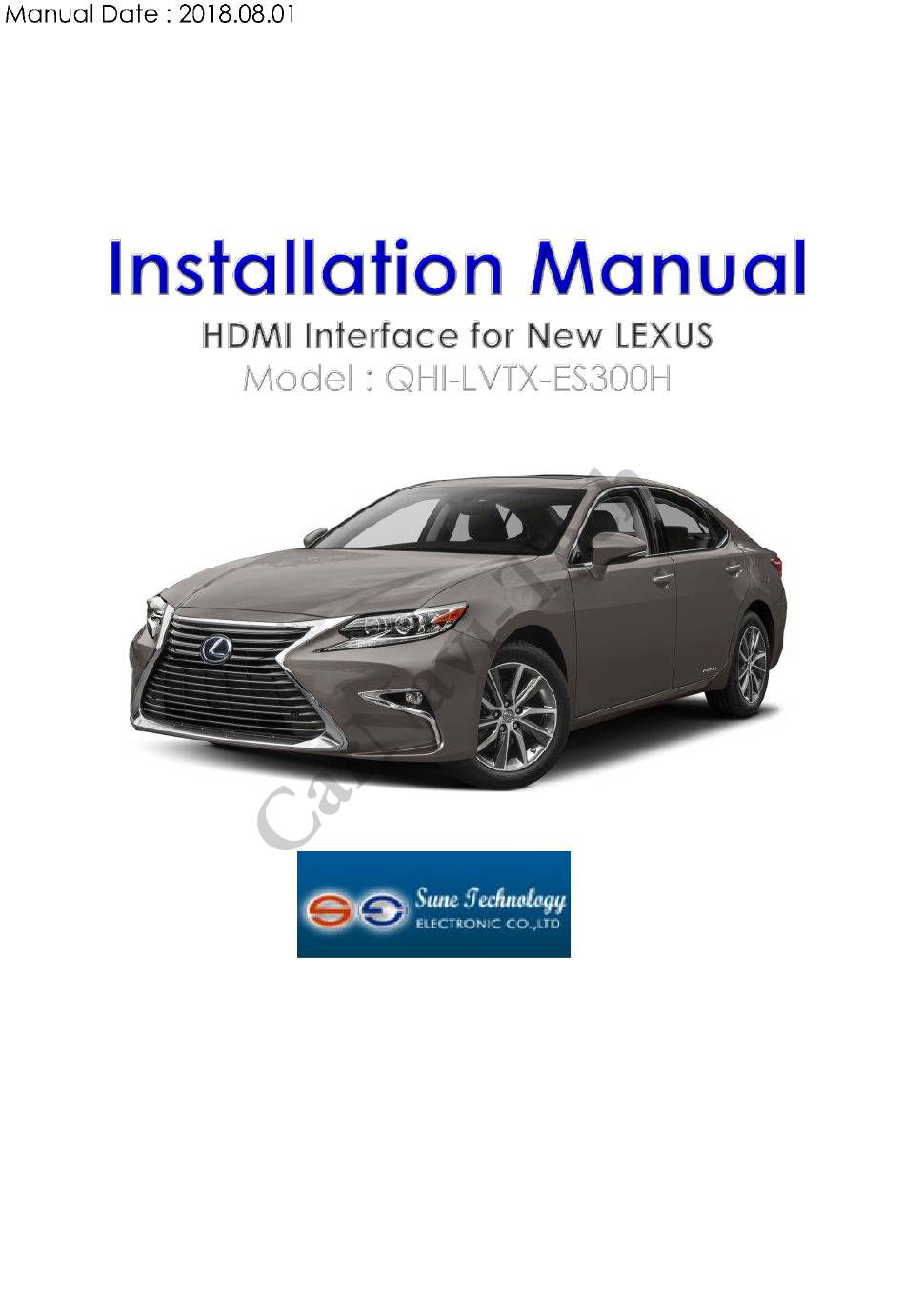

  • Page 1 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
  • Page 2: Specification

    Specification 1. Compatible vehicles: LEXUS ES300H 2014~ 2. Product configuration: Interface 1EA Sub board 1EA 3. Interface Input / Output Specifications Input: HDMI 2EA Analog RGB 1EA A/V 2EA CVBS(Rear camera) 1EA CVBS(Front Camera) 1EA Output: LCD 1EA 4. Power Specifications Input power: 8VDC ~ 18VDC Power consumption:...
  • Page 3 Features High-resolution display through HDMI input Control EXT devices(DVD/DTV) via Multi Media Touch GUI Adjustable screen position of external device Improved Screen Display(user-oriented interface) Mode switching with OEM button Power output for rear camera drive Dynamic PAS parking assistance system) Convenient parking environment with PAS and PDC...
  • Page 4 2017~2018 (RX/IS/ES/CT) •Components 2014-2017 NX LX15 CAN J BY J J BY J POWER ADC Cable LCD Cable HARETC0128 HPOWER0209 HARETC0267 HLCDCA0030 QHI-LVTX-5CH SUB BOARD AV Cable MULTI Cable Remote Control QCPASS1239 QCPASS1240 HAVCAB0056 HARETC0240 REMOTE0001 RGB Cable EX Cable Touch Cable RES TOUCH HDMI Cable...
  • Page 5 2018 NX & 2018 LS •Components NEW LX POWER NEW NX J BY J NEW LEXUS NX LCD HPOWER0211 HARETC0280 HLCDCA0051 QHI-LVTX-5CH SUB BOARD AV Cable MULTI Cable Remote Control QCPASS1239 QCPASS1240 HAVCAB0056 HARETC0240 REMOTE0001 RGB Cable EX Cable Touch Cable RES TOUCH HDMI Cable HRGBCA0013...
  • Page 6 2014-2018 (RX/ES/GS/IS) •Components 2012-2017 (LS/LX) 2014-2017 (NX/CT) with OEM NAVI NEW LX POWER NEW LX NAVI J BY J LCD Cable HPOWER0211 HARETC0279 HLCDCA0030 QHI-LVTX-5CH SUB BOARD AV Cable MULTI Cable Remote Control QCPASS1239 QCPASS1240 HAVCAB0056 HARETC0240 REMOTE0001 RGB Cable EX Cable Touch Cable RES TOUCH...
  • Page 7: Dip Switch Setting

    DIP SWITCH setting ※ ON : DOWN / OFF : UP FUNCTION DIP S/W SELECT OFF : RGB MODE ON : RGB MODE SKIP OFF : HDMI1 MODE HDMI1 ON : HDMI1 MODE SKIP OFF : AV1 MODE ON : AV1 MODE SKIP OFF : AV2 MODE ON : AV2 MODE SKIP ON : NX200T...
  • Page 8: Remote Control Setting

    Remote control setting FUNCTION POWER & PIP MENU Activating OSD menu Making a selection, changing image display Moving upward ▲ Moving downward ▼ Moving leftward (If you press this button 2 seconds long, you can ◀ access the factory mode) Moving rightward (If you press this button 2 seconds long, you can ▶...
  • Page 9: Factory Setting

    Factory setting Menu of FACTORY Adjust the screen position of the current mode. IMAGE H-POSITION PARK V-POSITION H-POSITION: Moves the screen left and right. UTIL H-SIZE(NAVI) INFO V-POSITION: Moves the screen up and down. H-SIZE (NAVI): Adjust the size of the left and right MENU to Return SEL to Select/Save navigation...
  • Page 10 Factory setting Navigation & Car model setting Menu of FACTORY IMAGE NAVI MODEL PARK CAR MODEL UTIL1 AVOUT SELECT UTIL2 HDMI SKIP INFO FACTORY RESET MENU to Return SEL to Select/Save NAVI MODEL: RGB Navigation Setting (Default, Q-roi RGB, WP9230, HDMI(WVGA)) HDMI MODEL: HDMI Navigation Setting (Q-roi RGB, WP9320, HDMI, PAPAGO) CAR MODEL:...
  • Page 11 Factory setting Other options setting Menu of FACTORY IMAGE I-DRV REMOTE PARK TOUCH ENABLE UTIL1 OEM KEY UTIL2 IR MEMORY INFO CALIBRATE FCAM TIME MENU to Return SEL to Select/Save I-DRV REMOTE: Select the model to control the DVD and DTV device through the remote control image that appears on the screen TOUCH ENABLE: Select touch method...
  • Page 12 OEM button (CAN connection) ※ Handle button ※ DISP button – Short press : Back to OEM Long press : Mode switch ※NOTICE: If use the DISP button, the instrument panel trip information switched as well. (Enable / Disable DIPS button - FACTORY → UTIL2 → OEM KEY) OEM button (ADC connection) ※...
  • Page 13: Installation

    Installation ADC-IN ADC-IN 2 ADC케이블 PIN 사양 NAVI BOX HDMI NAVI BOX HDMI Device A/V CABLE MULTI CABLE...
  • Page 14 LCD cable connection ① Disconnect OEM LCD cable from the monitor and connect to supplied “LCD-IN” cable. ② Connect supplied “LCD-OUT” cable to the monitor.
  • Page 15 •ADC Cable Connection 1) 2017~2018 (RX/IS/ES/CT) and 2014-2017 NX ※ Connect provided ADC IN-2 wire to the red cable(21 pin) of OEM cable. 2) 2018 NX and 2018 LS -> NEW NX CAN J BY J cable ※ ADC cable included in CAN J BY J cable 3) 2014-2018 (RX/ES/GS/IS) and 2012-2017 (LS/LX) and 2014-2017 (NX/CT) with OEM NAVI ->...
  • Page 16 J&J cable connection <POWER CABLE> CONNECT <CAN IN/OUT CABLE> <BEHIND COMMAND> ※NOTICE: Connector ① → Connect Behind Command ① Connector ② → Connect Behind Command ② Connector ③ → Connect OEM cable which was connected from behind command ① Connector ④ → Connect OEM cable which was connected from behind command ②...
  • Page 17 Cautions ※ Cautions : In case of flickering external image Please find the OEM cable and cut the Blue cable which was connected to pin #2 ※The color of the cable can be different...
  • Page 18: Troubleshooting

    Trouble shooting Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.
