Summary of Contents for Sune Technology Q-ROI-PCM3.1

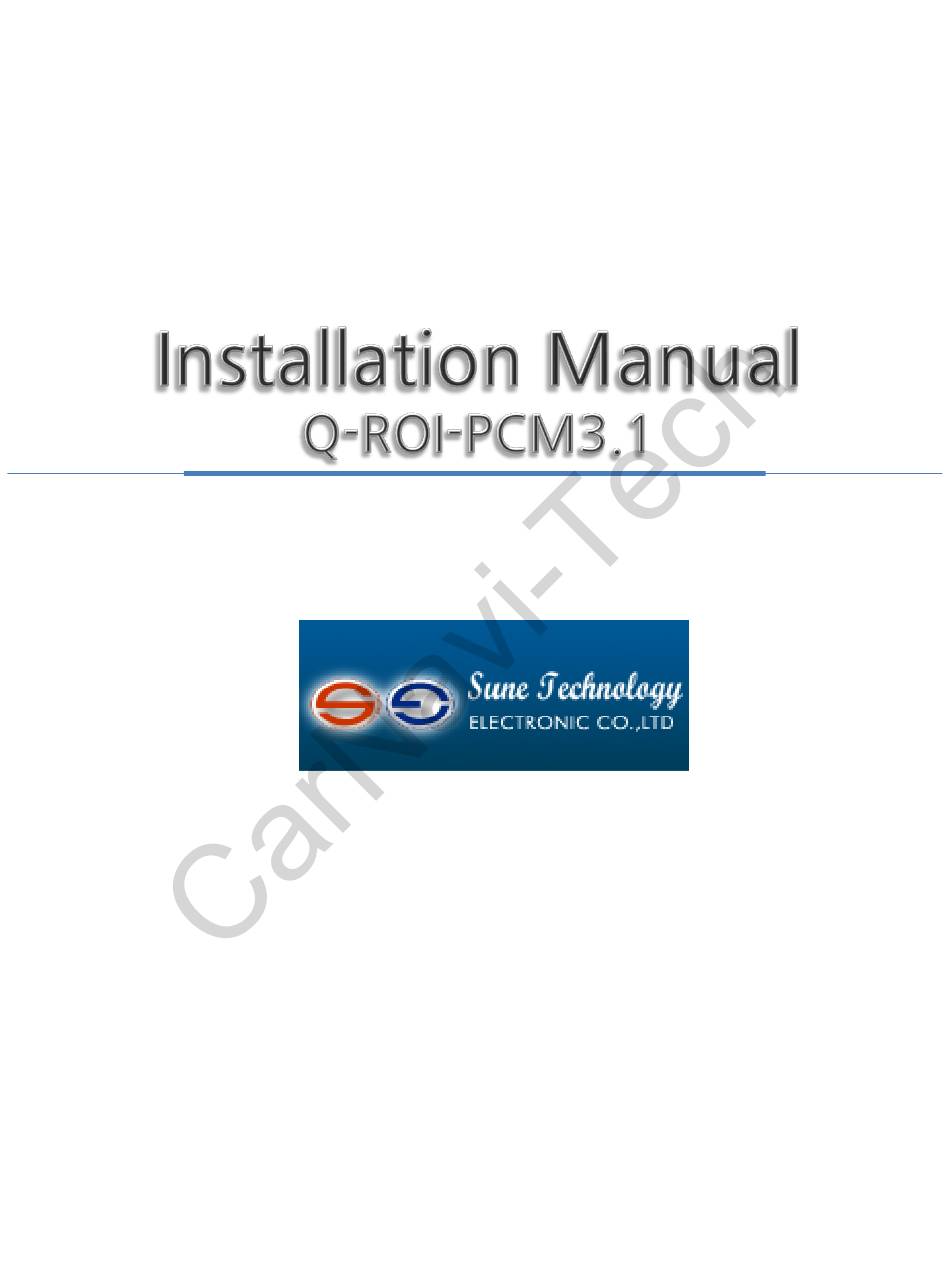

- Page 1 Your best partner for better driving SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
-
Page 2: Warning / Precautions
Warning / Precautions! Do not modify, dismantle or unintended operation this system outside Q-roi After Sales. Damage occurred by unintended operation may Warning cause Q-roi After Sales service void. Always wear seatbelt. When the vehicle is suddenly stop can cause injury. Warning ... -
Page 3: General Spec
1. General Spec Android 4.2.2 (Jelly Bean) Telechips TCC8930 (1GHz Cortex A9 DualCore) Display OEM LCD Internal Memory DDR3 1GB RAM + 8GB eMMC External Memory SDHC Slot Support (up to 64GB) A/V Input x 3, Rear Cam Input x 1, CAN(Controller Area Network) x 2, Function Mic x 1,... -
Page 4: System Diagram
2. System Diagram LCD Display eMMC LVDS USB Devices Flash USB HUB Transmitter - USB memory Memory - Hard Disc - Wifi dongle - BlueTooth dongle - 3G / LTE dongle - Other USB devices Touch DDR3 Screen Application Touch Image Scaler Controller Processor... - Page 5 3. Components SUB BOARD * 1EA WIFI dongle * 1ea (ETCETC0196) LVDS cable * 1EA FFC Cable*1ea (HLVDSC0039) (FFCABL0008) 30P FFC Cable*1ea (FFCABL0056) 4P FFC Cable * 1ea (FFCABL0033) POWER cable * 1EA 50P FFC Cable*1ea (HPOWER0045) (FFCABL0057) POWER cable * 1EA Multi cable * 1ea Touch cable * 1EA (HPOWER0055)
- Page 6 4. OEM Buttons Monitor ※ NAVI button Short press- mode switch ※ OPTION button Long press(5seconds)-RESET Steering Wheel ※ BACK button Long press(5seconds)- Mode switch Short press – OEM mode...
-
Page 7: Cautions Before Installation
5. Cautions before installation Ignition key should be taken off before starting installation, interface power connection must be the last step in installation. Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around installation ... - Page 8 6. Installation 6.1 Factory Menu ※ APPS→FACTORY SETTING ① Put Password and change program upgrade and set-up of external device. (Only Installers are authorized) ※ Please contact the manufacturer to get Password.
- Page 9 6. Installation 6.1 Factory Menu ⑥ ① ② ⑤ ③ ④ ① CAR MODEL : No use ② DVD TYPE : Only for DVD connected to A/V. (Connect IR-AV1 to DVD to use DVD as touch Screen.) ③ CMMB SELECT : Select DTV model (Only for China ) ④...
- Page 10 6. Installation 6.2 Installation Diagram <Back of Command> Speaker <OEM cable> <HPOWER0045> REAR CAM POWER TOGGLE cable <HPOWER0055> SD card ※ Remember to do map porting on SD card. Debug (No use)
- Page 11 6. Installation 6.4 Sub-board connection ① Disassemble the monitor and connect the touch cable from the back of LCD as shown on the left - OEM Gold touch cable → Supplied touch cable (HTOUCH0027) - Supplied FFC cable → Supplied touch cable (HTOUCH0027) (FFCABL0033) - Supplied black FFC cable →...
- Page 12 6. Installation 6.4 Sub-board connection ③ This shows another side of LCD Loosen 3 bolts which are marked on the left ④ Connect supplied FFC cable to marked place - Supplied 50P FFC cable → ① (FFCABL0057) - Supplied 30P FFC cable → ②...
- Page 13 6. Installation 6.4 Sub-board connection ⑤ place the bracket where bolts were loosen and tighten bolts again ⑥ On the top of bracket, place the subboard and connect the supplied FFC cables as shown on the left...
- Page 14 6. Installation 6.4 Sub-board connection ⑦ Pull the cables on the backside of LCD through the marked place. ⑧ Connect cables as shown on the left - Black FFC cable → LCD OUT - FFC cable → LCD IN...
-
Page 15: Quality Warranty
7. Quality Warranty This product has been tested and have passed under our strict quality control. If the failure occurred due to the carelessness of workmanship within one year after the purchase, we are responsible to repair free of charge. Please bring this warranty to dealer whom you purchased this product from at the repair time.
