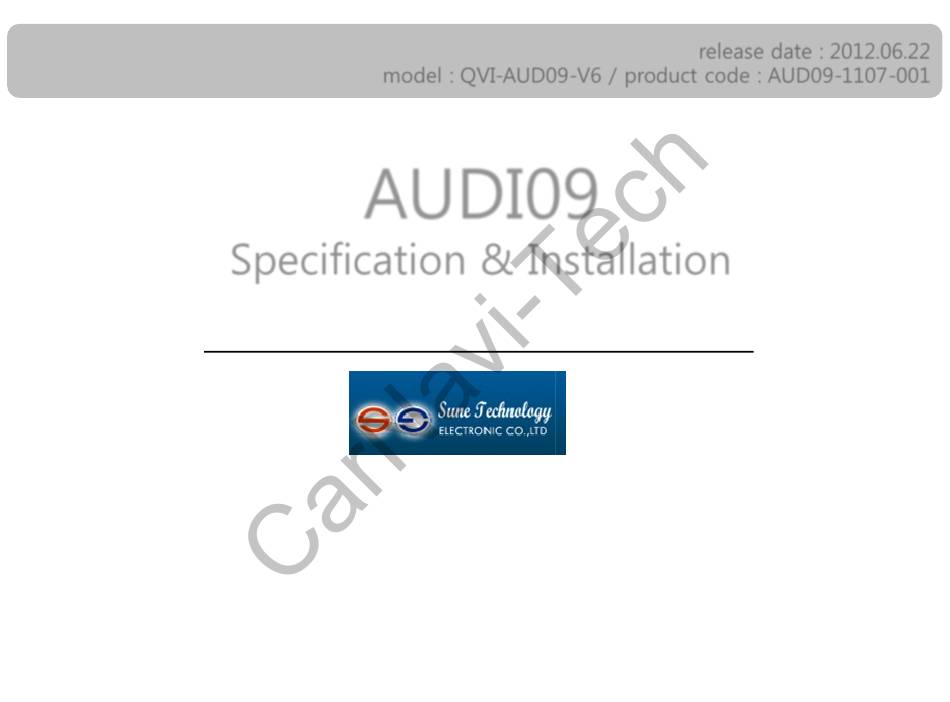

release date : 2012.06.22
model : QVI-AUD09-V6 / product code : AUD09-1107-001
AUDI09
Specification & Installation
Vehicles coming with 3G/3G+ MMI
SUNE TECHNOLOGY ELECTRONIC CO., LTD
No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan
Tel: +886-62292246 Fax:+886-62288104
Website http://www.sune-tech.com
Shop http://www.carnavi-tech.com
Skype : hsin_han99 or sune_tech
Your best partner for better driving
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sune Technology AUDI09
Summary of Contents for Sune Technology AUDI09
- Page 1 : 2012.06.22 model : QVI-AUD09-V6 / product code : AUD09-1107-001 AUDI09 Specification & Installation Vehicles coming with 3G/3G+ MMI SUNE TECHNOLOGY ELECTRONIC CO., LTD No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan Tel: +886-62292246 Fax:+886-62288104 Website http://www.sune-tech.com Shop http://www.carnavi-tech.com...
-
Page 2: Table Of Contents
Contents 1. Before installation 1.1 Main specification 1.2 Features 1.3 System diagram 1.4 Components 1.5 Exterior 2. SETUP 2.1 DIP switch 2.2 Remote control 2.3 Original buttons in car 2.4 OSD implementation 2.5 OSD (on screen display) 2.6 FACTORY mode 2.7 Rear view parking guide line 2.8 Touch calibration 2.9 Remote control button... -
Page 3: Main Specification
1.1 Main specification 1. Input Spec. (MULTI VIDEO INTERFACE) - 1 x Analog R, G, B, C sync - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 3 x A/V (NTST & PAL) Input. - 1 x LCD Input (Car system Input) 2. -
Page 4: Features
1.2 Features DVD, DTV and navigation control via touching screen DVD, DTV control via registering values of the buttons on the remote control (only for models including remote control) Installation from the direction of the command DVD, DTV, navigation control via MMI controller ... -
Page 5: System Diagram
1.3 System diagram Remote Control Switch for source toggle NVI Touch Input Controller Navigation Input A/V1 In/Out A/V2 VIDEO A/V3 CIRCUIT VIDEO MUX CVBS (Rear Camera) POWER CIRCUIT HEADREST TOUCH MONITOR NAVI DIP S/W Power Input (+10VDC~+16VDC) -
Page 6: Components
1.4 Components LCD cable * 1ea (HLCDCA0015) IR cable * 1ea TOUCH OUT cable * 1ea LVDS cable * 1ea (HIRCAB0002) (HTOUCH0004) (HLVDSC0014) MODE cable * 1ea (HARETC0001) RGB cable * 1ea (HNAVIC0004) TOUCH IN cable * 1ea (HTOUCH0007) AV cable * 1ea POWER cable (24P) * 1ea REAR CAMERA POWER cable * 1ea Remote control * 1ea... -
Page 7: Exterior
1.5 Exterior - SUB BOARD - ⑦ ⑥ ⑤ (47*38*22) ⑪ ⑩ Dimension Horizontal length 146mm ⑦ ⑥ ⑤ Vertical length 88mm Height 25mm ① LED ② POWER/CAN/RGB ③ Rear camera ④ AV(IN/OUT) ⑤ LVDS OUT ⑧ ⑨ ⑥ TOUCH OUT TO NAVI ①... -
Page 8: Dip Switch
DIP S/W selection ON : Skipping RGB Mode ※ DIP S/W usage RGB INPUT skip [AUDI09 6.5”] OFF : RGB Display - Input mode to intend to use ON : Skipping A/V 1 : A/V3(DVD), Navigation (RGB) A/V 1 skip... -
Page 9: Remote Control
2.2 Remote control Function POWER & PIP Not for use MENU OSD implementation Making a selection ▲ Move upward ▼ Move downward Move leftward, press 2 seconds long-Factory ◀ mode implementation Move rightward, press 2 seconds long-Factory ▶ Mode implementation-Factory mode Reset... -
Page 10: Original Buttons In Car
2.3 Original buttons in car ③ ⑩ ① ⑨ ⑧ ⑤ ④ ② ⑦ ⑥ NAVIGATION implementation DVD, CMMB implementation mode change unavailable so far ① move upward ⑤ confirm If there is the MODE handle button ② move downward ⑨... -
Page 11: Osd Implementation
2.4 OSD implementation OSD implementation - DVD To implement DVD OSD menu, installer must install DVD system on AV1 and connect “DVD IR” cable among navigation cables with remote sensor cable of DVD. First of all, if you touch the screen on mode ”AV1”, you can see the menu as shown left. -
Page 12: Osd (On Screen Display)
2.5 OSD (on screen display) OSD menu: Press ”MENU” button on the remote control. Analog RGB Analog RGB Analog RGB Video Video Video IMAGE UTIL - BRIGHTNESS - LANGUAGE : To change the language - FACTORY RESET : To reset all the - CONTRAST displaying on navigation, DVD, CMMB OSD values about navigation, DVD... -
Page 13: Factory Mode
2.6 Factory mode Factory mode: press ◀ button 2 seconds long. IMAGE - H-POSITION : Control over horizontal movement of screen - V-POSITION : Control over vertical movement of the screen - NAVI MODEL : DEFAULT, KD900(WVGA), MD7000(WVGA),MYVI(WVGA),PAPAGO(WVGA) - CAR MODEL : DEFAULT, 2011 A7,8-NEW - AVOUT SELECT : DEFAULT, AV1, AV2, AV3 PARK - PARK ENABLE : Setup of rear view parking guide line... -
Page 14: Rear View Parking Guide Line
2.7 Rear view parking guide line Factory mode: press ◀ button 2 seconds long. ① Register the value needed on the “PARK ENABLE” as “ON” in the PARK section as shown left. (default – ON) ② If you get rear gear after setup, parking guide line will appear on screen as shown left. -
Page 15: Touch Calibration
2.8 Touch calibration >>> ① First of all, press ◀ button on remote controller 2 ③ Then you can see “touch calibration” on seconds long. Then you can access to the FACTORY screen about 2 seconds long as shown above. mode. -
Page 16: Remote Control Button
2.9.1 Remote control button Registering value of remote control buttons? When you want to control DVD and DTV via touch screen (using OSD menu) with other models besides already registered option-SANYO and NECVOX, you can register value of DTV and DTV’ s remote control which you have. Then you can control DVD and DTV via touch screen. - Page 17 2.9.2 Remote control button >>> ③ After register, select “INPUT” in OSD menu and Instruction> continued… c. The values that you registered will appear as green press “OK”. Then you can see confirmation window as text in the marked area on pressing the button. And shown above.
-
Page 18: Dvd, Cmmb Model Selection
2.10 DVD, DTV model selection Factory Default : DVD TYPE – NECVOX/SANYO (For Chinese DVD) CMMB TYPE – ? (For Chinese DTV) CMMB TYPE DVD TYPE UTIL – DVD/DTV TYPE If DVD/DTV type that you want to use is not NECVOX or SANYO, you have to register values of the remote control that you want to use in the “IR MEMORY”... -
Page 19: Installation Diagram
3.1 Installation diagram Monitor Control Touch cable navigation Original LCD cable Touch screen Offered LCD cable DIP S/W TOUCH OUT LVDS TO NAVI TO SYS MONITOR VIDEO INTERFACE SUB BOARD TO I/F TOUCH POWER/CAN/RGB R-CAM A/V(IN/OUT) LVDS cable Offered Touch In cable REAR AUX-ON... -
Page 20: Cautions On Installation
3.2 Cautions on installation Ignition key should be taken off before starting installation, interface power connection must be the last step in installation. Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around installation place. ... -
Page 21: Installation
3.3 Installation 3.3.1 Separating monitor, connecting LVDS-IN cable and LCD cable Rear view of monitor Rear view of command ① Here are pictures of the rear view of ② Connect the original LCD cable to “TO MONITOR” of the the disassembled monitor and sub-board after disconnecting it from the command. - Page 22 3.3 Installation 3.3.2 Connecting touch screen cable and navigation touch cable Plug & Play type for TOUCH OUT cable navigation ② Connect the TOUCH OUT cable enclosed in our package to “TOUCH OUT TO NAVI” of the interface. Then connect the opposite end of it to the touch cable of navigation system.
-
Page 23: Using Original Navigation Button
3.4 Using original navigation button When you use the mode change function via original navigation button, you have to connect 16pin as shown below. - Case of A8 - Find a bunch of cables connecting DVD box from the passenger seat. And connect the white one among the cables with MMI cable of POWER cable enclosed in our package. -
Page 24: Connecting Can Cable
3.5 Connecting CAN cable If you connect the CAN cable in models including ”MODE” handle button, you can change modes via “MODE” button. Find the red connector from the passenger seat. After disassembling it, connect the CAN(H), CAN(L) enclosed in our package to the original CAN cable respectively. PIN No.15 : CAN High PIN No. -
Page 25: Troubleshooting
4. Troubleshooting Q. I can not switch A/V sources. A. Check IR or Ground cable connection. Check LED lamps in the interface, if it is not on, check power cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV sources connected works well.) Check interface connection has been done well.
