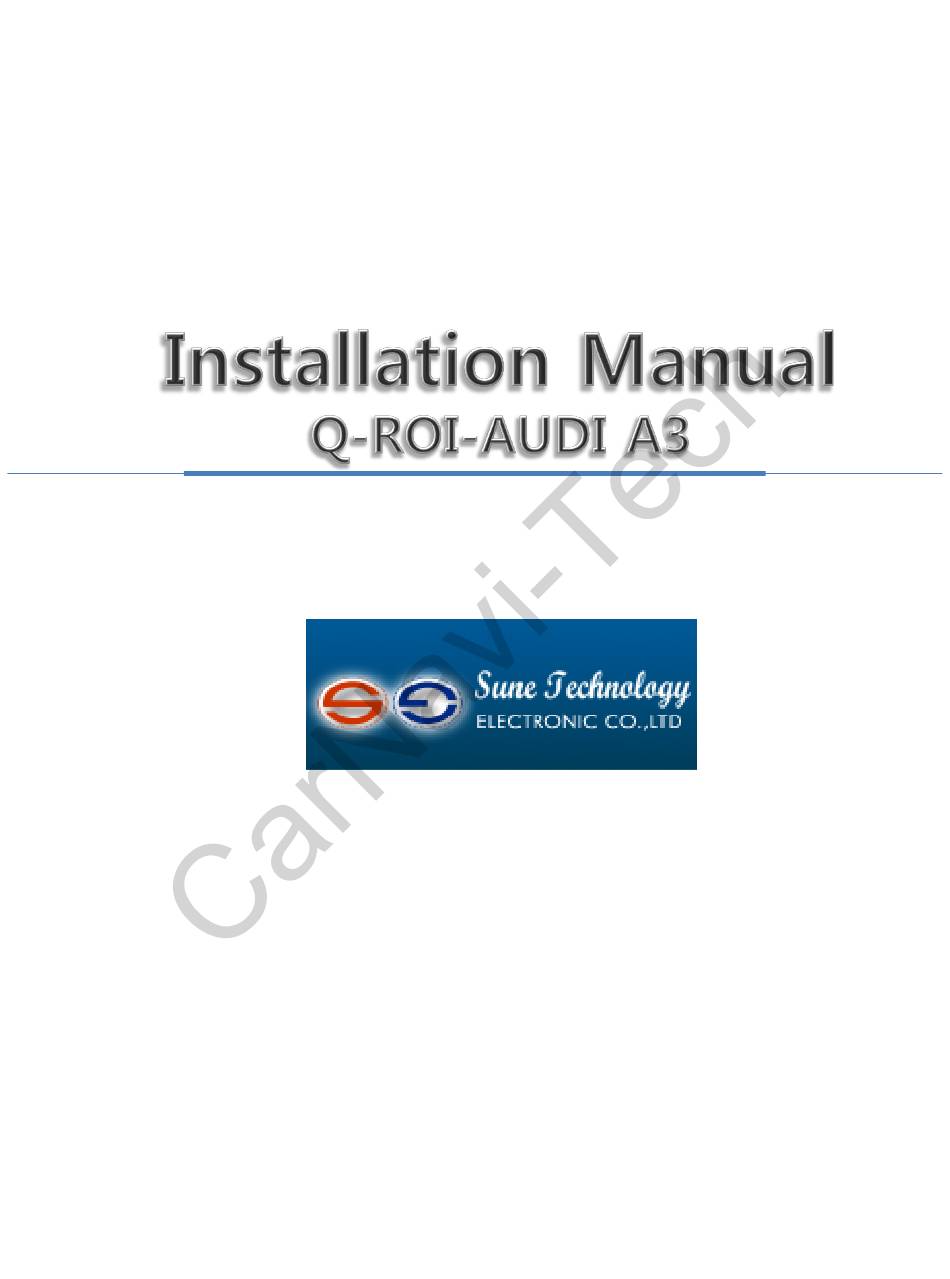

- Page 1 Your best partner for better driving SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
-
Page 2: Warning / Precautions
Warning / Precautions! Do not modify, dismantle or unintended operation this system outside Q-ROI After Sales. Damage occurred by unintended operation Warning may cause Q-ROI After Sales service void. Always wear seatbelt. When the vehicle is suddenly stop can cause injury. Warning ... -
Page 3: General Spec
1. General Spec Android 4.2.2 (Jelly Bean) Telechips TCC8930 (1GHz Cortex A9 DualCore) Display OEM LCD Internal Memory DDR3 1GB RAM + 8GB eMMC External Memory SDHC Slot Support (up to 64GB) A/V Input x 3, Rear Cam Input x 1, CAN(Controller Area Network) x 2, Function Mic x 1,... -
Page 4: System Diagram
2. System Diagram LCD Display eMMC LVDS USB Devices Flash USB HUB Transmitter - USB memory Memory - Hard Disc - Wifi dongle - BlueTooth dongle - 3G / LTE dongle - Other USB devices Touch DDR3 Screen Application Touch Image Scaler Controller Processor... - Page 5 3. Components 3G dongle * 1ea(Option) (ETCETC0116) USB cable * 2ea (HARETC0027) LVDS cable* 1ea (HALVDSC0024) WIFI dongle * 1ea(Option) (ETCETC0110) Power cable 16P * 1ea (HPOWER0041) GPS Antenna * 1ea (GPSANT0006) AV/BT Cable * 1ea (HAVCAB0020) MODE switch cable* 1ea (HARETC0001) SD extension cable* 1ea Multi cable * 1ea...
- Page 6 3. Components Finished material * 1ea (MOLDIF0176) LCD * 1ea Touch Panel * 1ea (LCDPAN0009) OEM board case * 6ea (PRESET0182) Screw * 6ea FMNT board * 1ea Screw * 6ea...
-
Page 7: Original Button Usage
Original Button Usage 4.1 Dynamic_5.8inch, 7inch ※ MMI button ※ Switch to OEM : Short Press NAV button ※ Q-ROI RESET Long press BACK button ※Buttons of switching to OEM : Short Press RADIO, MEDIA, BACK, MENU, TEL ※ Steering wheel button ※... - Page 8 Original Button Usage 4.2 Entry_5.8inch ※ MMI Button ※ Switch to OEM : Short Press TONE button ※ Q-ROI RESET Long press BACK button ※Buttons of switching to OEM : Short Press RADIO, MEDIA, BACK, MENU, CAR ※ Steering wheel Button ※...
-
Page 9: Cautions Before Installation
5. Cautions before Installation Ignition key should be taken off before starting installation, interface power connection must be the last step in installation. Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around ... -
Page 10: Installation
6. Installation 6.1 Dip Switch (Main board)) Dip Switch Car model : Dynamic_5.8inch : Entry_5.8inch : Dynamic_7inch : Dynamic_5.8inch (CD Changer : Continental model) : Entry_5.8inch (CD Changer : Continental model) ※ Set up Dip switch #8 ON : Car with OEM Navigation ※... - Page 11 6. Installation 6.2 Factory Menu ※ APPS→FACTORY SETTING ① Put Password and change program upgrade and set-up of external device. (Only Installers are authorized) ※ Please contact the manufacturer to get Password.
- Page 12 6. Installation 6.2 Factory Menu ④ ① ② ③ ① CAR MODEL : No use ② DVD TYPE : Only for DVD connected to A/V (Connect IR-AV1 to DVD to use DVD as touch Screen) ③ CMMB SELECT : Select DTV model ( Only Chinese) ④...
- Page 13 6. Installation 6.3 Installation Diagram Radio System ※ Take away LCD cable from OEM LCD board and Connect to Supplied FMNT board. Speaker FMNT board SAFE FRONT CAN1-H REAR CAN2-H CAN1-L OEM LCD Cable CAN2-L AUX-ON AUX-GND REAR CAM A OUT(L) A OUT(R) LVDS Cable POWER...
- Page 14 7. Installation 7.1 Replace LCD ① Dismantle the OEM monitor and loosen the volts. ② Take away the plastic molding part and loosen the volts.
- Page 15 7. Installation 7.1 Replace LCD ① Take away Original LCD with a tool. ② Refer to above photos.
- Page 16 7. Installation 7.1 Replace LCD ① Assemble LCD and Fasten with supplied volts. ※ Pull the FPC cable of LCD under the bracket.
- Page 17 7. Installation 7.1 Replace LCD ① Assemble separated plastic molding part.
- Page 18 7. Installation 7.1 Replace LCD ① Attach supplied touch screen. (Refer to above photos)
- Page 19 7. Installation 7.1 Replace LCD ① Assemble original bracket and put the FPC cable and touch cable under the bracket. (Refer to photos).
- Page 20 7. Installation 7.1 Replace LCD ① Connect the FPC cable to Sub-board. Connect the Touch cable to opposite side of sub-board.
- Page 21 7. Installation 7.1 Replace LCD ① In case the touch cable is too long, you can fold the cable with a tape (Refer to above photos) ② Reassemble bracket located under the monitor.
- Page 22 7. Installation 7.1 Replace LCD ① After Assembly, you will be able to see two connectors. ② Connect the left side round connector to original LCD Cable and Connect the square connector to supplied LVDS cable. ※ Connect OEM cables to OEM board and put OEM board into supplied metal case to keep.
- Page 23 8. Installation 8.1 Connection of CAN Wires You will be able to find OEM CAN Wires behind Glove Compartment. Connect CAN-High(Orange + Purple) to supplied CAN1-H(Yellow + White) Connect CAN-Low(Orange + Brown) to supplied CAN1-L(Yellow) Connect CAN-High(Orange + Black) to supplied CAN2-H(Black + White) Connect CAN-Low(Orange + Brown) to supplied CAN2-L(Black)
- Page 24 8. Installation 8.2 Cautions during connecting LVDS cable-1 ※ It is required to connect GND extension cable on the case of main Interface or sub-board (Proper connection of GND extension (Proper connection of GND extension cable on main interface) cable on sub-board) # Why : (1) Maintain stable internal signal (2) Prevent EMI(Electro Magnetic Interference) (3) Stabilization of Current supply...
- Page 25 8. Installation 8.2 Cautions during connecting LVDS cable-2 ① Screw the black braid shield cable with a volt when you connect LVDS cable to the monitor ② Tighten the black braid shield cable with a cable tie on the monitor. It is required to tighten the length of the black braid shield cable and make its length shorter than LVDS cable so that LVDS cable is secured while the monitor is shaken.
- Page 26 MEMO...
-
Page 27: Quality Warranty
9. Quality Warranty This product has been tested and have passed under our strict quality control. If the failure occurred due to the carelessness of workmanship within one year after the purchase, we are responsible to repair free of charge. Please bring this warranty to dealer whom you purchased this product from at the repair time.
