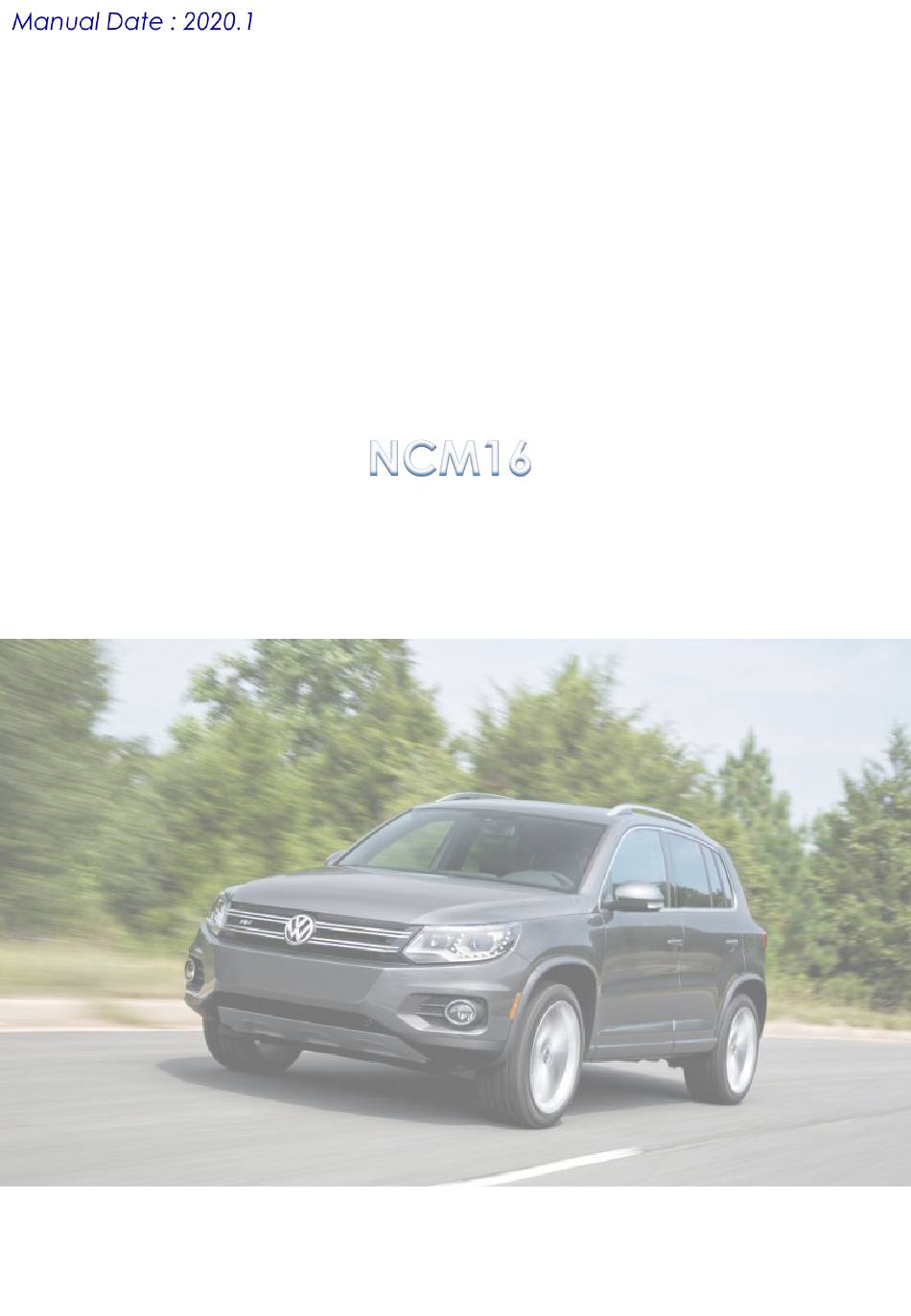

- Page 1 Installation Manual Multimedia Interface for VW TIGUAN 2016...
- Page 2 Compatibility: VW TIGUAN 2016~ Components: Interface Main*1 Sub Board*1 Interface Input / Output specification : Input: LCD INPUT(CAR SYSTEM)*1 LVDS IN(NAVIGATION, CARPLAY)*1 CVBS(Front Camera)*1 CVBS(Rear Camera)*1 Output: LCD OUTPUT(CAR SYSTEM)*1 Power Spec: Input Power: 8VDC ~ 18VDC Consumption: 3.5WATT Switch input mode: External video sources skip function: Able to control input videos on and off via Dip switches Able to switch videos via the remote, button switch and original OEM button...
- Page 3 Main Board Power Cable QLI J BY J cable LVDS Cable QCPASS1411 HPOWER0247 HPOWER0248 HLVDSC0069 Sub Board NCM16 Touch Cable FPC Cable Support Bracket QCPASS1411 HTOUCH0051 FPCABL0017 PRESET0351 UART T/S OUT Cable Button Cable Remote Controller IR Cable HTOUCH0015 HARETC0001...
- Page 4 ON: DOWN / OFF: UP * Please make sure to disconnect the power cable of interface and reconnect to apply dip switch setting whenever changing DIP switch. 8POL DIP SWITCH SETTING DIP S/W STATUS DESCRIPTION LVDS Navigation Mode DIP1 LVDS Navigation Mode Skip Ext.
- Page 5 FUNCTION POWER & PIP MENU Activating OSD menu Making a selection, changing image display ▲ Moving upward ▼ Moving downward Moving leftward ◀ (If you press this button 2 seconds long, you can access the factory mode) Moving rightward ▶ (If you press this button 2 seconds long, you can reset all the data about user environment)
- Page 6 Menu of FACTORY IMAGE IMAGE H-POSITION PARK V-POSITION H-POSITION/V-POSITION Setting UTIL1 UTIL2 INFO MENU to Return SEL to Select/Save Menu of FACTORY IMAGE PAS TYPE PARK PAS SETUP UTIL1 REAR TYPE UTIL2 RADAR ENABLE INFO AUTO FCAM TIME MENU to Return SEL to Select/Save PARK PAS TYPE: Select parking line type.
- Page 7 Menu of FACTORY UTIL1 IMAGE LVDS MODEL PARK CAR MODEL LVDS MODEL: Android, car-play, navigation model UTIL1 UTIL2 setting INFO CAR MODEL: Select the car model MENU to Return SEL to Select/Save UTIL2 Menu of FACTORY IMAGE HANDLE BUTTON HANDLE BUTTON: Select the usage of handle button PARK FACTORY RESET UTIL1...
- Page 8 * Press high lighted OEM button for 3 seconds long to mode switch. Other button short press for return to OEM mode. TIGUAN TIGUAN Handle button...
- Page 9 * Please refer to next page for sub-board, touch cable and LVDS cable connection supplied LVDS cable UART Touch Cable Pin assignment * Please refer to next page for power/CAN connection Power/CAN in/out Rear camera input *1 Front camera input *1 CARPLAY...
- Page 10 1. Please find this bunch of connector behind the HU. 2. Disassemble the OEM Grey connector from the above connector. And connect it to QDIS J by J cable. 3. Please plug QDIS J by J cable to OEM Harness. QLI J BY J cable HPOWER0248 ❷...
- Page 11 ① ② Disconnect marked original FPC cable at the Disassemble the monitor back side of monitor and connect original FPC to the “TO LCD” of supplied FPC cable ③ ④ Remove ❶ ❷ ❸ Solder above two points for the sake of using Connect the other side of provided FPC cable to OEM touch screen in external mode where the original FPC cable disconnected...
- Page 12 Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.
- Page 13 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX: +88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99 Copyright ⓒ 2019 by SUNE TECHNOLOGY...
