- Page 1 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
- Page 2 •Specification Car Compatibility : New S-Class(W222), New C-Class(W205) New CLA Class, New GLE Class Components : Interface* 1ea, Sub-board*1ea Multimedia interface Input/output spec Input : HDMI*2, Analog RGB*1, A/V*1, CVBS(Rear view Camera)*1, CVBS(Front camera)*1 Output : To LCD*1 Power spec Input power : 8VDC ~ 18VDC Consumption : 5WATT Switch input mode...

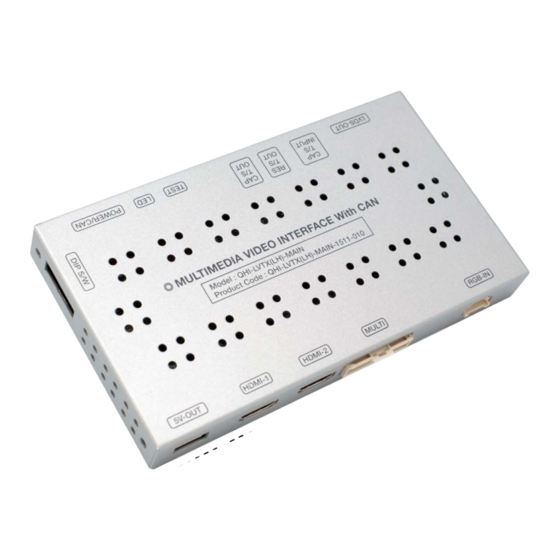

- Page 3 •Product exterior Length-90mm Height-18mm Width-140mm 5V-OUT(Power supply for Mirroring device) | HDMI-1 | HDMI-2 | MULTI | RGB-IN(RGB Navigation input) LVDS-OUT(Connection to Sub-board) | CAP T/S INPUT(Original touch cable connection) | RES T/S OUT(NOT FOR USE) | CAP T/S OUT(TOUCH CABLE CONNECTION-ONLY ITS PRODUCT) | TEST(NOT FOR USE) | LED | POWER/CAN(Power / CAN connection) | DIP S/W(DIP switch setting) •Components LVDS * 1ea...
-
Page 4: Dip Switch
•DIP SWITCH ※ ON : DOWN / OFF : UP FUNCTION Dip S/W SETTING OFF : RGB DISPLAY RGB INPUT MUTE ON : Skipping RGB Mode OFF : HDMI1 DISPALY HDMI1 MODE MUTE ON : Skipping HDMI1 Mode OFF : AV DISPLAY AV MODE MUTE ON : Skipping AV Mode OFF : Front camera function on... - Page 5 •Factory setting Adjust a current screen position and size. H-POSITION : Move display horizontally V-POSITION : Move display vertically Adjust rear view camera setting. PAS TYPE : Select type of parking guide line - NOT USED : No use parking guide line - PAS ON : Selecting Dynamic parking guide line - PAS OFF : Selecting fixed parking guide line PAS SETUP : Adjusting the position of the parking guide line...
- Page 6 •Factory setting Navigation & Car model setting up NAVI MODEL : Setting up RGB Navigation. (Default, Q-roi RGB, WP9230, HDMI(WVGA)) HDMI MODEL : Setting up HDMI1 Navigation. (Q-roi RGB, WP9230) CAR MODEL : Selecting the car model for PAS settings. ※When Dip switch #8 is On HDMI2 SKIP : Skipping HDMI mode...
- Page 7 •How to use OEM buttons Long Press : Mode switch Short Press : OEM mode IR REMOTE ↑↓ : Remote button move ← : Remote button choice <New S-Class Jog shuttle> Long Press : Mode switch Short Press : OEM mode IR REMOTE ↑↓...
- Page 8 • Installation Diagram HDMI NAVI BOX NAVI BOX CAN1-H CAN1-L CAN2-H CAN2-L LVDS Cable NAVI BOX Mirroring Device HDMI NAVI BOX ※ HDMI NAVI must be connected to HDMI-1. • CAN Installation ※ In case of connecting Gear CAN Only ※...
- Page 9 •CAN Installation ※ In case of connecting both Gear CAN&Button CAN, find CAN IN/OUT cables - Disassemble the gear exterior part and find the cables inside which are connected to command Find the connector Remove the black Disassemble the black plastic behind the command.
-
Page 10: Troubleshooting
•Trouble shooting Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.
