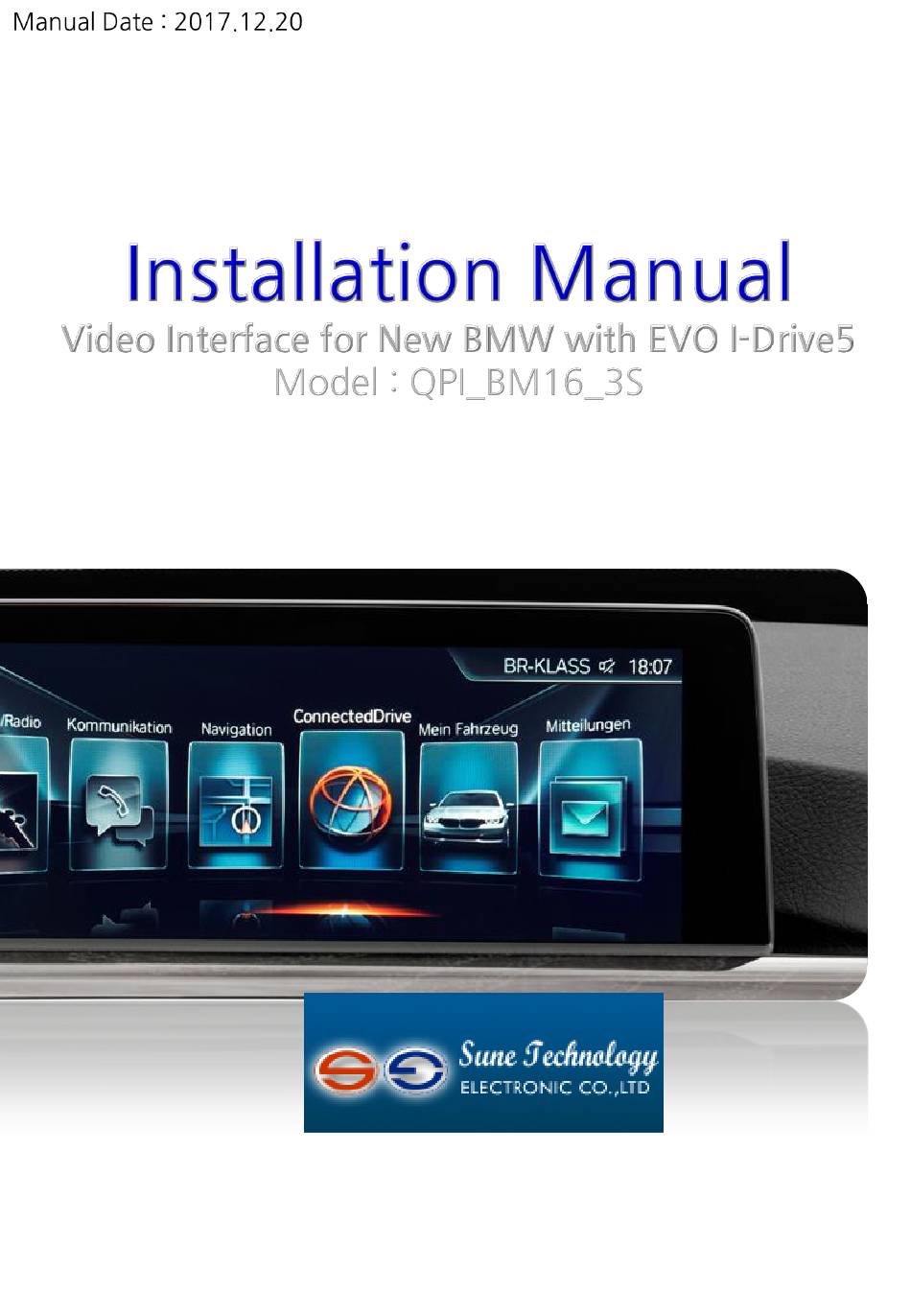

- Page 1 SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
- Page 2 •Specification Car Compatibility : 2017 BMW CAR with Evo I-Drive5 1,2,3,4,5,6,7 Series, Mini, X3, X4, X5 6.5”, 8.8”, 10.2” ※ The Monitor equipped with OEM touch is not supported Components : interface* 1ea Multimedia interface Input/output spec Input : Analog RGB*1, A/V*3, CVBS(Rear camera)*1 CVBS(Front camera)*1 Output : To LCD*1 Power spec...

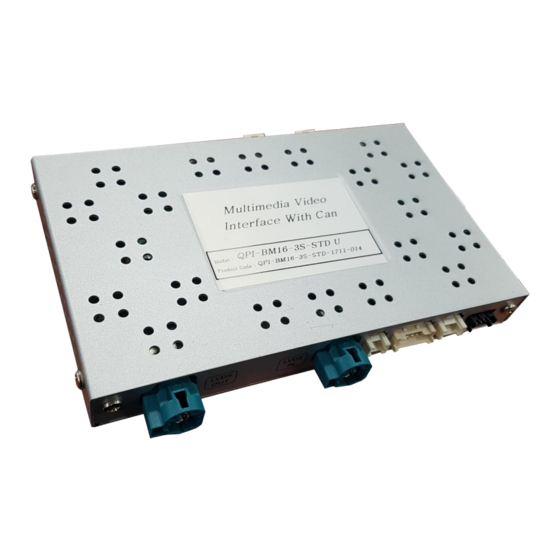

- Page 3 • Product Exterior •Components RGB * 1ea POWER * 1ea LCD* 1ea A/V * 1ea (HPOWER0175) (HLCDCA0049) (HRGBCA0013) (HAVCAB0056) MULTI * 1ea BUTTON * 1ea IR * 1ea Remote * 1ea MT option * 1ea (HARETC0229) (HARETC0001) (HIRCAB0002) (REMOTE0001) (HARETC0233)
- Page 4 •DIP SWITCH ※ ON : DOWN / OFF : UP Function Dip S/W OFF : RGB mode display RGB mode ON : RGB mode skip OFF : AV1 mode display AV1 mode ON : AV1 mode skip OFF : AV2 mode display AV2 mode ON : AV2 mode skip OFF : AV3 mode display...
- Page 5 •Factory setting Adjust a current screen position and size. Menu of FACTORY IMAGE H-POSITION H-POSITION : Move display horizontally PARK V-POSITION UTIL1 H-SIZE(NAVI) V-POSITION : Move display vertically UTIL2 H-SIZE(NAVI) : Adjust the image of navigation INFO horizontally MENU to Return SEL to Select/Save Adjust rear view camera setting.
-
Page 6: System Version Information
•Factory setting Navigation & Car model setting up. Menu of FACTORY IMAGE CAR MODEL CAR MODEL : F20 PARK AVOUT SELECT UTIL1 FACTORY RESET AVOUT SELECT : Selecting background sound UTIL2 via car AUX INFO FCAM FUNC : FCAM_OFF : A shift in gear : P→R→D MENU to Return SEL to Select/Save The image which was shown during... - Page 7 •OEM button ※ Able to switch the mode or activate the function by OEM button <I-Drive> <Steering wheel> <Memory Button> Function Section Button Operation VOICE Short press Mode switch Steering Wheel up Short press Multimedia Channel UP Wheel Wheel Down Short press Multimedia Channel DOWN Memory...
- Page 8 •A/V mode PIP Able to display OEM&AV image together in A/V mode - Setting : Push I-Drive south for a long time to activate PIP mode ※ Image order : Full AV mode → PIP image<1> → PIP image<2> Display Full AV mode Full AV mode Display AV&OEM mode together AV image is bigger than OEM...
- Page 9 •Installation Diagram Button Rear Lamp connection MULTI A/V CABLE M/T CABLE CABLE RGB CABLE DIP S/W RGB-IN MULTI POWER NAVIGATION T/S OUT T/S-IN LVDS OUT LVDS IN (NAVI) T/S-IN (LCD) •CAN connection ※ Detach OEM cable from I-Drive and OEM cable connect it to the supplied power cable Supplied powercable...
- Page 10 •LVDS IN/OUT Connection ※ Remove OEM LCD cable from the monitor behind and connect it to LVDS IN of the interface. The supplied LCD cable shall be connected between the monitor behind and LVDS OUT of the interface. Supplied LCD cable OEM LCD cable...
