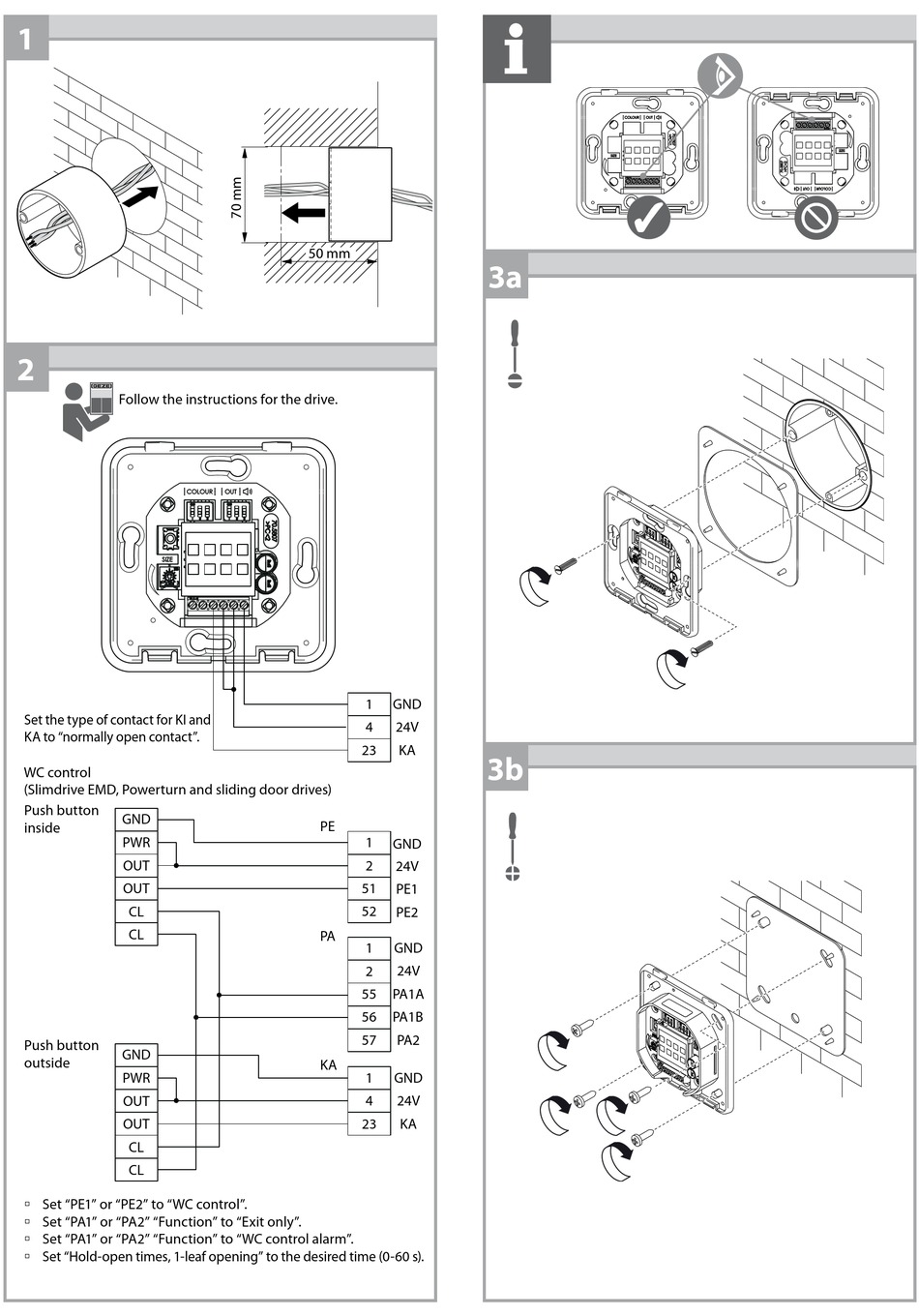

GEZE GC 307+ Quick Start Manual page 2

1
2
Follow the instructions for the drive.
Set the type of contact for KI and
KA to "normally open contact".
WC control
(Slimdrive EMD, Powerturn and sliding door drives)
Push button
GND
inside
PWR
OUT
OUT
CL
CL
Push button
GND
outside
PWR
OUT
OUT
CL
CL
à Set "PE1" or "PE2" to "WC control".
à Set "PA1" or "PA2" "Function" to "Exit only".
à Set "PA1" or "PA2" "Function" to "WC control alarm".
à Set "Hold-open times, 1-leaf opening" to the desired time (0-60 s).
50 mm
1 GND
4 24V
23 KA
PE
1
GND
2
24V
51 PE1
52
PE2
PA
1 GND
2 24V
55 PA1A
56 PA1B
57 PA2
KA
1 GND
4 24V
23 KA
3a
3b
2
