- Page 1 GC 308 R EN Installation instructions 203846-00 47.0639 / V4 - 11.2022...
-
Page 2: Table Of Contents
GC 308 R Translation of the original operating instructions for device version 0100 Contents Product liability ....................3 Safety ......................3 Intended use........................3 Safety notes ........................3 Safety-conscious working ....................4 Environmentally conscious working ................4 Description ....................5 Scope of delivery .......................5 Work to be done before installation ..........6 Installing the drive ......................6... -
Page 3: Product Liability
Safety 1. 1 Intended use The movement detector GC 308 R may only be used for the activation of automatic sliding, curved sliding, folding, swing or revolving doors with GEZE drives. (in the GC 308 R... -
Page 4: Safety-Conscious Working
Safety GC 308 R à ASR A1.7 “Doors and gates” à DIN 18650 “Building hardware – Powered pedestrian doors” à DIN EN 16005 “Power operated pedestrian doorsets – Safety in use – Requirements and test methods” à Accident-prevention regulations, especially BGV A1 “General regula- tions”... -

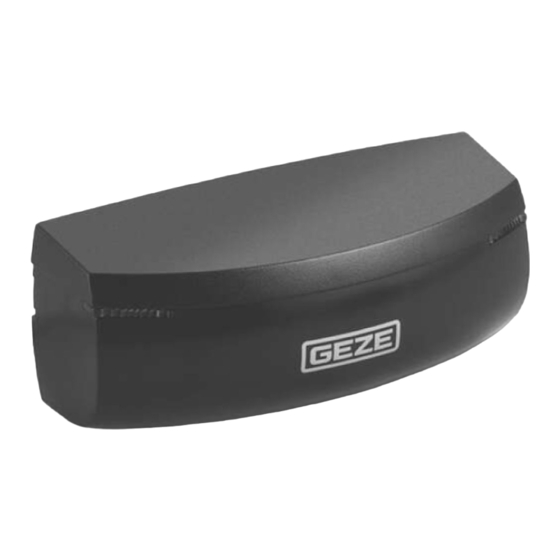

Page 5: Description
GC 308 R Description Description The GC 308 R radar sensor has been designed for use as an opening pulse generator on automatic doors. Due to the Doppler effect, the sensor detects movements, whereby a distinction is made between approach and distance to the detector. -
Page 6: Work To Be Done Before Installation
Make sure that the cover of the drive is fitted correctly and earthed. Positioning the sensor The GC 308 R is used as an activation sensor for automatic doors. à The sensor must be mounted above the door in the case of sliding, curved sliding, folding and revolving doors. -
Page 7: Installation
GC 308 R Installation Installation Avoid extreme vibrations. Do not cover the sensor. Keep away from fluorescent lamps. Keep away from moving objects. 4. 1 Installation without accessories Remove the rear panel. Glue the sensor drilling template in place, drill holes for cables and screws. - Page 8 Work to be done before installation GC 308 R Ä click...
-
Page 9: Installation With Ceiling Installation Kit
GC 308 R Installation Installation with ceiling installation kit Ä... - Page 10 Installation GC 308 R click...
-
Page 11: Installation With Rain Cover
GC 308 R Installation Installation with rain cover... -
Page 12: Cabling
GC 308 R Cabling Note the wiring diagrams for the drives. On activation, the output of the GC 308 R is closed (24 V applied to the Kx input). Set the type of contact for KI and KA to “normally open contact”. -
Page 13: Settings
GC 308 R Settings Settings Use the remote control and/or push button to configure the sensor. Select one of the following presets: Standard: Standard inside and outside installations Difficult environments: " Difficult installations due to environment or weather Optimised cross-traffic fade-out: §... -
Page 14: Setting Area Size
Settings GC 308 R Setting area size Changing area shape ...S, wide or narrow long save by press violet green violet long (2s) press (2s) Changing immunity increase reduce long save by press yellow green yellow long (2s) press (2s) -
Page 15: Fault Messages And Troubleshooting
GC 308 R Fault messages and troubleshooting Fault messages and troubleshooting Display Effect Cause Elimination LED grey The door The power supply Check cabling and voltage of remains is off. the power supply. closed. The door controller Set the door controller... - Page 16 Fault messages and troubleshooting GC 308 R Display Effect Cause Elimination LED red The LED The sensor requires Enter the access code. flashes an access code for Forgotten the access code? quickly unlocking. Switch the power supply off following and on to unlock the sensor.
-
Page 17: Technical Data
GC 308 R Technical data Technical data Technology Microwaves Transmission frequency 24.150 GHz Transmission power < 20 dBm EIRP Density of transmission power < 5 mW/cm Detection mode Movement Min. detection speed 5 cm/s Power supply 12 V to 24 V AC ±10 %; 12 V to 24 V DC +30 % / –10 %... -
Page 18: Accessories / Spare Parts
Accessories / spare parts GC 308 R Accessories / spare parts Material no. Remote control 100061 203607 (black) Ceiling installation kit 203608 (white) Weather hood 203610 (black) Installation bracket 203609 Retrofit interface 203627 203622 (black) 203623 (white) Replacement hoods 203624 (stainless steel) - Page 19 GC 308 R...
- Page 20 Germany China Romania GEZE GmbH GEZE Industries (Tianjin) Co., Ltd. GEZE Romania S.R.L. Niederlassung Süd-West E-Mail: chinasales@geze.com.cn E-Mail: office-romania@geze.com Tel. +49 (0) 7152 203 594 www.geze.com.cn www.geze.ro E-Mail: leonberg.de@geze.com Russia GEZE Industries (Tianjin) Co., Ltd. GEZE GmbH Branch Office Shanghai OOO GEZE RUS Niederlassung Süd-Ost...
