GC 342+
SAFETY SENSOR
FOR AUTOMATIC SWING DOORS
User's Guide for software version SW 0100 and higher
(refer to tracking label on product)
198709-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC 342+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEZE GC 342+

Summary of Contents for GEZE GC 342+

  • Page 1 GC 342+ SAFETY SENSOR FOR AUTOMATIC SWING DOORS User’s Guide for software version SW 0100 and higher (refer to tracking label on product) 198709-00...

  • Page 2: Installation Tips

    INSTALLATION TIPS Avoid vibrations. Avoid moving objects Do not cover and light sources in the laser window. the detection field. Avoid exposure to Keep the sensor permanently Avoid the presence Avoid condensation. sudden and extreme powered in environments of smoke and fog in where the temperature can temperature changes.

  • Page 3: Led Signals

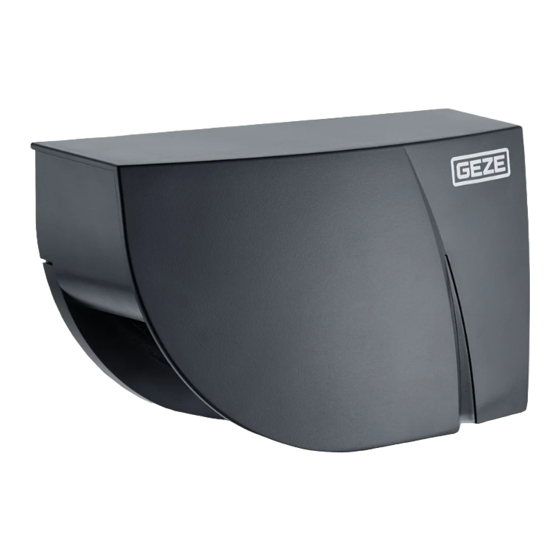

    DESCRIPTION GC 342+ is a safety sensor for automatic swing doors based on laser technology. It secures the moving door wing as well as the hinge area. To do so, a module must be installed in the upper corner of the door wing on both sides of the door. cover plug 13.
  • Page 4 FOREWORD The GC 342+ can be paired with another GC 342+ or a GC 342. The installation steps are identical for both product versions. For optimum safety and to access all features (e.g. opening functions), the GC 342+ must be connected to the door controller.
  • Page 5 Using a wire cutter, remove the positioning aids from Fasten the 3 screws using a Pozidrive screwdriver. the base. The base needs to be fixed firmly! Ø 10 mm Take the MAIN-SECONDARY cable and pass it through Drill through the 2 bases and the door using a 10 mm the hole.
  • Page 6 WIRING TO DOOR CONTROLLER We recommend connecting a GC 342+ to the door controller. Take the flexible tube and determine how long it Cut the surplus to avoid undesired detections caused should be in order to reach the door controller. by the flexible tube.

  • Page 7: Wiring : Cables

    WIRING : CABLES GC 342 60 mA 24 V 24 V Test YE/BK - Set contact type KI or KA to "normally open "*. WH/BK - Set the contact type for SIS 1 or SIS 2 to 24 V 24 V GC 342+ "normally closed".

  • Page 8: Testing And Adjusting

    TEACH-IN Before launching a teach-in, make sure that: - glass surfaces near the door are covered - the door controller is set up first - the door is closed (use the service mode if needed, see above) - the door controller is connected to all relay outputs and is fully reacting to them - the MAIN-SECONDARY cable is connected between the modules - the detection field is free of snow buildups, heavy rain, snowfall, fog or other objects or people To launch a teach-in, press the push button of the MAIN* module briefly.
  • Page 9 VIRTUAL OPENING BUTTONS If needed, you can add virtual opening buttons (max. 2) in the second curtain. They can be used as activation zones to open the door manually, and can also be placed outside of the safety zones. To operate, the GC 342+ must be connected to the door controller with the cable provided (10 strands).
  • Page 10 DIP-SWITCH SETTINGS (OPTIONAL) In order to adapt these parameters by remote control, set the corresponding DIP switch to ON. 1 2 3 4 Switch to CRITICAL when external disturbances DIP 2 ENVIRONMENT standard critical are likely to cause unwanted detections (min.

  • Page 11: Output Configuration

    OUTPUT Always enter 3 digits for output parameters: - 1st digit refers to the Output 1 (R1) CONFIGURATION - 2nd digit refers to the Output 2 (R2) - 3rd digit refers to the Output 3 (R3) NO POWER (Normally open) NO DETECTION (Normally closed) DETECTION...

  • Page 12: How To Use The Remote Control

    HOW TO USE THE REMOTE CONTROL After unlocking, the red If the red LED flashes quickly after unlocking, you To end an adjustment session, LED flashes and the sensor need to enter an access code from 1 to 4 digits. always lock the sensor.
  • Page 13 DETECTION FIELDS DOOR WING SAFETY HINGE ZONE SAFETY UNCOVERED ZONE Adjustable by remote control factory value: 10 cm...

  • Page 14: Service Mode

    SERVICE MODE The service mode deactivates the door safety during 15 minutes and can be useful during an installation, a mechanical teach-in of the door or maintenance work. To enter the service mode, push on the button for > 3 seconds. When the sensor is in service mode, the LED is off.
  • Page 15 (step 3 of teach-in). Permanent faulty Launch a new teach-in (closed door). measurements of door If orange LED flashes again, contact GEZE. position. The ORANGE LED flashes Sporadic faulty Clear field and wait until the door closes.

  • Page 16: Technical Specifications
