Xtool A30D User Manual page 25

Live Data
This function displays the real-time parameters of the ECU, take the engine as an
example, parameters such as engine oil temperature, engine speed, ambient
pressure, coolant temperature, etc. can be read. The Scope of maintenance can
be narrowed down as we can determine the faulty component based on these
parameters. And the data can be displayed in various modes.

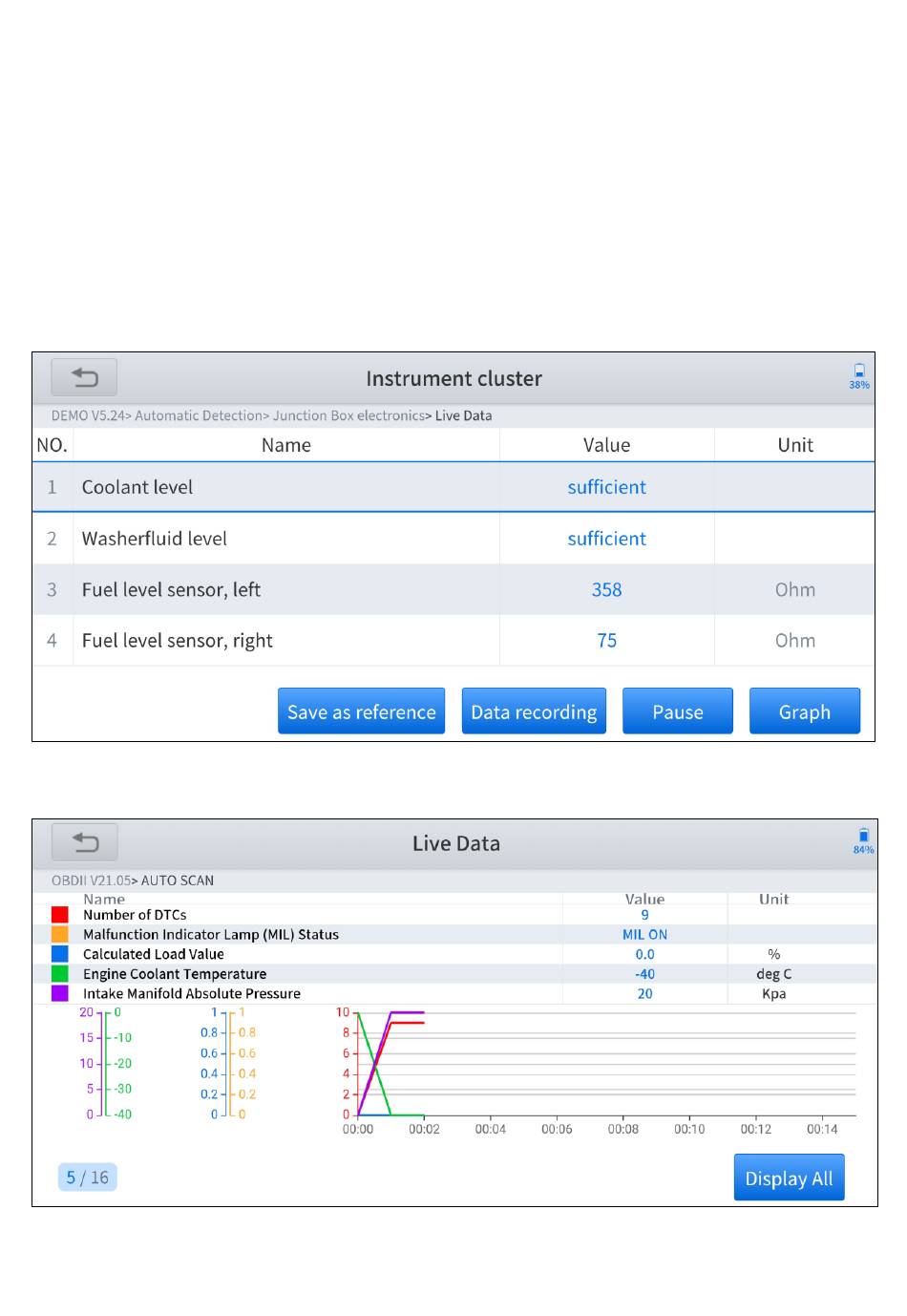

Figure 3-9 Sample of live data screen (table)
Figure 3-10 Sample of live data screen (graph)
— 18 —
