2.6 VCI STATUS

From left to right, the LED displays blue, red, and green light respectively, and each
of the LEDs indicate different operating status.
① Bluetooth Indicator - Lights solid blue when the Anyscan is connected to the
mobile device through Bluetooth
② Power Indicator - Lights solid red when the Anyscan is properly connected to
the vehicle/power supply
③ Vehicle Indicator - Lights flash green when the Anyscan is communicating
with the vehicle
The vehicle indicator will only light green when the Anyscan is sending or receiving commands
to or from the vehicle. It will not light green throughout the diagnosis process.

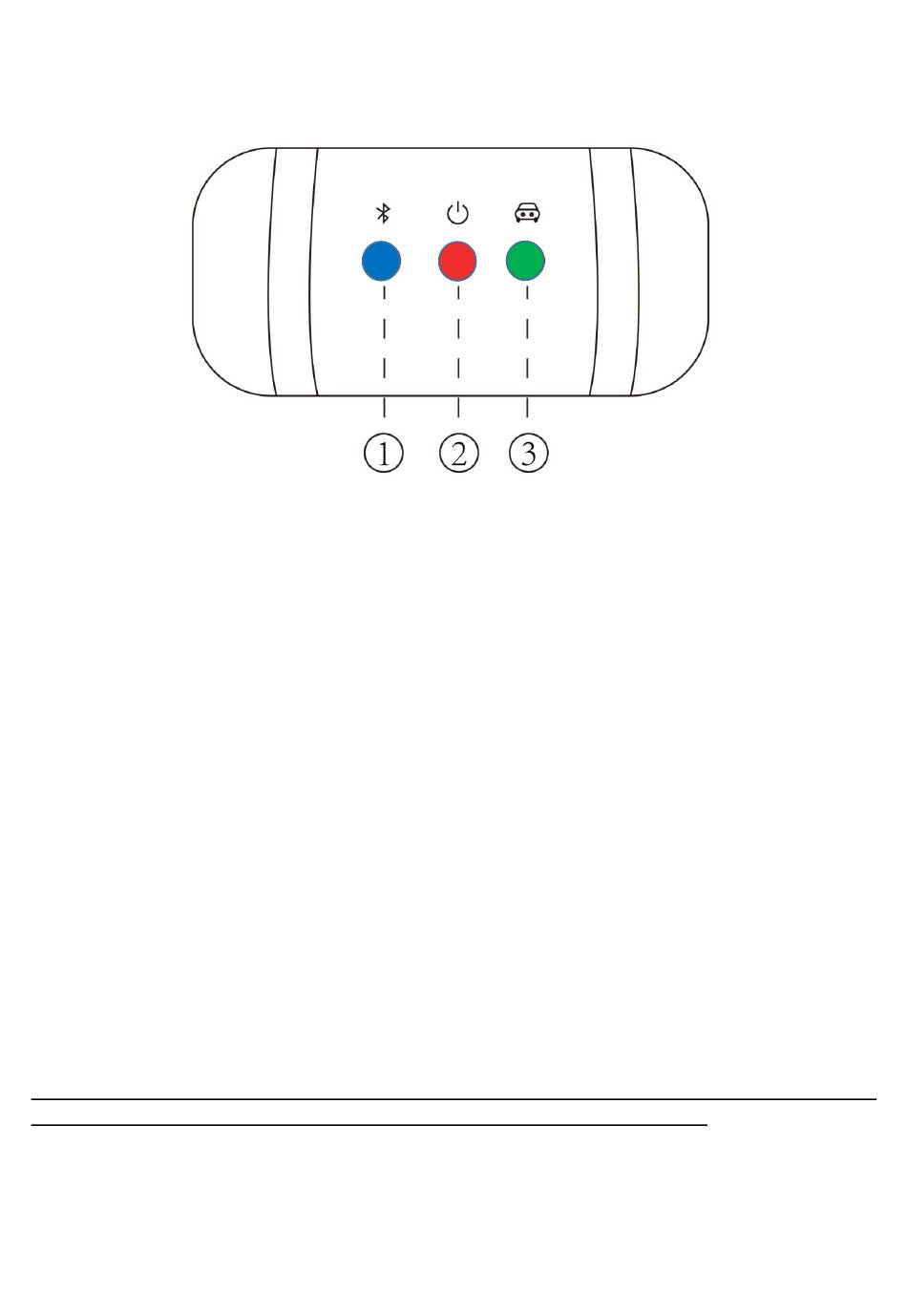

Figure 2-7 LED indicators
