Air Slide Table
ø12, ø16
Compact, Lightweight
18
mm
Height
267
g
Weight
∗ MXJ, ø12, 30 mm stroke
Width
Width
Auto switch and adjuster
switch and adjuster
can be mounted on the
same side.
Short pitch mounting
is possible.
Auto switch
MXJ
Series
34
mm
Width
Adjuster
High Precision
High-precision linear guide
mounted
Traveling parallelism
Side mo
Side mounting and
Height
piping p
piping possible
RoHS
0.005
mm
Mounting parallelism
0.03
mm
CAT.ES20-252A
CAT.ES20-252A 2019-5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXJ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks MXJ Series

Summary of Contents for SMC Networks MXJ Series

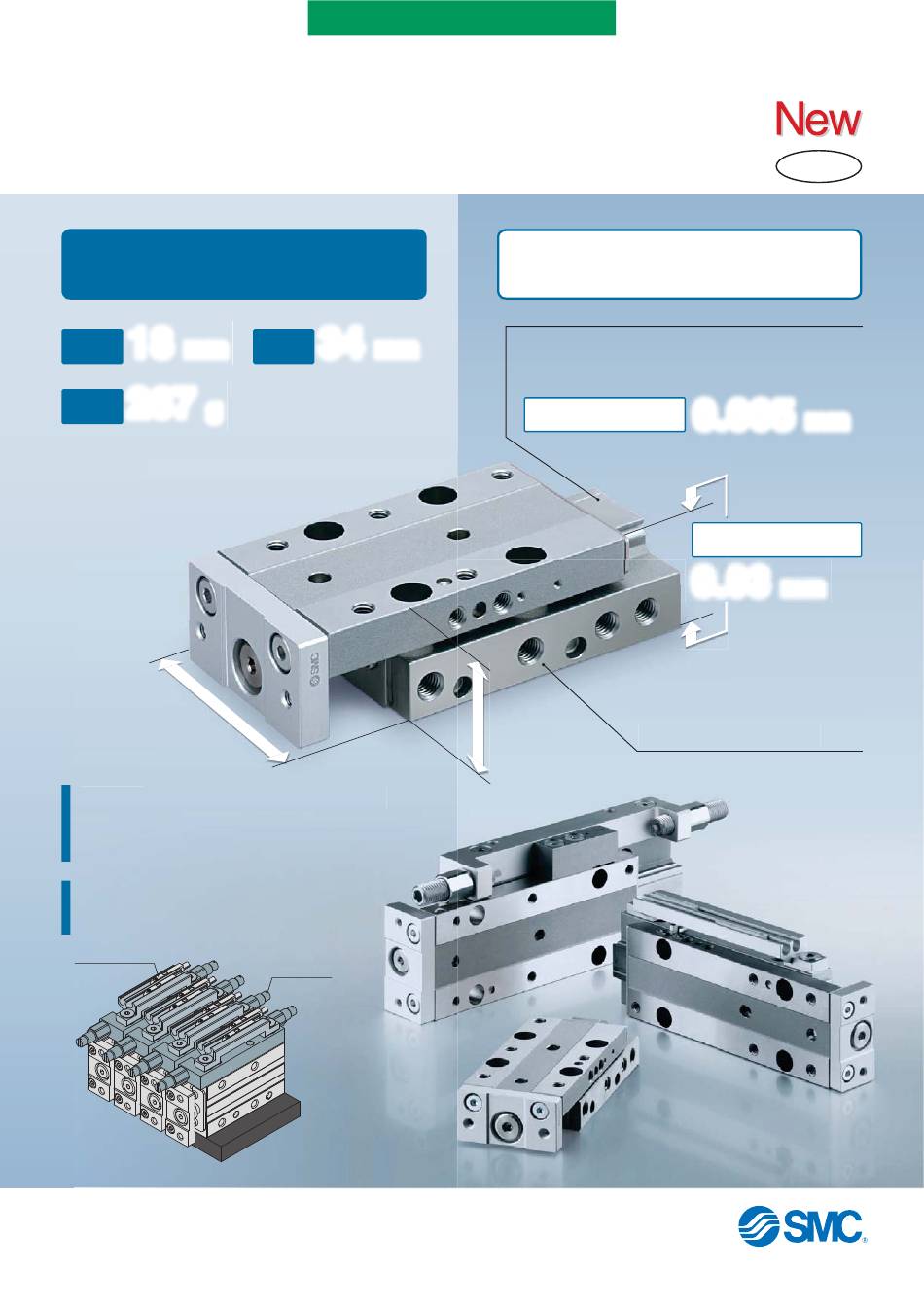

  • Page 1 Air Slide Table ø12, ø16 RoHS Compact, Lightweight High Precision Height Width High-precision linear guide mounted 0.005 Weight Traveling parallelism ∗ MXJ, ø12, 30 mm stroke Mounting parallelism 0.03 Side mounting and Side mo Width Width Height piping possible piping p Auto switch and adjuster switch and adjuster can be mounted on the...
  • Page 2 Air Slide Table MXJ Series Compact [mm] Bore size Stroke Overall length Height Width Weight Overall length MXJ12 MXJ16 MXJ16 Width Height Mounting is possible from 3 directions. Side mounting (Body tapped) Top mounting (Through hole) Bottom mounting (Body tapped) The air passage and groove for the O-ring are machined on the plate by user.
  • Page 3 Air Slide Table MXJ Series Improved operability Position of the , and can be changed on site auto switch adjuster pilot port according to the installation conditions. (Refer to page 27 for details.) Auto switches and adjusters can be placed on the same side. Pilot port location selectable With auto switch With auto switch and adjuster...

  • Page 4: Table Of Contents

    C O N T E N T S Air Slide Table Series How to Order ..................p. 4 Specifications ................... p. 5 Dimensions ..................p. 7 MXJ12 ..................p. 9 MXJ16 .................. p. 11 Adjusters ............p. 12 Auto Switch Mounting Prior to Use Auto Switch Connections and Examples ........

  • Page 5: How To Order

    Air Slide Table Series ø12, ø16 RoHS How to Order 10 Z M9BW Number of auto switches Bore size 12 mm 16 mm Auto switch Symmetric type Without auto switch Standard ∗ For applicable auto switches, Pilot port side refer to the table below. Stroke [mm] Bore size Stroke...

  • Page 6: Specifications

    Series Specifications Model MXJ12 MXJ16 Bore size [mm] Piping port size M5 x 0.8 Fluid Action Double acting Operating pressure ∗ 0.1 to 0.7 MPa Proof pressure 1.05 MPa Ambient and fluid temperatures –10 to 60°C 50 to 500 mm/s Piston speed (Average speed) ∗...

  • Page 7: Mxj12 Mxj16

    Series Air Slide Table Maximum Allowable Load Mass: m max Maximum Allowable Moment (Reference Values) [kg] [N·m] Maximum load mass Model Pitch, Yaw Roll MXJ12 Without adjuster Model Metal stopper with bumper Rubber stopper MXJ16 Metal stopper Shock absorber ∗ A model cannot be selected with the maximum allowable moment. MXJ12 Select a model according to the model selection steps on page 19.
  • Page 8 Series Dimensions Basic model (Without switch rail) MXJ12- ZN Pilot port 2 x M5 x 0.8 (Plugged for the symmetric type) M5 x 0.8 thread depth 6 M5 x 0.8 thread depth 6 2 x M4 x 0.7 thread depth 5.5 2 x M1.7 x 0.35 thread depth 2 2 x M4 x 0.7 thread depth 5 4 x M4 x 0.7 thread depth 7.3...
  • Page 9 Series Air Slide Table Dimensions MXJ12- Z N (With adjuster) Metal stopper with bumper : Both ends, : Extension stroke end, : Retraction stroke end : Re Retr traction stroke end Extension stroke Retraction stroke end adjuster end adjuster (M6 x 0.75) (M6 x 0.75) Dimensions [mm]...
  • Page 10 Series Dimensions Basic model (Without switch rail) MXJ16- ZN Pilot port 2 x M5 x 0.8 M5 x 0.8 thread depth 6 (Plugged for the symmetric type) M5 x 0.8 thread depth 6 2 x M4 x 0.7 thread depth 5.5 2 x M1.7 x 0.35 thread depth 2 4 x M4 x 0.7 thread depth 9 2 x M4 x 0.7 thread depth 6...
  • Page 11 Series Air Slide Table Dimensions MXJ16- Z N (With adjuster) : Both ends, : Extension stroke end, : Retraction stroke end Metal stopper with bumper Retraction stroke Extension stroke end adjuster end adjuster Dimensions (M8 x 1) (M8 x 1) [mm] Model Width across hexagon...

  • Page 12: Adjusters

    Series Adjusters How to Order MXJZ Adjuster type Mounting bolt Symbol Adjuster type Adjuster mounting position Bore size Symbol Mounting type Bolt size Metal stopper with bumper Rubber stopper Both ends For adjustment plate MXJ12: M5 x 14 Shock absorber mounting MXJ16: M5 x 17 Metal stopper...

  • Page 13: Auto Switch Mounting

    Series Auto Switch Mounting Auto Switch Proper Mounting Position (Detection at stroke end) Lead wire, in-line entry (Without adjuster) Solid state auto switch D-M9 D-M9 W D-M9 A [mm] Stroke Stroke Stroke Model MXJ12 14.5 24.5 26.5 36.5 56.5 MXJ16 14.5 24.5 28.5...
  • Page 14 Series Auto Switch Mounting Caution 2. Maintain a minimum gap (L) if standard type and symmetric type are 1. Auto switch mounting tool used side by side. · When tightening the auto switch mounting If the space is insufficient, it may cause auto switches to malfunction. screw (included with the auto switch), use a watchmaker’s screwdriver with a handle diameter of about 5 to 6 mm.

  • Page 15: Prior To Use

    Prior to Use Auto Switch Connections and Examples Sink Input Specifications Source Input Specifications 3-wire, NPN 3-wire, PNP Input Input Brown Brown Black Black Auto switch Auto switch Blue Blue (PLC internal circuit) (PLC internal circuit) 2-wire 2-wire Brown Input Brown Auto switch Auto switch...

  • Page 16: Made To Order

    Series Made to Order Please contact SMC for detailed specifications, delivery, and prices. Symbol Specifications Page -X11 Long adjustment bolt (10 mm longer adjustment range) -X12 Long adjustment bolt (20 mm longer adjustment range) -X39 Fluororubber seal -X42 Anti-corrosive guide unit -X45 EPDM seal -X53...

  • Page 17: Long Adjustment Bolt (10 Mm Longer Adjustment Range)

    Series Made to Order Symbol Long Adjustment Bolt (10 mm longer adjustment range) -X11 The stroke adjustment range has been increased by 10 mm Standard model no. (Refer to page 4.) compared with the standard product by making the adjustment bolt longer.

  • Page 18: Fluororubber Seal

    Series Symbol Fluororubber Seal -X39 This specification changes the materials for the piston seal, rod Specifications seal, and O-rings to fluororubber. Seal material Fluororubber ∗ Dimensions and specifications other than the above are the same as the Standard model no. standard type.

  • Page 19: Heat-Resistant Specification (-10 To 100°C)

    Series Made to Order Symbol Heat-resistant Specification (–10 to 100°C) -X2128 Seal material and grease have been changed so that the product Specifications can be used at temperatures between –10 up to 100°C. Ambient temperature –10°C to 100°C (No freezing) Seal material Fluororubber X2128...

  • Page 20: Model Selection

    Series Model Selection For Transfer (1) Load mass and overhang L and L , should be within the average speed (Va) limit in the graphs. (2) For horizontal use, overhang L should not exceed the allowable range. For vertical use, it is not necessary to consider L as it does not affect the moment.
  • Page 21 Series Model Selection Adjuster For Transfer − The allowable overhang L for adjuster type is asymmetrical. Adjuster side is the “-” direction. Metal Stopper with Bumper MXJ12 MXJ16 Load mass m [kg] Load mass m [kg] Va = 50 to 100 mm/s Va = 50 to 100 mm/s : 30 mm or less : 40 mm or less...
  • Page 22 Series For Pressing (Clamping) (1) Confirm that the clamping jig weight and overhang are within the allowable range as shown in the graphs for transfer. (2) Pressing force N and overhang L and L , shou ld be within the range as shown in the graphs. MXJ12 0.7/ —...
  • Page 23 Series Model Selection The graphs below show the table displacement when the static mo- ment load is applied to the table. The graphs do not show the loadable Table Deflection (Reference Values) mass. Refer to the Model Selection for the loadable mass. Table displacement due to pitch moment load Table displacement due to yaw moment load Table displacement due to roll moment load...

  • Page 24: Specific Product Precautions

    Series Specific Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Selection Mounting Caution...
  • Page 25 Series Specific Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Mounting Caution ¡Workpiece mounting...
  • Page 26 Series Specific Product Precautions 3 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Mounting Mounting Caution...
  • Page 27 Series Specific Product Precautions 4 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Caution on Handling Adjuster Other Caution...
  • Page 28 Series Specific Product Precautions 5 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Caution on Replacing Standard Type to Symmetric Type, and Vice Versa The adjuster, switch rail, and port location can be changed symmetrically.
  • Page 29 Series Specific Product Precautions 6 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For actuator and auto switch precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Caution on Replacing Standard Type to Symmetric Type, and Vice Versa Caution Replace the parts by moving or rotating in the directions shown.
  • Page 30 These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
