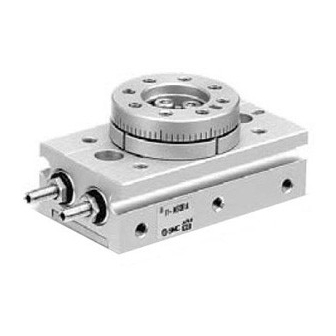

- Page 1 Doc. No.MSQB-OM00004-G PRODUCT NAME Rotary Table MODEL / Series / Product Number 10 to 200 - 0 -...
-
Page 2: Table Of Contents
Contents Safety Instructions Outline Specifications Mass Effective torque Internal construction and parts Basic circuit Circuit structure Recommended models Mounting Load restrictions Flange application Direction and Angle of Rotation (Adjusting bolt, Internal shock absorber type) Rotating range examples (Adjusting bolt, Internal shock absorber type) Rotating direction and rotating angle (External shock absorber type) Piping Air supply... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution We develop, design, and manufacture our products to be used for automatic control equipment, and provide them for peaceful use in manufacturing industries. Use in non-manufacturing industries is not covered. Products we manufacture and sell cannot be used for the purpose of transactions or certification specified in the Measurement Act.
- Page 5 Design / Selection Warning 1. Confirm the specifications. Products represented in this catalog are designed only for use in compressed air systems. Do not operate at pressures or temperatures, etc., beyond the range of specifications, as this can cause damage or malfunction. (Refer to the specifications.) We do not guarantee against any damage if the product is used outside of the specification range.
- Page 6 12. Select a speed within the product’s allowable energy value. If the product’s kinetic energy of the load exceeds the allowable value, it could damage the product, and cause a hazard to humans and damage the machinery and equipment. 13. Provide a shock absorber if the kinetic energy that is applied to the product exceeds the allowable value.
- Page 7 Mounting Warning 1. Operation manual Install the product and operate it only after reading the operation manual carefully and understanding its contents. Also, keep the manual in a location where it can be referred to as necessary. 2. Ensure sufficient space for maintenance activities. When installing the products, allow access for maintenance.
- Page 8 12. Place an external stopper in a position that is away from the rotating table. If the stopper is placed near the rotating table, the torque that is generated by the product itself will cause the reaction force which is directed to the stopper to be redirected and applied to the rotating table.
- Page 9 Caution 1. Do not use organic solvent to wipe the area of the name plate that shows the model. It will erase what is indicated on the name plate. 2. Do not hit the rotating table by securing the body or hit the body by securing the rotating table.
- Page 10 2. For products with shock absorbers, when the shock absorber stops motion before reaching the stroke end using a stopper mechanism with the objective of shortening tact time be sure the shock absorber is stopped in a position where it has adequately absorbed the kinetic energy.
- Page 11 Operating Environment Warning 1. Do not use in an atmosphere having corrosive gases, chemicals, sea water, water, steam, or where there is direct contact with any of these. Refer to the construction for information on the rotary table material. 2. Do not expose the product to direct sunlight for an extended period of time. 3.
- Page 12 Auto Switches Precautions Design / Selection Warning 1. Confirm the specifications. If the product is used with excess load applied or beyond the specification range, this may cause the product to break or malfunction. We do not guarantee against any damage if the product is used outside of the specification range.
- Page 13 8. Provide enough space for the lead wire. Applying stress to the lead wire and auto switch body connection part increases the risk of disconnection. Provide a space of at least the min. bending radius from the lead wire and auto switch body connection part.
- Page 14 2) If the internal resistance of a light emitting diode causes a problem, select an auto switch without an indicator light. <Solid state / 2-wire type> Generally, the internal voltage drop of the solid state auto switch is larger than that or the reed auto switch.
- Page 15 5. Mount an auto switch at the center of the operating range. In the case of 2-color display auto switch, mount it at the center of the green LED illuminating range. Adjust the mounting position of the auto switch so that the piston stops at the center of the operating range.
- Page 16 5. Avoid repeatedly bending or stretching lead wires. Broken lead wires will result from repeatedly applying bending stress or stretching force to the read wires. Stress and tensile force applied to the connection between the lead wire and auto switch increases the possibility of disconnection.
- Page 17 Operation Environment Warning 1. Never use in an atmosphere with explosive gases. The structure if auto switches is not intended to prevent explosion. This may lead to explosion hazard. Caution 1. Do not use in an area where a magnetic field is generated. Auto switches will malfunction or magnets inside rotary tables will become demagnetized.
- Page 18 Maintenance Warning 1. Removal of equipment, and supply/exhaust of compressed air. Before any machinery or equipment is removed, first ensure that the appropriate measures are in place to prevent the fall or erratic movement of driven objects and equipment, then cut off the electric power and reduce the pressure in the system to zero.
-
Page 19: Outline
Outline This operation manual explains “Rack and Pinion Type Rotary Cylinder”. When using the product, load (moment of inertia), rotation time and other factors have to be considered. So, confirm the specification of the product prior to use. Specifications Table 1. Specifications Size Fluid Air (non-lube) -
Page 20: Mass
Table 2. Minimum rotation angle that will not allow decrease of energy absorption ability Internal shock absorber type Size Minimum rotation angle that will not allow decrease of energy 52° 43° 40° 60° 71° 62° 82° absorption ability Table 3. Rotating angle at which the shock absorber acts (External shock absorber type) Size For low energy 7.1°... -
Page 21: Internal Construction And Parts
Internal construction and parts MSQ10～50 (Adjustment bolt type, Internal shock absorber type) Product label Plug Seal washer Parallel pin Hexagon socket head cap screw Hexagon socket head cap screw Hexagon thin socket head bolt (Size10 Cross recessed round head screw) Round head no.0 Philips screw Bearing High precision type:2 (angular duplex bearing) - Page 22 MSQB70～200 (Adjustment bolt type, Internal shock absorber type) Product label Plug Steel ball Seal washer Parallel key Type CS retaining ring Hexagon socket head cap screw Hexagon socket head cap screw Hexagon socket head cap screw Round head no.0 Philips screw Bearing Needle bearing Piston seal...
- Page 23 MSQ10～50 (External shock absorber type) Product label Shock absorber Plug Hexagon nut Parallel pin Hexagon socket head cap screw 90°：4 pcs., 180°：2 pcs. Hexagon socket head cap screw Hexagon socket head cap screw Hexagon socket head cap screw Hexagon thin socket head bolt (Size10 Round head Philips screw ) Round head no.0 Philips screw Bearing...
-
Page 24: Basic Circuit
Basic circuit Circuit structure The standard circuit for operating a rotary cylinder with an air filter, regulator, solenoid valve and speed controller is shown in Figure 1 below. Regulator Speed controller Air filter Solenoid valve Rotary actuator Fig. 1 Basic circuit Recommended models Recommended models for the standard circuit in Figure 1 are shown in Table 5 below. -
Page 25: Mounting
Mounting Load restrictions Set the load and moment to be applied to the table within the allowable values shown in the table below. (Values exceeding the allowable range will cause excessive play, reduce accuracy, and shorten service life.) Fig. 2 Table 6 Size - Size -... -
Page 26: Direction And Angle Of Rotation (Adjusting Bolt, Internal Shock Absorber Type)
Direction and Angle of Rotation (Adjusting bolt, Internal shock absorber type) ・When the cylinder is pressurized from port A, the table rotates clockwise. ・To obtain the desired rotation angle, the rotation ends can be set within the range shown in the diagram by regulating the adjustment bolt. -
Page 27: Rotating Range Examples (Adjusting Bolt, Internal Shock Absorber Type)
Rotating range examples (Adjustment bolt, Internal shock absorber type) Various rotation ranges are possible as shown in the drawings below using adjustment bolts A and B. (The drawings show the rotation range of the positioning pin hole.) Fig. 6 - 26 -... -
Page 28: Rotating Direction And Rotating Angle (External Shock Absorber Type)
Rotating direction and rotating angle (External shock absorber type) ・When the cylinder is pressurized from port A, the table rotates clockwise. ・To obtain the desired rotation angle, the rotation ends can be set within the range shown in the diagram by regulating the shock absorber. -
Page 29: Piping
Note) ・Although the rotating angle of external absorber type can be made smaller by screwing in a shock absorber, do not make it smaller than the minimum rotating angle of 84° (90° specification) and 174° (180° specification). This will increase the deflection angle on the working face of the shock absorber’s piston rod and arm, causing damage to the shock absorber. -
Page 30: Setting Of Rotation Time
Setting of rotation time Even if the torque that is required by the load in the rotation movement is small, the internal parts could become damaged depending on the inertia of the load. Therefore, select an appropriate model for your application by taking the load’s moment of inertia, kinetic energy, and rotation time into consideration. -
Page 31: Calculation Formulae For Moment Of Inertia
Calculation formulae for moment of inertia I: Moment of inertia [ kg・m ] m: Load mass [ kg ] 6. Thin round plate 1. Thin shaft Position of rotational axis: Through the center of Position of rotational axis: Perpendicular to the diameter shaft through the center of gravity ・... -
Page 32: Kinetic Energy
Kinetic energy Table 10 shows the allowable kinetic energy of the rotary table. Here, the angular speed ωcan be found from the formula below. Table 10 Allowable kinetic energy Allowable kinetic energy J External Internal Size shock absorber θ: Rotation angle Adjusting bolt shock [ rad ]... -
Page 33: Auto Switch Type For Rotary Table
Auto switch type for rotary table The rotary table has a magnet mounted on its piston and an auto switch on the outside of the body to detect the piston position (table position). Rotary tables have a short piton stroke, so detection should be done at the stroke end. - Page 34 Table 12 Solid state auto switch specification (D－M9□) Internal Auto switch Output Power supply Current Load Load Leakage Applicable voltage model type voltage consumption voltage current current load drop D-M9N D-M9NV 28VDC D-M9NW or less At 10mA D-M9NWV 5･12･ 0.8V or 100µA or Relay 10mA...
-
Page 35: Mounting Of Auto Switch
Mounting of auto switch Use a watchmaker’s screwdriver of grip diameter 5 to 6mm to tighten the auto switch mounting screws to a tightening torque of D-M9:0.05 to 0.15N･m, D-A9:0.10 to 0.20 N･m. Use the designated slotted set screws. Fig. 11 Proper auto switch mounting position at rotation end Operation range at optimum set position (Lm/2) -
Page 36: Internal Structure And Operation Principle
Internal structure and operation principle Fig. 13 When switch A is turned on and pressure is supplied in the direction indicated by the arrows in Fig. 13, the piston moves and the table rotates clockwise. At this point, magnet A goes out of switch A's operation range to turn off switch A. Then the piston moves further, and the magnet goes into switch B's operation range to turn on switch B. -
Page 37: External Stopper
External stopper If the kinetic energy that is generated by the load exceeds the actuator’s threshold value, an external dampening function must be provided to absorb the energy. Mounting position of external stopper Installing the stopper near to the centre of the table should be avoided. When the rotation arm strikes the stopper, a reaction force generated by the load’s inertia will be redirected and applied to the table itself. -
Page 38: Maintenance And Inspection
Maintenance and Inspection In order to use the rotary table in an optimal condition, it is necessary to perform maintenance regularly depending on the operating conditions. It is preferable to perform maintenance of the rotary table once a year in general. Even if no problem is found, seal parts replacement is recommended every three years. Note that if mechanical components such as pinion, rack, bearing etc. - Page 39 ■Disassembly procedure (1) Loosen hexagon socket head cap screw and pull out the table. Loosen hexagon thin socket head bolt (Size 10 Cross recessed round head screw Size 70, 100, 200 Hexagon socket head cap screw) to remove the bearing retainer. (2) Pull out the pinion and the bearing from the body.
- Page 40 ■Assembly procedure (1) Clean each component sufficiently before assembly to remove any dust etc. Apply the grease provided in the seal set to each part shown in Table 14. As a guideline, apply enough grease to make the surface shiny. Table 14.
- Page 41 Cover assembly Size 70･100･200 Cover Size 10･20･30･50 Seal Plate Gasket (Cover) O-ring Round head no.0 Philips screw Fig. 18 End cover assembly Size 10･20･30･50 (Adjust bolt, Internal shock absorber type) Gasket (End cover) Compact hexagon nut Adjustment bolt Plug End cover Seal washer Size 70･100･200 Size 10･20･30･50...
- Page 42 (2) Insert the piston assembly into the body assembly. In this case, the piston seals pass through the cylinder opening, so install the seals into the opening while squeezing them to prevent the seals from being damaged. Pay attention to the insertion direction of the piston and the body as they are specified. (Figure 20) Fig.
- Page 43 (4) Install the bearing, bearing holder and table on the body. Hexagon socket head cap screw Table Size 10 Cross recessed round head screw Size 20･30･50 Hexagon thin socket head bolt Size 70･100･200 Bearing retainer Hexagon socket head cap screw Bearing Body Fig.
-
Page 44: Troubleshooting
Troubleshooting Problem Possible cause Solution Supply pressure is not applied Correctly set the regulator at the supply correctly. pressure side. directional switching Correctly apply a signal to the directional valve (such as a solenoid switching valve (such as a solenoid valve). valve) does not switch. - Page 45 Problem Possible cause Solution Air leakage from the The seal parts need to be replaced. Contact Piston seal is worn out. table SMC. Replace the rotary table with the new one. Excessive kinetic energy was After that, take the measures below. ・Calculate the kinetic energy applied to the applied to the rotary table.
- Page 46 Revision history A: Corrected the mounting position of the auto switch. B: Corrected product mounting bolt size. C: Erratum Correction. D: Fully revised following product review. E: Added a note of caution. F: Added the type of port. G: Revised safety instructions. Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note:...
