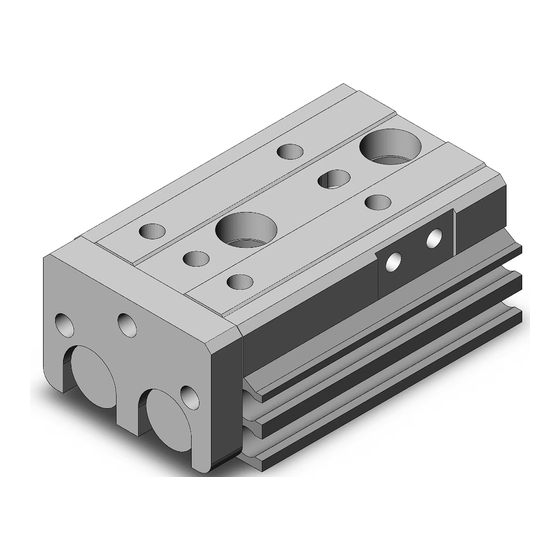

- Page 1 Doc. no.1082442 PRODUCT NAME Adjuster Side Mounting Type / Air Slide Table MODEL / Series / Product Number MXQ6(L)-X2578 MXQ8(L)-X2578 MXQ12(L)-X2578 MXQ16(L)-X2578 MXQ20(L)-X2578 MXQ25(L)-X2578...
-
Page 2: Table Of Contents
Contents Safety Instructions ........................3 1. Product Specifications ......................... 5 1-1. Specifications ........................5 1-2. Stroke adjuster ........................5 2. How to use ..........................6 2-1. Mounting ..........................6 2-2. Air supply ..........................8 2-3. Piping ........................... 9 2-4. Operating Environment......................9 2-5. -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution We develop, design, and manufacture our products to be used for automatic control equipment, and provide them for peaceful use in manufacturing industries. Use in non-manufacturing industries is not covered. Products we manufacture and sell cannot be used for the purpose of transactions or certification specified in the Measurement Act.
-
Page 5: Product Specifications
Both ends (A) Extension end (BS) Shock absorber is not available in the Stroke adjuster Shock absorber Retraction end (BT) MXQ6,20,25 series. Both ends (B) Extension end (CS) Stroke adjustment Metal stopper Retraction end (CT) range 0 to 5mm Both ends (C) -
Page 6: How To Use
2-1. Mounting (1) Mounting of body Three types of installation are available according to the machine or work piece. 1. Lateral mounting (Body tapped) Maximum Thread depth: Model Bolt Tightening L(mm) MXQ6(L) M4×0.7 1.7~2.1 MXQ8(L) M4×0.7 1.7~2.1 MXQ12(L) M5×0.8 3.5~4.4 MXQ16(L) M6×1... - Page 7 (2) How to mount the workpiece 1. Front mounting Maximum Thread depth: Model Bolt Tightening L(mm) MXQ6(L) M3x0.5 0.7~0.9 MXQ8(L) M4×0.7 1.7~2.1 MXQ12(L) M5×0.8 3.5~4.4 MXQ16(L) M6×1 5.9~7.4 MXQ20(L) M6×1 5.9~7.4 12.5 MXQ25(L) M8×1.25 14.5~18.0 14.5 2. Top mounting Maximum...
-
Page 8: Air Supply
➆ Keep away objects that are affected by magnets. A magnet is built into the body or, in the case of a type with auto switch, on the side of the guide block. Keep away magnetic discs, cards or tapes. Data may be erased. ➇... -
Page 9: Piping
➃ Use the product within the specified fluid and ambient temperature range. When operating at temperatures below 5℃, water in the circuit may freeze and cause the breakdown of seals or malfunction. Corrective measures should be taken to prevent freezing. For compressed air quality, refer to SMC catalog “Compressed Air Purification System”. -
Page 10: Lubricating
Caution ➀ Do not use in an environment where the product is directly exposed to liquid, such as cutting oils. If cutting oil, coolant or oil mist splashes the product, play, increased sliding resistance and air leakage can result. ➁ Do not use the product in an environment directly exposed to foreign matter such as dust, cutting chips and spatter. -
Page 11: Mounting Of Optional Adjuster
2-7. Mounting of optional adjuster Caution ➀ The stoke adjustment kit is shipped with the product. To correctly install the stroke adjuster, follow the steps below. ➁ The bolts for the adjustment block, mounted to the table, and the Stopper Block, mounted to the body, may be different lengths. - Page 12 2. Body mounted part Install the stopper block, with the adjustment bolt (or shock absorber), set piece, and set screw attached on it, onto the body. Shock absorber (BS) Adjustment bolt Set screw Stopper block Set piece Note) Install the set screw in a partially tightened state so that the adjustment bolt (or shock absorber) can be adjusted.
- Page 13 ➃ Install the retraction end stroke adjuster (AT, BT, CT) by the appropriate method in accordance with the figure and table below. Defective installation may result in a decrease of the positioning accuracy, malfunction, or failure. Install the stopper plate, with the adjust bolt (or shock absorber), set piece, and set screw attached on it, onto the body.
-
Page 14: Handling Of Optional Adjuster
2-8. Handling of optional adjuster ●Rubber stopper / Metal stopper Caution Tightening ➀ When replacing the bolt, do not replace it with a bolt other than Model torque N･m the designated adjust bolt. MXQ 6 Impact force may cause play, damage, etc. 0.7～0.9 MXQ 8 ➁... -
Page 15: Handling Of Symmetrical Type
2-9. Handling of symmetrical type Caution Ensure a minimum spacing of 3mm when mounting standard type and symmetrical type side by side. If there is not sufficient space between the adjusters, the auto switch may malfunction. 3mm minimum spacing 2-10. Mounting of auto switch Caution Mounting precautions ➀... -
Page 16: Maintenance
3. Maintenance 3-1. Precautions for maintenance Caution ➀ Maintenance should be performed according to the procedure indicated in the Operation Manual. Improper handling can cause damage and malfunction of equipment and machinery. ➁ Removal of equipment, and supply/exhaust of compressed air When components are removed, first confirm that measures are in place to prevent workpieces from dropping and/or equipment running away, etc. -
Page 17: Construction/Parts List
3-3. Construction/Parts list Component parts Description Material Note Body Aluminum alloy Hard anodized Table Hardening steel Heat treated, Electroless nickel plated End plate Aluminum alloy Hard anodized Guide block Hardening steel Heat treated Cover Synthetic resin Return guide Synthetic resin Scraper Stainless steel, NBR Stainless steel... - Page 18 Component parts: with retraction end rubber stopper Description Material Note Stopper block Aluminum alloy Hard anodized Adjustment bolt Stainless steel Set screw Stainless steel Set piece Aluminum alloy Component parts: with extension end shock absorber Description Material Note Stopper block Aluminum alloy Hard anodized Adjustment bolt...
- Page 19 Component parts: with extension end metal stopper Description Material Note Stopper block Aluminum alloy Hard anodized Adjustment block Hardening steel Heat treated, Electroless nickel plated Adjustment bolt Stainless steel Set screw Stainless steel Set piece Aluminum alloy Component parts: with retraction end metal stopper Description Material Note...
-
Page 20: Adjuster Parts List
3-4. Adjuster parts list To replace the stroke adjuster, order the required parts from the tables below. Extension end rubber stopper Bore size(mm) Adjuster part no. MXQ-AS6(L)-X2578 MXQ-AS8(L)-X2578 MXQ-AS12(L)-X2578 MXQ-AS16(L)-X2578 MXQ-AS20(L)-X2578 MXQ-AS25(L)-X2578 Retraction end rubber stopper Bore size(mm) Adjuster part no. MXQ-AT6(L)-X2578 MXQ-AT8(L)-X2578 MXQ-AT12(L)-X2578... -
Page 21: Replacement Parts List
MXQ-CT8(L)-X2578 MXQ-CT12(L)-X2578 MXQ-CT16(L)-X2578 MXQ-CT20(L)-X2578 MXQ-CT25(L)-X2578 3-5. Replacement parts list Replacement parts: Adjuster mounting screw set Model Kit no. Contents MXQ6(L) MX-X2578-M4 M4 set screw + set piece MXQ8(L) MXQ12(L) MX-X2578-M5 M5 set screw + set piece MXQ16(L) MXQ20(L) MX-X2578-M6 M6 set screw + set piece... - Page 22 Revision history Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © SMC Corporation All Rights Reserved...
