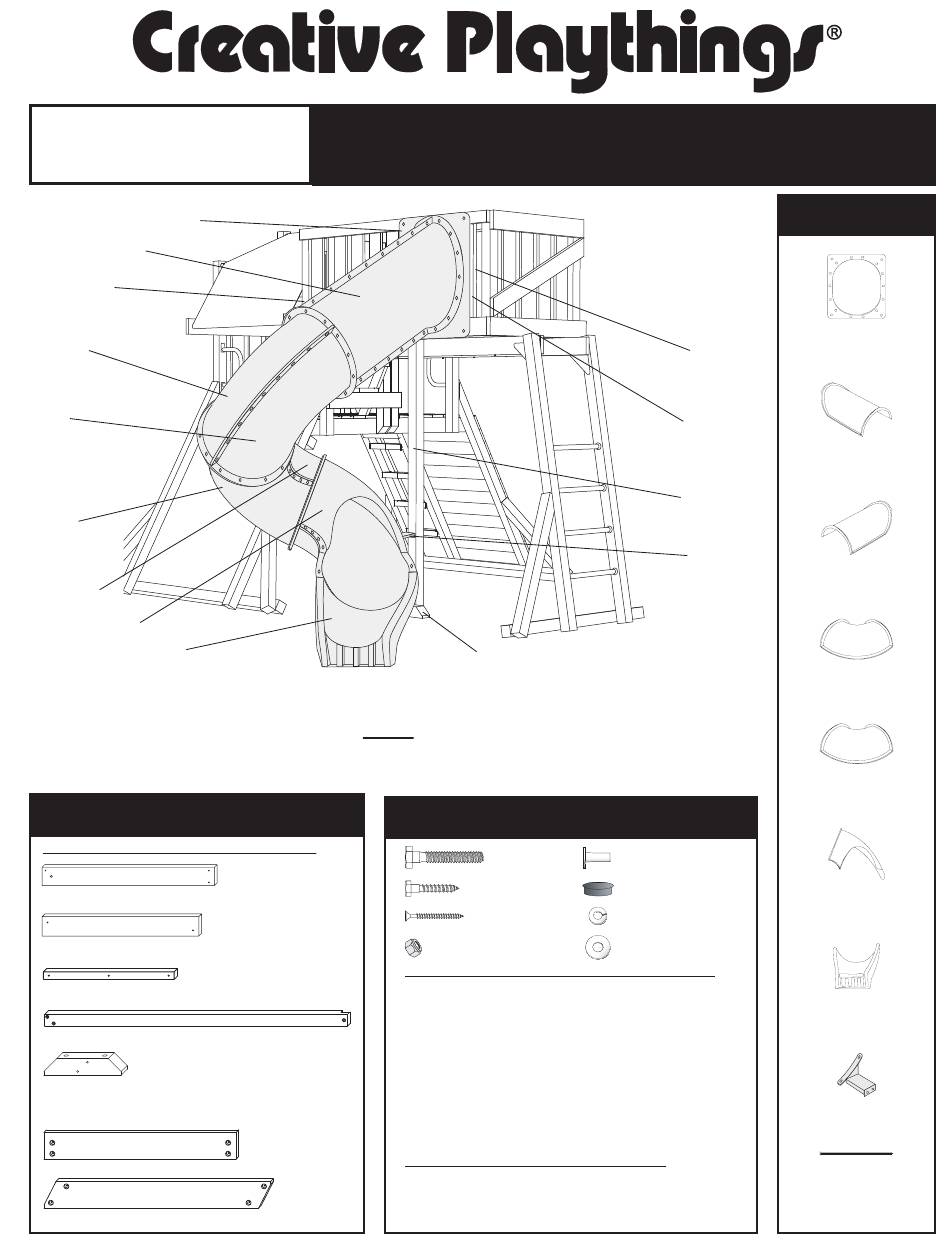

MODEL 63056-101
AssEMbLy MAnuAL
A
B
C
D
E
E
D
F
G
All hardware on this set is specially coated for corrosion resistance. if non-creative
playthings hardware is used, it Must be galvanized or stainless steel.
Please review your original Playset Assembly Manual and your Owners Manual before as-
pArts
63056-101
Fun Deck spiral slide Adaptor
J
2 32457-102 Side Support 2x4x31-1/2"
K 2 32458-102 Side Filler 2x4x27"
L
1 32473-102 Bottom Filler 1-3/8x1-3/4x22-1/2"
M 1 32855-102 Bracket Support 4x4x85-3/8"
N 1 32856-102 Bracket Support Base 4x4x15"
O 1 15133-400 Plastic Slide Mount - Green
P 2 17105-024 24" Ground Spike
Q 1 35364-102 End Replacement 2x6x38"
R 1 35365-102 Cross Brace 2x6x44-3/4"
Fun DEck spirAL sLiDE
sembly of your Spiral Slide.
Lock Nut
50445-700 Hardware bag - Fun Deck spiral slide
10 17001-105
26 12002-206
2
17003-611
5
17003-1211 Hex Bolt 5/16x3"
2
17003-2411 Hex Bolt 5/16x6"
10 17017-206
20 17020-113
4
17036-602
6
17036-1002 Lag Screw 5/16x2-1/2"
6
17036-1202 Lag Screw 5/16x3"
9
15081-704
15063-1020 Hardware pack - spiral slide
96 12002-206
48 12017-206
48 12003-411
48 12052-106
N
63065-101 Fun Deck Spiral Slide Mount
8400-202
Spiral Slide
HArDwArE
Hex Bolt
Weld Nut
Lag Screw
Hole Cap
Wood Screw
Lock Washer
Flat Washer
Weld Nut 5/16
Flat Washer 5/16"
Hex Bolt 5/16x1-1/2"
Lock Washer 5/16"
Screw #10x2-1/2
Lag Screw 5/16x1-1/2"
1" Hole Cap, Brown
Flat Washer 5/16"
Lock Washer 5/16"
Hex Bolt 5/16" x 1"
Lock Nut 5/16"
sLiDE pArts
A-(1) Mounting Plate
J
P/N 15064-1180-Yellow
P/N 15064-1480-Green
K
B-(1) Left Entrance
P/N 15064-1175-Yellow
P/N 15064-1475-Green
M
H
C-(1) Right Entrance
P/N 15064-1174-Yellow
P/N 15064-1474-Green
D-(2) Top Elbow
P/N 15064-1177-Yellow
P/N 15064-1477-Green
E-(3) Bottom Elbow
P/N 15064-1176-Yellow
P/N 15064-1476-Green
F-(1) Exit Section
P/N 15064-1178-Yellow
P/N 15064-1478-Green
G-(1) Run-off Section
P/N 15064-1179-Yellow
P/N 15064-1479-Green
H-(1) Lower Slide Support Bracket
P/N 15064-1120
I*-(2) Spiral Slide Anchor Nail
P/N 12100-848
* NOT ILLUSTRATED
