• 1/2.9" 2.0 Megapixel Progressive Scan CMOS Sensor
• 30fps live view @ 1080P
• True Day / Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output
(Selectable)
• 2.8~12mm Varifocal Lens (Manually Adjustable)
• 24 Integrated High Power Dynamic IR LEDs with up
to 65' IR Range
• 3D-DNR Noise Reduction
• Digital Wide Dynamic Range (D-WDR)
• Supports CoC (Control over COAX)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty

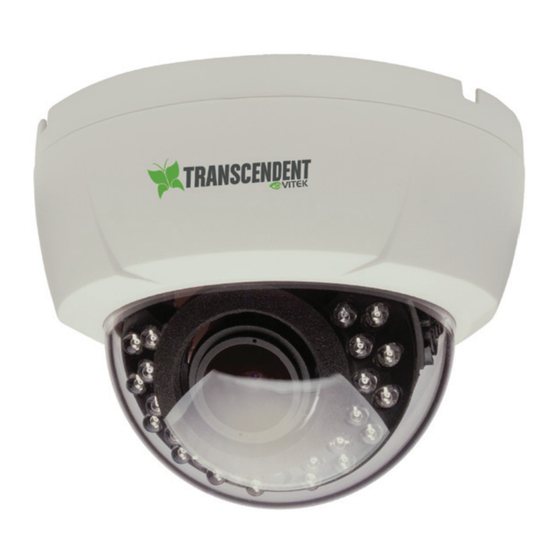

VTD-T4DIR2VD
2 Megapixel Dual Voltage
4-in-1 Indoor Varifocal
WDR Dome Camera
with IR LED Illumination
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-T4DIR2VD
Summary of Contents for Vitek VTD-T4DIR2VD
- Page 1 VTD-T4DIR2VD 2 Megapixel Dual Voltage 4-in-1 Indoor Varifocal WDR Dome Camera with IR LED Illumination FEATURES • 1/2.9” 2.0 Megapixel Progressive Scan CMOS Sensor • 30fps live view @ 1080P • True Day / Night by IR Cut Filter • HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable) •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Installation
Installation 1) Disconnect power before installation. 2) Confirm proper 12VDC or 24VAC power supply is used to prevent damage to the camera. 3) Do not use in an environment beyond the boundaries of the specifications. Power & Video Connections Connect the HD-TVI Video or AHD/CVBS video connector to a BNC patch cable, then to a DVR. - Page 4 OSD INSTRUCTIONS – VTD-T4DIR2VD ↵ MAIN EXPOSURE ↵ BRIGHTNESS:42 ↵ EXPOSURE MODE: GLOBAL IMAGE ENHANCE ↵ RETURN DAY/NIGHT VIDEO SETTING ↵ ↵ ↵ LANGUAGE FUNC RESET SAVE & EXIT EXIT ↵ MAIN ↵ MODE:ATW ↵ RETURN IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵...
- Page 5 ↵ MAIN DAY NIGHT ↵ MODE: EXT ↵ SMART IR: CLOSE IMAGE ENHANCE ↵ RETURN DAY/NIGHT VIDEO SETTING ↵ ↵ ↵ LANGUAGE FUNC RESET SAVE & EXIT EXIT ↵ MAIN IMAGE ENHANCE ↵ CONTRAST: AUTO ↵ SHARPNESS: MANUAL 12 IMAGE ENHANCE ↵ SATURATE: AUTO DAY/NIGHT VIDEO SETTING ↵...
- Page 6 ↵ MAIN VIDEO SETTING ↵ HD:TVI ↵ STANDARD:1080P30 IMAGE ENHANCE ↵ RETURN DAY/NIGHT VIDEO SETTING ↵ ↵ ↵ ↵ LANGUAGE FUNC RESET SAVE & EXIT EXIT ↵ MAIN LANGUAGE ↵ ENGLISH ↵ IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵ ↵ ↵...
- Page 7 ↵ MAIN ↵ ↵ IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵ ↵ ↵ LANGUAGE FUNC RESET SAVE & EXIT EXIT ↵ ↵ PRIVACY FUNC ↵ ↵ MODE: ON PRIVACY ↵ AREA0 MOTION ↵ AREA1 RETURN ↵ AREA2 AREA3 COLOR: RED TRANSPARENCY: OFF RETURN ↵...
-
Page 8: Detailed Specifications
DETAILED SPECIFICATIONS Image Sensor 1/2.9” 2 Megapixel Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 1920 (H) × 1080 (V) [1080P] Resolution 2MP (30pfs) Video Output HD-TVI / HD-CVI / AHD / CVBS (Selectable), 1Vp-p Composite Output(75Ω/BNC), 4-in-1 Lens 2.8~12mm Varifocal Day/Night Auto / Color / B&W / EXT... - Page 9 • Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller] • SATA2/SATA3 HDD Slots supporting up to 10TB ea: Models range from 1~10TB (VT-TR2NHA410/810), 1~20TB (VT-TR2NHA1620), 1~80TB (VT-TR2HA3280) •...
-
Page 10: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
