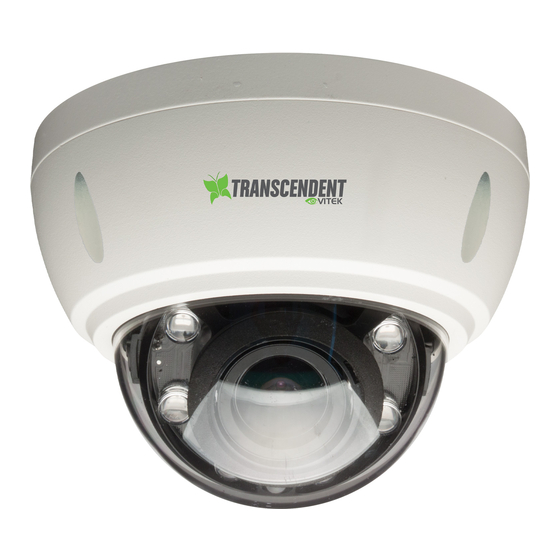

Vitek TRANSCENDENT VTD-T4D6HR5MD Manual

5 megapixel 4-in-1 dual voltage motorized varifocal wdr vandal dome camera with ir led illumination
Hide thumbs

Advertisement

Table of Contents

FEATURES
• 1/2.5" 5.0 Megapixel Progressive Scan CMOS Sensor
• 5MP@20fps/12.5fps, 4MP@30fps/25fps/15fps,
1080P@30fps/25fps
• True Day / Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output
(Selectable)
• 2.8~12mm Motorized Varifocal Lens
• 6 Integrated High Power Dynamic IR LEDs with up
to 165' IR Range
• 3D-DNR Noise Reduction
• Digital Wide Dynamic Range (D-WDR)
• IP66 Weather Resistance, 4000V
Lightning Protection
• Supports CoC (Control over COAX)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty

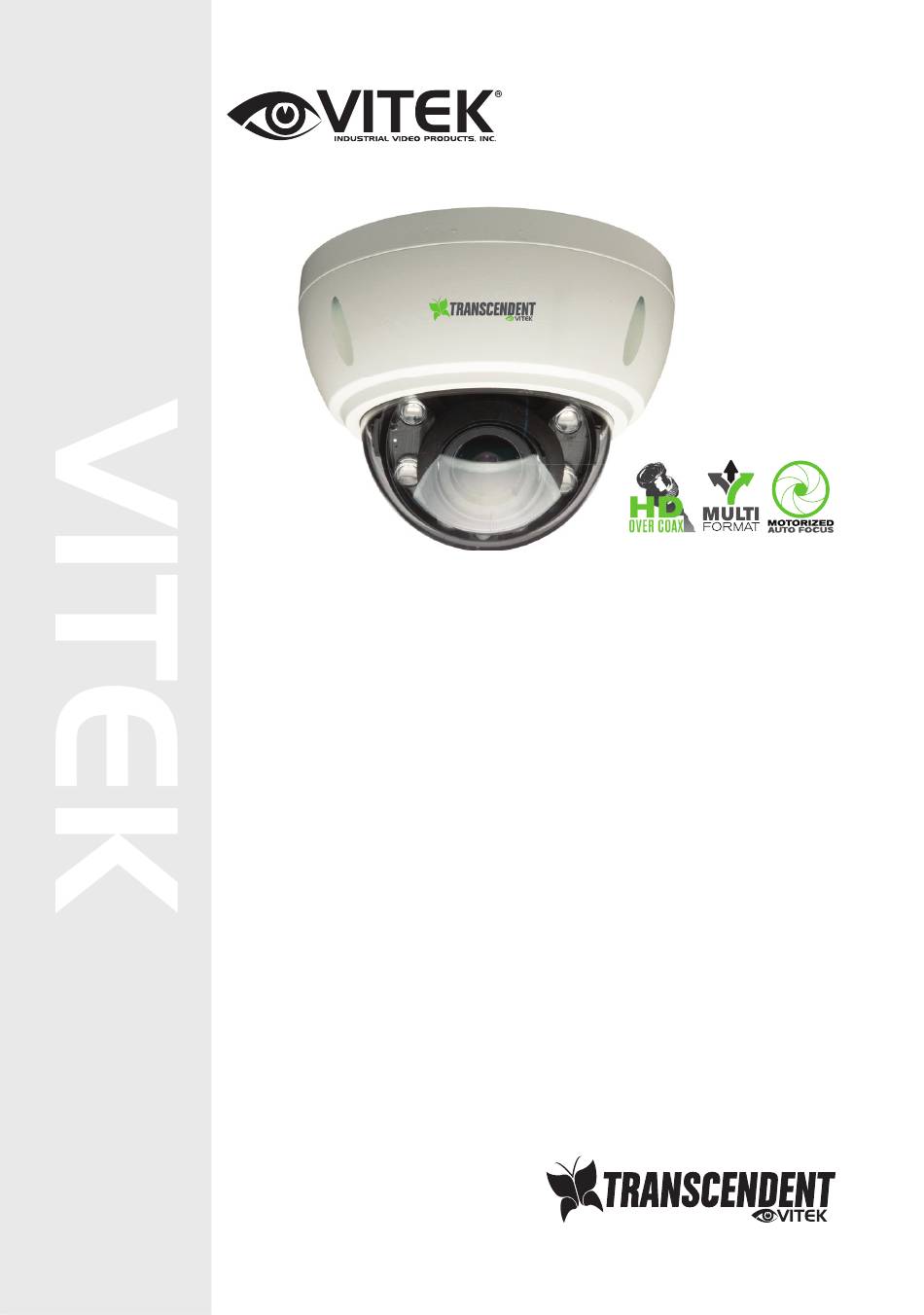

VTD-T4D6HR5MD
5 Megapixel 4-in-1 Dual Voltage
Motorized Varifocal WDR
Vandal Dome Camera
with IR LED Illumination

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRANSCENDENT VTD-T4D6HR5MD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek TRANSCENDENT VTD-T4D6HR5MD

Summary of Contents for Vitek TRANSCENDENT VTD-T4D6HR5MD

  • Page 1 VTD-T4D6HR5MD 5 Megapixel 4-in-1 Dual Voltage Motorized Varifocal WDR Vandal Dome Camera with IR LED Illumination FEATURES • 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor • 5MP@20fps/12.5fps, 4MP@30fps/25fps/15fps, 1080P@30fps/25fps • True Day / Night by IR Cut Filter • HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable) •...

  • Page 2: Safety Precaution

    Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

  • Page 3: Installation

    Installation 1) Disconnect power before installation. 2) Confirm proper 12VDC or 24VAC power supply is used to prevent damage to the camera. 3) Do not use in an environment beyond the boundaries of the specifications. Power & Video Connections Connect the HD-TVI Video or AHD/CVBS video connector to a BNC patch cable, then to a DVR.
  • Page 4 OSD INSTRUCTIONS – VTD-T4D6HR5MD ↵ MAIN EXPOSURE ↵ BRIGHTNESS: 1~100 (Default 38) ↵ EXPOSURE MODE: GLOBAL, BLC 1~7 (Default Global) ↵ RETURN IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET SAVE & EXIT EXIT ↵ MAIN ↵ AF MODE: SEMI, AUTO, MANUAL (Default SEMI) ↵...
  • Page 5 ↵ MAIN ↵ MODE: PRO, GRAY WORLD (Default PRO) ↵ R GAIN: 1~100 (Default 44) ↵ B GAIN: 1~100 (Default 50) IMAGE ENHANCE ↵ RETURN DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET SAVE & EXIT EXIT ↵ MAIN DAY NIGHT ↵...
  • Page 6 ↵ MAIN IMAGE ENHANCE ↵ CONTRAST: AUTO, Manual 1~20 (Default Auto) ↵ SHARPNESS: AUTO, Manual 1~20 (Default Auto) ↵ SATURATE: AUTO, Manual 1~20 (Default Auto) IMAGE ENHANCE ↵ 3DNR: AUTO, Manual 1~20 (Default Auto) DAY/NIGHT VIDEO SETTING ↵ ↵ RETURN LANGUAGE DWDR RESET...
  • Page 7 ↵ MAIN LANGUAGE ↵ ENGLISH ↵ ↵ IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET SAVE & EXIT EXIT ↵ MAIN DWDR ↵ OFF, ON (Default OFF) ↵ ↵ IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET...

  • Page 8: Detailed Specifications

    DETAILED SPECIFICATIONS Image Sensor 1/2.5” 5 Megapixel Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 2704 (H) × 1950 (V) Resolution 5MP@20fps/12.5fps, 4MP@30fps/25fps/15fps, 1080P@30fps/25fps Video Output HD-TVI / HD-CVI / AHD / CVBS (Selectable), 1Vp-p Composite Output(75Ω/BNC), 4-in-1 Lens Motorized 2.8~12mm MegaPixel IR Corrected Varifocal Lens Day/Night True Day/Night by ICR (Extern, Color, B&W, Auto)
  • Page 9 • Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller] • SATA2/SATA3 HDD Slots supporting up to 10TB ea: Models range from 1~10TB (VT-TR8NHA410), 1~20TB (VT-TR8NHA820), 1~80TB (VT-TR8HA3280) •...

  • Page 10: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
