OPERATION MANUAL
FEATURES
• 1/3" 4.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• Motorized Varifocal & Fixed Lens Options
• Infrared IR LED Illumination
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Object Removal/
Museum Search, Line Crossing, and Area Intrusion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• IP66 Weather Resistance & IK10 Impact Rating
• ONVIF Compliant
• Optional Mounts Available
• 12VDC & PoE (Power over Ethernet) Operation
PLEASE NOTE:
Complete User Guide, Software, Tools,
and Updates are available online. Scan
the QR Code or visit:
http://www.vitekcctv.com/Downloads

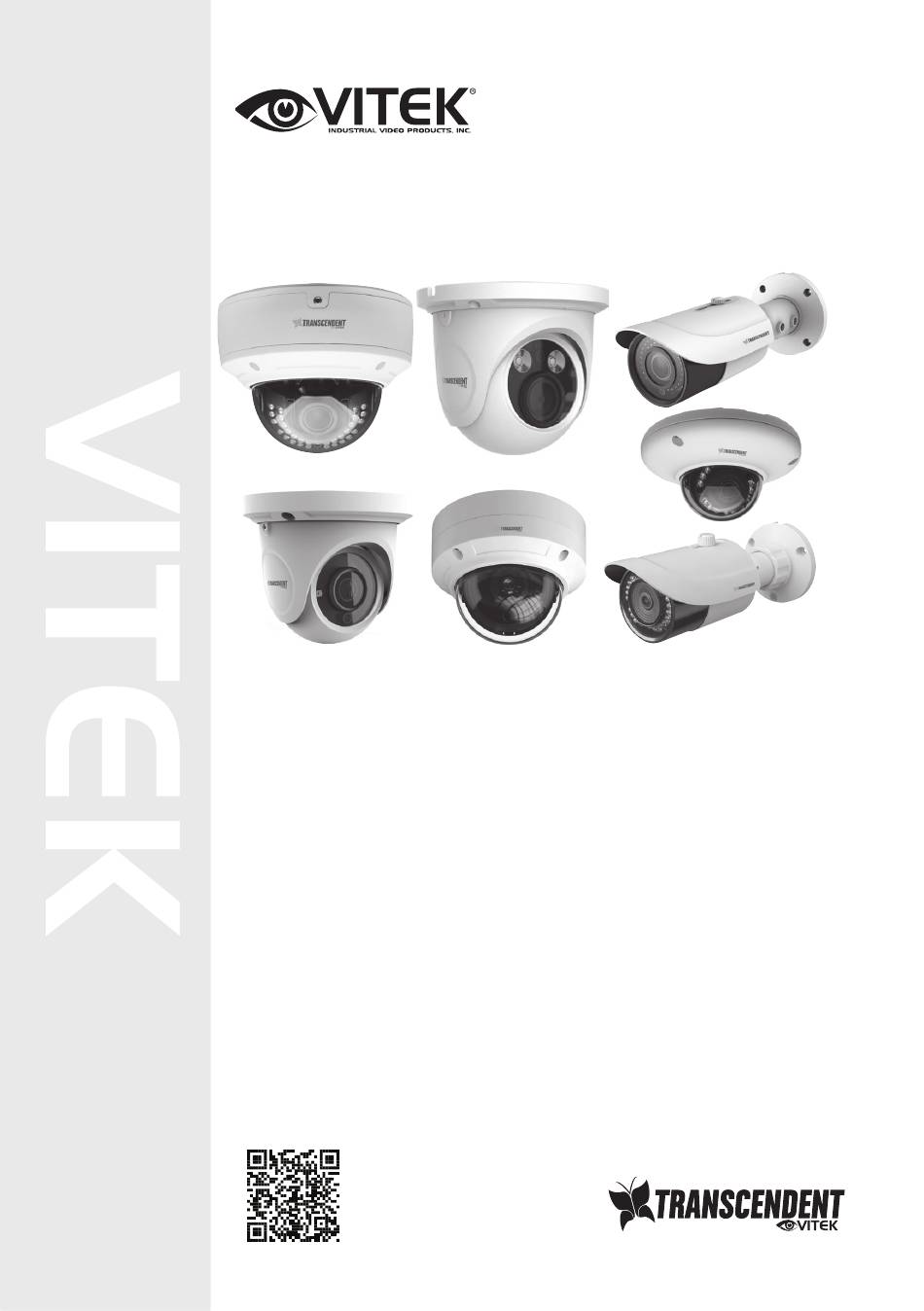

Transcendent IP
4MP Cameras

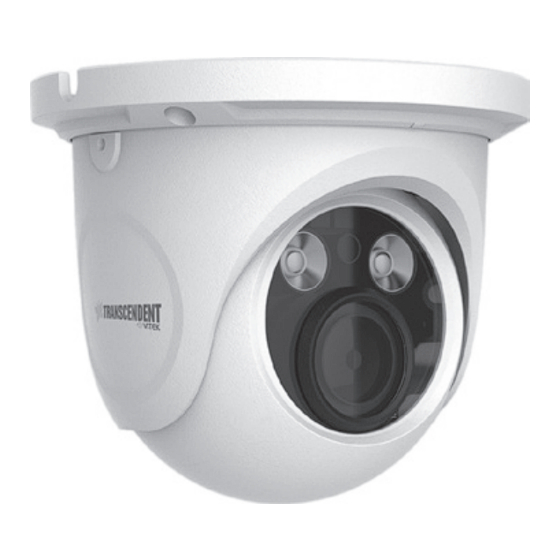

Transcendent Series 4 Megapixel
Indoor/Outdoor WDR IP Dome
Cameras with IR Illumination
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VTD-TNMD4RFS-2
Summary of Contents for Vitek Transcendent VTD-TNMD4RFS-2
- Page 1 Transcendent IP 4MP Cameras Transcendent Series 4 Megapixel Indoor/Outdoor WDR IP Dome Cameras with IR Illumination OPERATION MANUAL FEATURES • 1/3” 4.0 Megapixel Progressive Scan CMOS image sensor • Up to 30fps live view @ 4 MegaPixel (2592x1520) • Motorized Varifocal & Fixed Lens Options •...
- Page 2 Transcendent IP Cameras v4: Operation Manual Please use the specified power supply to connect. Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
-
Page 3: Table Of Contents
Transcendent IP Cameras v4: Operation Manual Table of Contents Introduction ........................4 IE Remote Access ......................5 LAN ........................5 1.1.1 Access through IP-Tool ........................5 1.1.2 Directly Access through IE ......................6 WAN ........................8 Remote Preview ......................11 Remote Live Surveillance .................... - Page 4 Transcendent IP Cameras v4: Operation Manual Maintenance Configuration ................37 1.6.13 Backup and Restore ........................37 1.6.14 Reboot ............................38 1.6.15 Upgrade ............................38 1.6.16 Operation Log ..........................39 Record Search ........................ 40 Photo Search ...................... 40 Photo Search ...................... 40 Video Search .......................
-
Page 5: Introduction
Transcendent IP Cameras v4: Operation Manual 1 Introduction This IP camera is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system is more stable and reliable. -
Page 6: Ie Remote Access
Transcendent IP Cameras v4: Operation Manual 2 IE Remote Access 2.1 LAN In LAN, there are two ways to access the IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser. 1.1.1 Access through IP-Tool Network connection: Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the PC from the CD. -
Page 7: Directly Access Through Ie
Transcendent IP Cameras v4: Operation Manual For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please input the ADMIN password of the administrator and click “Modify” button to modify the setting. The default password of the administrator is “123456”. -
Page 8: Remote Live Surveillance
Transcendent IP Cameras v4: Operation Manual You may use the above default settings when you log in the camera for the first time. You may directly connect the camera to the computer through network cable. Manually set the IP address of the PC as the network segment should be as the same as the default settings of the IP camera. -
Page 9: Wan
Transcendent IP Cameras v4: Operation Manual Open IE browser and input the default address of IP-CAM and confirm. IE browser will ask to download the Active X control. After downloading the Active X control, the login dialog box will pop up. Input the default username and password and then enter to view. -
Page 10: Image Configuration
Transcendent IP Cameras v4: Operation Manual IP Setup Go to the router’s management interface through IE browser to forward the IP address and port of the camera. Please check your router manual for instructions on port forwarding. Router Setup Open IE browser and input its WAN IP and http port to access. Access through PPPoE dial-up Ø... -
Page 14: Video Mask
Transcendent IP Cameras v4: Operation Manual Clear the video mask: Go to video mask interface and then click “Clear” button to delete the current video mask area. 1.3.5 ROI Configuration Go to ImageàROI Config interface as shown below. 1. Check “Enable” and then click “Draw Area” button. 2. -
Page 15: Alarm Configuration
Transcendent IP Cameras v4: Operation Manual Alarm Configuration Alarm configuration includes two submenus: Motion Detection and Alarm Server. 1.4.1 Motion Detection Go to AlarmàMotion Detection to set motion detection alarm. 1. Check “Enable Alarm” check box to activate motion based alarm, choose alarm holding time and set alarm trigger options. - Page 16 Transcendent IP Cameras v4: Operation Manual Move the “Sensitivity” scroll bar to set the sensitivity. Select “Add” and click “Draw” button and drag mouse to select the motion detection area; Select “Erase” and drag the mouse to clear motion detection area. Select “Select All”...
-
Page 17: Alarm Server
Transcendent IP Cameras v4: Operation Manual Set the alarm time from Sunday to Saturday for alarm everyday in one week. The lengthwise means one day of a week; the rank means 24 hours of a day. Green means selected area. Blank means unselected area. - Page 18 Transcendent IP Cameras v4: Operation Manual 1. Enable object removal detection and then select the detection type. Enable Left Detection: The relevant alarms will be triggered if there are items left in the pre-defined alarm area. Enable Item Missing Detection: The relevant alarms will be triggered if there are items missing in the pre-defined alarm area.
-
Page 19: Exception
Transcendent IP Cameras v4: Operation Manual drawing. Click “Clear” button to delete the alarm area. Click “Save” button to save the settings. 5. Set the schedule of the object removal detection. The setting steps of the schedule are the same with that of motion detection. - Page 20 Transcendent IP Cameras v4: Operation Manual 1. Enable the relevant detection as required. Scene Change Detection: The relevant alarms will be triggered if the scene of the monitor video has changed. Video Blur Detection: The relevant alarms will be triggered if the monitor video is blurry. Video Cast Detection: The relevant alarms will be triggered if color cast happens to the monitor video.
-
Page 21: Line Crossing
Transcendent IP Cameras v4: Operation Manual 1. Auto-focusing function should not been enabled for exception detection. 2. Try not to enable object removal detection when light changes dramatically in the scene. 1.5.3 Line Crossing Line Crossing: The relevant alarms will be triggered if someone or something crosses the pre-defined alarm lines. -
Page 22: Intrusion
Transcendent IP Cameras v4: Operation Manual Set the cordon number and direction. You can add 4 cordons at most. Direction：A<->B, A->B and A<-B optional. It is the crossing direction of the intruder who crosses over the alarm line. A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B. - Page 23 Transcendent IP Cameras v4: Operation Manual 1. Enable region intrusion detection alarm and set the alarm holding time. 2. Set alarm trigger options. The setting steps are the same with that of motion detection. Please refer to motion detection chapter for details. 3.
-
Page 24: Network Configuration
Transcendent IP Cameras v4: Operation Manual will change so greatly that the algorithm will stop working temporarily. 2. Try not to enable intrusion detection when light changes dramatically in the scene. 3. Adequate light and clear scenery are very important to intrusion detection. 4. -
Page 25: Port
Transcendent IP Cameras v4: Operation Manual your requirements. Use PPPoE-Click “PPPoE Config” tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP. You can choose either way for the network connection. If you use PPPoE to connect internet, you will get a dynamic WAN IP address. -
Page 26: Server Configuration
Transcendent IP Cameras v4: Operation Manual 1.6.3 Server Configuration This function is mainly used for connecting network video management system. 1. Check “Enable”. 2. Check the IP address and port of the transfer media server in the Transcendent VMS. Then enable the auto report in the Transcendent VMS when adding a new device. -
Page 27: Snmp
Transcendent IP Cameras v4: Operation Manual Create domain name. After you successfully request your domain name, you will see your domain in the list. 3. Input the username, password, domain you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 1.6.5 SNMP To get camera status, parameters and alarm information and remotely manage the camera, you can set... -
Page 28: Rtsp
Transcendent IP Cameras v4: Operation Manual 2. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software you download. 3. Set the “Read SNMP Community”, “Write SNMP Community”, “Trap Address”, “Trap Port” and so on. -
Page 29: Upnp
Transcendent IP Cameras v4: Operation Manual 1. Select “Enable”. 2. RTSP Port: Access port of the streaming media. The default number is 554. 3. RTSP Address: The RTSP address you need to input in the media player. 4. Check “Allow anonymous login…”. 1.6.7 UPNP If you enable this function, you can quickly access the camera via LAN and you don’t need to... -
Page 30: Ftp
Transcendent IP Cameras v4: Operation Manual Sender Address: Sender’s e-mail address. User name and password: Sender’s user name and password. Server Address: The SMTP IP address or host name. Select the secure connection type at the “Secure Connection” pull-down list according to actual needs. SMTP Port: The SMTP port. -
Page 31: Security Configuration
Transcendent IP Cameras v4: Operation Manual To Add FTP: Server Name: The name of the FTP. Server Address: The IP address or domain name of the FTP. Upload Path: The path of uploading the files. Port: The port of the FTP. Use Name and Password: The username and password are used to login the FTP. - Page 32 Transcendent IP Cameras v4: Operation Manual 2. Input user name in “User Name” textbox. 3. Input letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the use type. 5. Input the MAC address of the PC in “Bind MAC” textbox. After binding physical address to the IP-CAM, you can access the device on this PC only.
-
Page 33: Online User
Transcendent IP Cameras v4: Operation Manual 1.6.11 Online User Go to ConfigàSecurityàOnline User. You can view the user who is viewing the camera. 1.6.12 Block and Allow Lists Go to ConfigàSecurityàBlock and Allow Lists interface as shown below. Setting steps are as follows: Check “Enable IP address filtering”... -
Page 34: Reboot
Transcendent IP Cameras v4: Operation Manual Import & Export Settings You can import or export the setting information from PC or to PC. 1. Click “Browse” to select save path for import or export information on PC. 2. Click “Import Setting” or “Export Setting” button. Default Settings Click “Load Default”... -
Page 35: Operation Log
Transcendent IP Cameras v4: Operation Manual 1.6.16 Operation Log To query and export log: 1. Go to ConfigàMaintenanceàOperation Log. 2. Select the main type, sub type, start and end time. 3. Click “Search” to view the operation log. 4. Click “Export” to export the operation log. -
Page 36: Record Search
Transcendent IP Cameras v4: Operation Manual 5 Record Search 5.1 Photo Search Click SearchàPhoto to go to the interface as shown below. You can search the images saved in the SD card. This feature is camera dependent; some cameras do not have an SD card slot. 5.2 Photo Search Click SearchàPhoto to go to the interface as shown below. -
Page 37: Video Search
Transcendent IP Cameras v4: Operation Manual Icon Description Icon Description Save: Click this button to select Save all: Click this button to the save path of the picture on select the save path of the pictures the PC for saving the current to the PC for saving all pictures. -
Page 38: Sd Card Video Search
Transcendent IP Cameras v4: Operation Manual Icon Description Icon Description Play button. After pausing the video, click this button Pause button. to continue playing. Stop button. Speed down. Click it to play the Speed up. previous recording. Click it to play the next Open/close watermark. -
Page 39: Specifications
VTD-TNMD4RFS VTD-TNMD4RFS-2 Transcendent Series 4MP H.265 Indoor/Outdoor WDR Compact IP Dome Camera w/10 IR LEDs & 2.8mm Lens {VTD} {TN} {MD} VITEK Transcendent Mini IR LEDs Fixed Iris Smart Dome Network Dome MegaPixel Lens Functions Camera (888) VITEK-70 | WWW.VITEKCCTV.COM... - Page 40 3.43 x 8.62” (87mm x 219mm) Dia x L VT-TJB01 Optional Junction Box for Cable Management for use with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 41 4.25” x 10.25” (108mm x 267mm) Dia x L VT-TJB01 Optional Junction Box for Cable Management for use with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 42 3.43” x 4.25” (87 × 108mm) Dia x H VT-TJB01 Optional Junction Box for Cable Management for use with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 43 Wall Mount for Transcendent Optional Junction Box for 30 IR LED Vandal Domes Cable Management for use and Varifocal Turret Cameras with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 44 Dimensions 4.57” x 3.58” (150 x 114mm) Dia x H VT-TJB03 Optional Junction Box for Cable Management for use with Transcendent 24 IR LED Vandal Domes (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 45 Wall Mount for Transcendent Junction Box for Cable 30 IR LED Vandal Domes Management for use with and Varifocal Turret Cameras Transcendent 30 IR LED Vandal Domes (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 46 OPTIONAL ACCESSORIES FOR TRANSCENDENT IP CAMERAS VT-TJB02A VT-TJB03 VT-TPDMT-A1 VT-TJB01 Junction Box for Junction Box for Universal 10” Pedestal Junction Box for Cable Management Cable Management Mount Post Adapter - Cable Management for use with for use with Requires VT-TJB02A or for use with all Transcendent 30 IR Transcendent 24 IR...
- Page 47 LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
