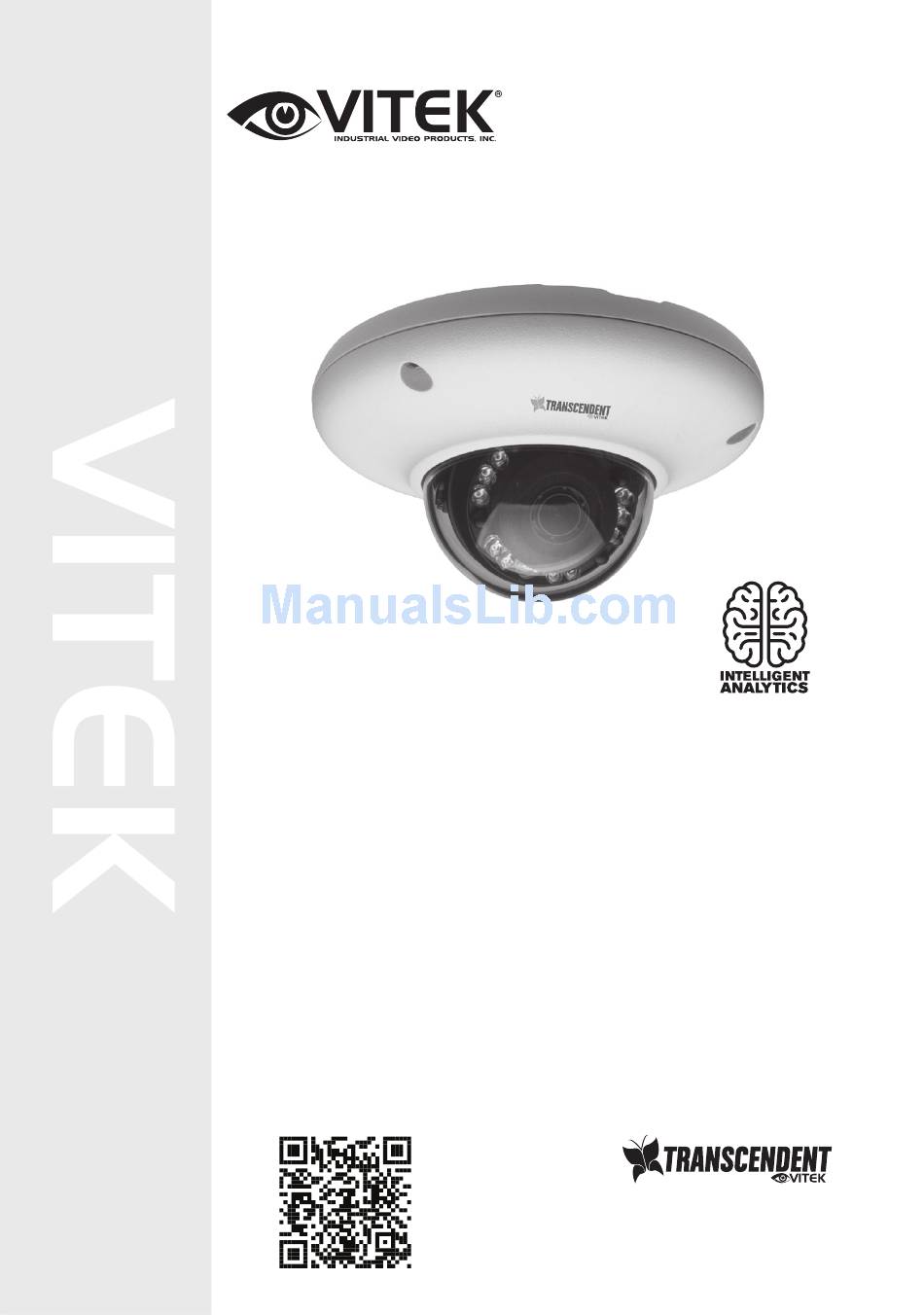

Operating Manual
QUICK START GUIDE
FEATURES
1/3" 4.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8mm or 3.6mm Fixed Iris Lens Options
• 10 Infrared LED's with 65' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Object Removal/
Museum Search, Line Crossing, and Area Intrusion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP66 Weather Resistance & IK10 Impact Rating
• 12VDC & PoE (Power over Ethernet) Operation
VTD-TNMD4RFS
Megapixel H.265 IP Dome
Camera with IR LED Illumination
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series 4
Advertisement
Table of Contents
Related Manuals for Vitek VTD-TNMD4RFS
Summary of Contents for Vitek VTD-TNMD4RFS
-
Page 1: Quick Start Guide
VTD-TNMD4RFS Transcendent Series 4 Megapixel H.265 IP Dome Camera with IR LED Illumination QUICK START GUIDE FEATURES 1/3” 4.0 Megapixel Progressive Scan CMOS image sensor • Up to 30fps live view @ 4 MegaPixel (2592x1520) • 2.8mm or 3.6mm Fixed Iris Lens Options •... -
Page 2: Components And Accessories
Components and Accessories Camera Hex Wrench Quick Guide Drill Template Screws Waterproof Cap Overview RJ-45 Ethernet Power Input CVBS Output Mounting Base Capsule Audio Input... - Page 3 Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. Network Cable 12VDC Optional 12VDC Power Connection.
-
Page 4: Installation
Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill the screw holes and 1 cable hole according to the drill... - Page 5 Installation 4. Before adjusting the three-axis camera mount, preview the camera on a monitor, then adjust as necessary achieve the optimum viewing angle. Pan: 0°~360° Tilt: 0°~70° Rotation: 0°~350° 5. Install the dome bubble on the camera with the included screws, then carefully remove the protective film to complete the installa- tion.
-
Page 6: Lan Configuration
LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. Locate the IP-Tool installer on the included Product Documentation CD, then install on the PC. - Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 8: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- Rubber Plug 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 9 NOTES:...
- Page 10 CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TNR Series Transcendent Series 4, 8, 32, and 64 Channel 5 MegaPixel H.265 Real Time Network Video Recorders with 4K HDMI Output FEATURES • 4, 8, 32, and 64 Channel Stand-alone Real-time IP Network Video Recorders •...
- Page 11 VT-TJB01 VTD-TND4RFS VT-TWMT-A1/PDMT-A1 w/VT-TJB03 VT-TJB03 VTD-TND4RFS-2 VT-TWMT-A1/PDMT-A1 w/VT-TJB03 VT-TJB03 VTC-TNT4RFS VT-TWMT-3 VT-TJB01 VTC-TNT4RMS VT-TWM03 VT-TJB01 VTC-TNB4RMS Included Wall/Ceiling VT-TJB01/TJB03 VTD-TND4RMS VT-TWM03/VT-TWMT-A1/PDMT-A1 w/TJB02A VT-TJB02A VTD-TNMD4RFS VT-TWMT-3 VTC-TNB8RFS Included Wall/Ceiling VT-TJB01 VTC-TNB8RMS Included Wall/Ceiling VT-TJB01/TJB03 VTD-TND8RFS VT-TWMT-3 VT-TJB03A VTD-TND8RMS VT-TWM03/VT-TWMT-A1/PDMT-A1 w/TJB02A VT-TJB02A...
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
