FEATURES
• 1/2.9" 2.1 Megapixel Sony® Exmor™ Progressive Scan
CMOS Sensor
• 30fps live view @ 1920 x 1080p
• True Day/Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output
(Selectable)
• Motorized 2.8~12mm MegaPixel IR Corrected Auto Focus
Varifocal Lens with CoC
• 6 Integrated High Power Dynamic IR LEDs with up to 165'
IR Range
• 3D-DNR Noise Reduction
• True Wide Dynamic Range (WDR)
• 16:9 Video format
• IP66 Weather Resistance
• Supports Up The COAX Control (CoC)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty

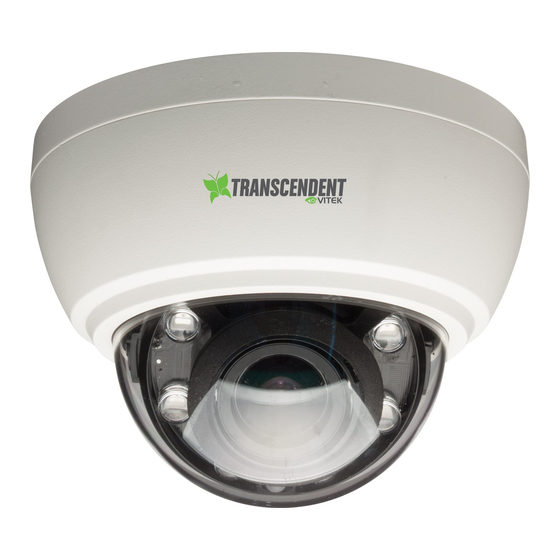

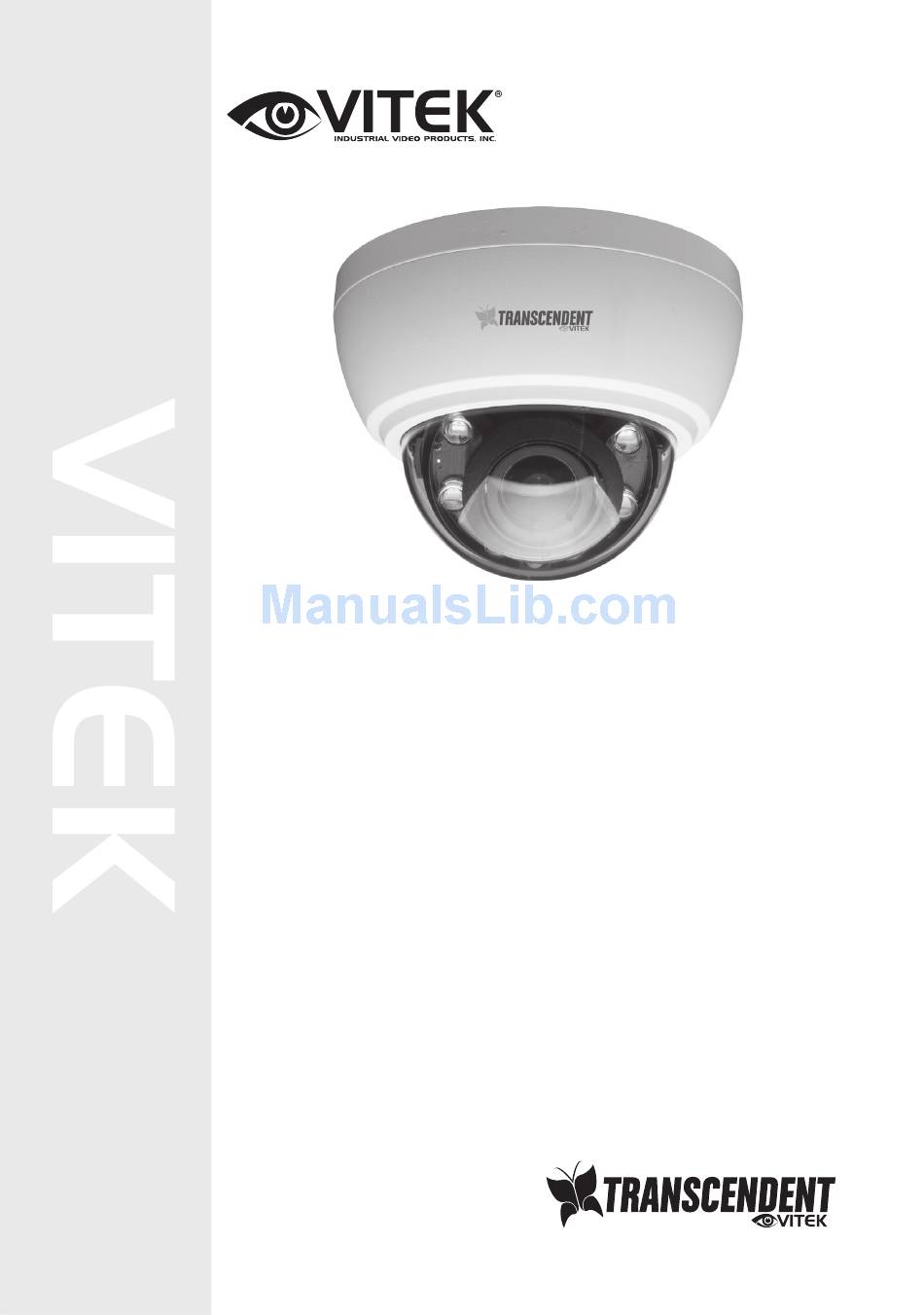

VTD-T4D6HR2MD
2.1 Megapixel 4-IN-1 HD-TVI /
AHD / CVI / CVBS Motorized
Varifocal WDR Dome Camera
with IR LED Illumination
Advertisement
Related Manuals for Vitek VTD-T4D6HR2MD
Summary of Contents for Vitek VTD-T4D6HR2MD
- Page 1 VTD-T4D6HR2MD 2.1 Megapixel 4-IN-1 HD-TVI / AHD / CVI / CVBS Motorized Varifocal WDR Dome Camera with IR LED Illumination FEATURES • 1/2.9” 2.1 Megapixel Sony® Exmor™ Progressive Scan CMOS Sensor • 30fps live view @ 1920 x 1080p • True Day/Night by IR Cut Filter •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Installation
Installation 1) Disconnect power before installation. 2) Confirm proper 12VDC or 24VAC power supply is used to prevent damage to the camera. 3) Do not use in an environment beyond the boundaries of the specifications. Power & Video Connections Connect the HD-TVI Video or AHD/CVBS video connector to a BNC patch cable, then to a DVR. - Page 4 OSD Instruction IRIS IRIS Electronic Light Control (ELC) When using a fixed or manual iris lens, the IRIS camera's ELC can adjust for moderate changes in illumination levels. While it is fine for indoor 2-MOTOR applications in fixed illumination conditions, a fixed iris and ELC circuitry cannot approach the EXPOSURE range of illumination usable with an auto-iris lens...
- Page 5 EXPOSURE EXPOSURE BRIGHTNESS 0-20 selectable. SHUTTER AUTO/FLICKER/MANUAL IRIS 2-MOTOR MANUAL MODE 1/25、1/50、1/100、1/200、 1/400、1/800、1/1600、 EXPOSURE 1/3200、1/6400、1/12800、1/25600、1/30000, selectable. BACKLIGHT BACKLIGHT BRIGHTNESS AUTO DAY&NIGHT DEBLURE/NORMAL., selectable. SHUTTER MANUAL SHUTTER MANUAL COLOR SENS UP SENS-UP OFF、X2、X4、X8、X16、X32 selectable. IMAGE IMAGE RETURN 0-20 selectable MOTION MOTION SYSTEM BACKLIGHT EXIT...
-
Page 6: Day&Night
5. DAY&NIGHT DAY & NIGHT Switch settings of Day and Night mode. IRIS AUTO Used when DAY or NIGHT is determined by light 2-MOTOR level through the lens. EXPOSURE COLOR BACKLIGHT The camera is always in COLOR mode. DAY/NIGHT is disabled and outputs color video Day&... - Page 7 7. DNR 3D-NR (Digital Noise Reduction) DNR function improves picture quality by filtering out signal noise which is generated under low light IRIS conditions. Set off, low, middle or high level. 3DNR (3-dimensional noise reduction) which reduces 2-MOTOR noise by multi frames. It is effective in low light. Set to high will reduce the most noise but the image EXPOSURE will be less sharp and a tailing effect might occur.
- Page 8 9. MOTION MOTION 3 motion detection areas are available and each area is programmable in size and location. IRIS Motion can be detected in the area and displays the results in blocks and/or a text 2-MOTOR message EXPOSURE DET WINDOW BACKLIGHT WINDOW ZONE : Set the detection zone number from 0 to 3.
- Page 9 10. SYSTEM SYSTEM COM. RS-485 Communication setting ID: 0-255, BAUDRATE: 2400/4800/9600/57600/115200 IRIS selectable. 2-MOTOR IMAGE RANGE USER/FULL/COMP, the OFFSET of USER: 0-32. EXPOSURE BACKLIGHT COLOR SPACE HD-CbCr、YUY、SD-CbCr. DAY&NIGHT FRAME RANGE COLOR COLOR COM. 1080P/720P_ (25fps/30fps), selectable. IMAGE RANGE IMAGE RANGE USER USER Monitor...
- Page 10 CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TTAR Series Transcendent Series 4, 8, 16, and 32 Channel 5-In-1 HD-TVI / AHD / CVI / 960H / IP Digital Video Recorders • 4, 8, 16, or 32 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Camera Support •...
- Page 11 Detailed Specifications Image Sensor 1/2.9” 2.1 Megapixel Sony® Exmor™ Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 1920(H) × 1080(V) Resolution HD-TVI / HD-CVI / AHD: 1080p/720p (2.1 MegaPixel) / CVBS: 960H Video Output HD-TVI / HD-CVI / AHD / CVBS (Selectable) Lens Motorized 2.8~12mm MegaPixel IR Corrected Varifocal Lens Day/Night...
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
