QUICK START GUIDE
FEATURES
• 1/2.7" 5.0 MegaPixel CMOS Image Sensor
• Up to 20fps live view @ 5 MegaPixel (2592x1944)
• 2.8mm Fixed Iris Lens
• 16 Infrared LEDs with a 65' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D-DN & 2D-DNR) Noise Reduction
• On Board Motion Detection, Privacy Masking, and Region of
Interest
• H.265, H.264 & MJPEG Compression
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP66 Weather Resistance
• Optional Junction Box Mount (VT-TJB03A) and Wall Mount
(VT-TWMT-3) Available
• 12VDC & PoE (Power over Ethernet) Operation

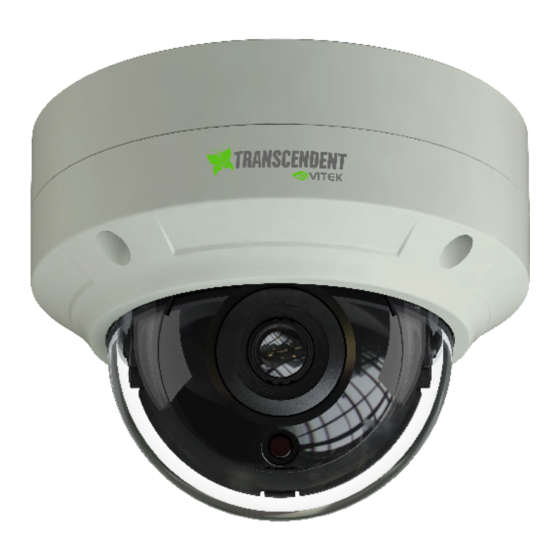

VTD-TND5RFE-2
MegaPixel Indoor/Outdoor WDR
IP Camera with IR LED Illumination
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series 5
Advertisement
Table of Contents
Related Manuals for Vitek VTD-TND5RFE-2
Summary of Contents for Vitek VTD-TND5RFE-2
- Page 1 VTD-TND5RFE-2 Transcendent Series 5 MegaPixel Indoor/Outdoor WDR IP Camera with IR LED Illumination QUICK START GUIDE FEATURES • 1/2.7” 5.0 MegaPixel CMOS Image Sensor • Up to 20fps live view @ 5 MegaPixel (2592x1944) • 2.8mm Fixed Iris Lens • 16 Infrared LEDs with a 65’ IR Range •...
-
Page 2: Components And Accessories
Components and Accessories Rubber plug 4 tapping screws PA 4×25 Camera Quick start guide ×4 Hex Wrench Drill template Plastic plug Overview Network Cable Power Cable Cable Connections First connect the Water- proof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. -
Page 3: Installation
Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: (mm) 1. Attach the drill template to the place where you want to install the camera, then drill the screw holes and 1 cable hole according to the drill... - Page 4 Installation 4. Before adjusting the three-axis camera mount, preview the camera on a monitor, then adjust as necessary achieve the optimum viewing angle. Pan 0°~355° Tilt 0°~67° Rotation 0°~355° 5. Install the dome bubble on the camera with the included screws, then carefully remove the protective film to complete the installa- tion.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . The IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. -
Page 8: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
