FEATURES
• 1/2.3" 8.0 Megapixel [4K] Progressive Scan CMOS Sensor
• 8MP[4K]@15fps/12.5fps, 4MP@30fps/25fps,
1080P@30fps/25fps
• True Day / Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output
(Selectable)
• 3.6~10mm Motorized Varifocal Lens
• 6 Integrated High Power Dynamic IR LEDs with up
to 165' IR Range
• 3D-DNR Noise Reduction
• Digital Wide Dynamic Range (D-WDR)
• IP66 Weather Resistance, 4000V
Lightning Protection
• Supports CoC (Control over COAX)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty
VTD-T4D6HR8MD
8 Megapixel [4K] 4-in-1 Dual Voltage
Motorized Varifocal WDR

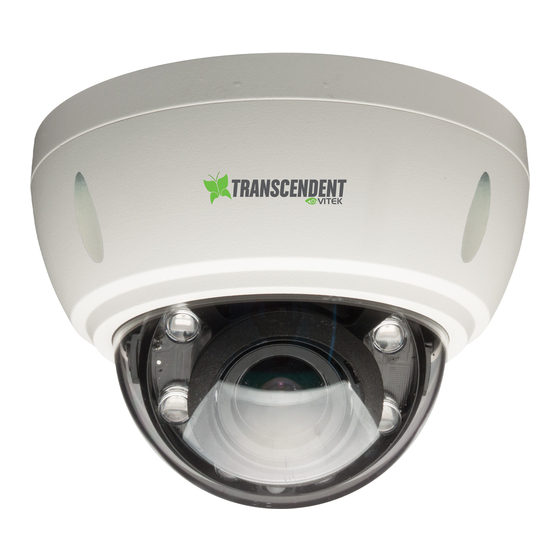

Vandal Dome Camera
with IR LED Illumination
Advertisement
Table of Contents
Related Manuals for Vitek TRANSCENDENT VTD-T4D6HR8MD
Summary of Contents for Vitek TRANSCENDENT VTD-T4D6HR8MD
- Page 1 VTD-T4D6HR8MD 8 Megapixel [4K] 4-in-1 Dual Voltage Motorized Varifocal WDR Vandal Dome Camera with IR LED Illumination FEATURES • 1/2.3” 8.0 Megapixel [4K] Progressive Scan CMOS Sensor • 8MP[4K]@15fps/12.5fps, 4MP@30fps/25fps, 1080P@30fps/25fps • True Day / Night by IR Cut Filter •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Installation
Installation 1) Disconnect power before installation. 2) Confirm proper 12VDC or 24VAC power supply is used to prevent damage to the camera. 3) Do not use in an environment beyond the boundaries of the specifications. Power & Video Connections Connect the HD-TVI Video or AHD/CVBS video connector to a BNC patch cable, then to a DVR. - Page 4 OSD INSTRUCTIONS - VTD-T4D6HR8MD ↵ MAIN EXPOSURE ↵ BRIGHTNESS: 1~100 (Default 34) ↵ EXPOSURE MODE:GLOBAL, ↵ BLC 1~7 (Default Global) IMAGE ENHANCE ↵ RETURN DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET SAVE & EXIT EXIT ↵ MAIN ↵ AF MODE: SEMI ↵...
- Page 5 ↵ MAIN ↵ MODE: PRO, GRAY WORLD (Default PRO) ↵ R GAIN: 1~100 (Default 38) ↵ B GAIN: 1~100 (Default 50) IMAGE ENHANCE ↵ RETURN DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET SAVE & EXIT EXIT ↵ MAIN DAY NIGHT ↵...
-
Page 6: Image Enhance
↵ MAIN IMAGE ENHANCE ↵ CONTRAST: AUTO, Manual 1~20 (Default Auto) ↵ SHARPNESS: AUTO, Manual 1~20 (Default Auto) ↵ SATURATE: AUTO, Manual 1~20 (Default Auto) 3DNR: AUTO, Manual 1~20 (Default Auto) IMAGE ENHANCE ↵ RETURN DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET... - Page 7 ↵ MAIN LANGUAGE ↵ ENGLISH ↵ ↵ IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE DWDR RESET SAVE & EXIT EXIT ↵ MAIN ↵ WDR ON / OFF (DefaultON) ↵ ↵ IMAGE ENHANCE ↵ DAY/NIGHT VIDEO SETTING ↵ ↵ LANGUAGE RESET SAVE &...
-
Page 8: Detailed Specifications
DETAILED SPECIFICATIONS Image Sensor 1/2.3” 8 Megapixel [4K] Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 3840 (H) × 2160 (V) [4K] Resolution 8MP@15fps/12.5fps, 4MP@30fps/25fps, 1080P@30fps/25fps Video Output HD-TVI / HD-CVI / AHD / CVBS (Selectable), 1Vp-p Composite Output(75Ω/BNC), 4-in-1 Lens Motorized 3.6~10mm MegaPixel IR Corrected Varifocal Lens Day/Night... - Page 9 • Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller] • SATA2/SATA3 HDD Slots supporting up to 10TB ea: Models range from 1~10TB (VT-TR8NHA410), 1~20TB (VT-TR8NHA820), 1~80TB (VT-TR8HA3280) •...
-
Page 10: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
