Power Fist 8644171 Manual

V 4.0

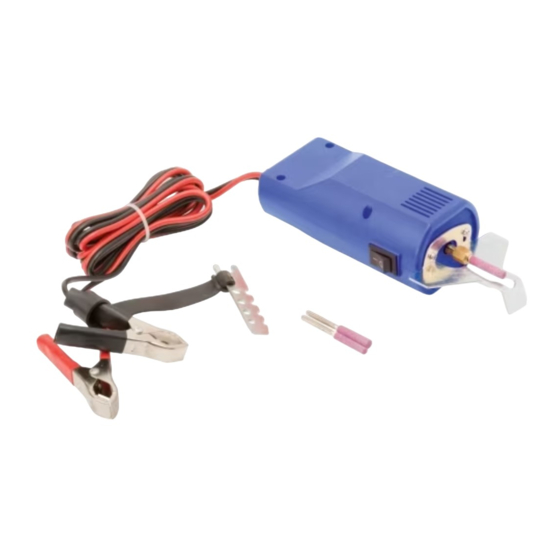

12V Chainsaw
Sharpener
SPECIFICATIONS
Applications
Material
Type
Arbor Size
Voltage Rating
Current Rating
No Load Speed
Includes
Feature(s)
INTRODUCTION
Hand held sharpener can be powered
by an automobile, ATV or UTV when in
remote locations.
SAFETY
WARNING! Read and understand all instructions
before using this tool. The operator must follow
basic precautions to reduce the risk of personal
injury and/or damage to the equipment.
SAVE THESE INSTRUCTIONS
1. Always wear gloves and eye wear.
2. Use only with a 12V DC battery. Avoid contact
with battery acid.
3. Sharpen chain according to the chain
manufacturer's instruction.
4. Do not operate in the presence of flammable
gases, dust or liquids.
Visit www.princessauto.com for more information
12V Chainsaw Sharpener
Sharpening Chainsaw Chains
Steel and plastic
Hand held
1/8 in. dia. stone shank
12 V DC
1.4 (no-load); 2.4 (grinding)
24,000 RPM
One each: 5/32, 3/16 and
7/32 in. sharpening stone
Powered by any 12V battery.
Runs at 22,000 to 24,000
RPM. Features a high-impact
motor housing that is
designed to stay cool
during use. Includes 3
sharpening stones.
WARNING! Follow all instructions for cutter filing
angles and depth gauge settings. Incorrect
sharpening angles, excessive depth gauge
settings or incorrectly shaped depth gauges may
increase the risk of chainsaw kickback. Kickback
can result in severe injury to the saw operator or
to bystanders.
ASSEMBLY & INSTALLATION
SELECTION
1. Choose the stone diameter equal to the file
diameter required for your saw.
2. Refer to the chain manufacturer's
recommendations.
NOTE: If the stone's diameter is 1/32 in. (0.8mm)
smaller than the correct hole, replace the stone.
ASSEMBLY
1. Disconnect the sharpener from the battery
terminals before installing or removing
grinding stone.
8644171
1
