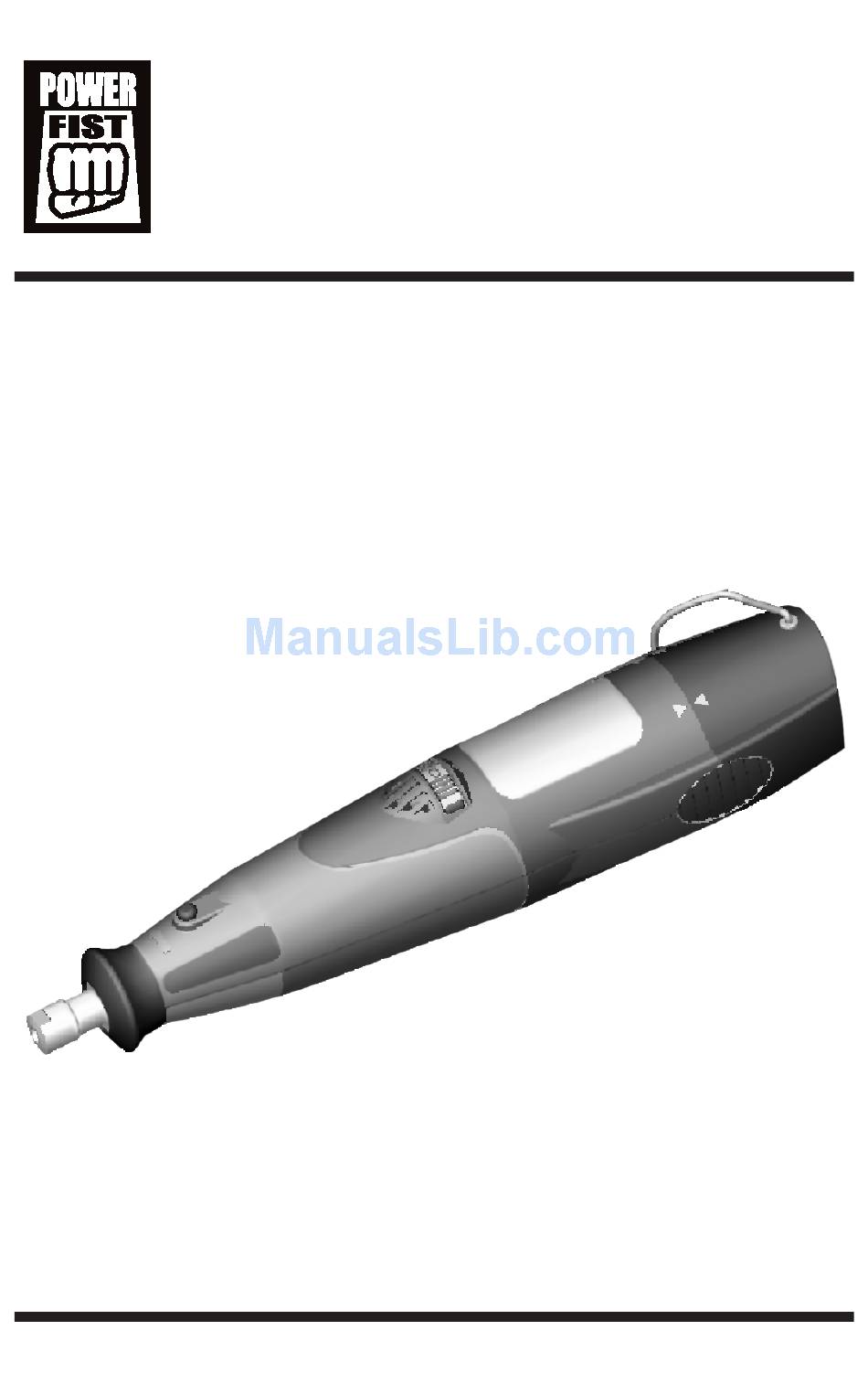

- Page 1 8 8 0 0 4 4 3 3 5 5 9 9 8 8 Cordless Rechargeable Rotary Tool Kit Owner’s Manual...
-
Page 2: General Safety Rules
General Safety Rules Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS. Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. - Page 3 Disconnect battery pack from tool or place the switch in the locked or off position before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. Store idle tools out of reach of children and other untrained persons.
- Page 4 After changing the bits or making any adjustments, make sure the collet nut and any other adjustment devices are securely tightened. Loose adjustment devices can unexpectedly shift, causing loss of control. Loose rotating components can be violently thrown. Take care to not reach in the area of the spinning bit. Allow brushes to run at operating speed at least one minute before using the wheel.
- Page 5 is exiting from the material. Feeding the tool in the wrong direction causes the cutting edge of the bit to climb out of the work. If the workpiece or bit becomes jammed or bogged down, turn the tool “OFF” with the switch.
- Page 6 Battery/charger Before using the battery charger, read all instructions and cautionary markings on the battery charger, battery pack, and product using battery. Use only the charger which accompanied your product or direct replacement as listed in the catalog or this manual. Do not substitute any other chargers. Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way.
-
Page 7: Specifications
WARNING: Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. Rotary Tool Model number 8043598 Voltage rating 9.6V No load speed 5,000-25,000 RPM Collet Capacities 3/32”,1/8”... -
Page 8: Operation Instructions
Assembly WARNING: ALWAYS BE SURE THE TOOL IS IN THE “Off” POSITION BEFORE CHANGING ACCESSORIES, CHANGING COLLETS OR SERVICING YOUR CORDLESS ROTARY TOOL. Collet To loosen, first press shaft lock button and rotate the shaft by hand until the lock engages the shaft preventing further rotation. - Page 9 Important charging notes 1. The battery pack accepts only about 80% of its maximum capacity with its first few charge cycles. However, after the first few charge cycles, the battery will charge to full capacity. 2. The charger was designed to fast charge the battery only when the battery temperature is between 40°F (4°C) and 105°F (40°C).
- Page 10 Using the Cordless Rotary Tool The first step in learning to use the Cordless Rotary Tool is to get the “feel” of it. Hold it in your hand and feel its weight and balance. Feel the taper of the housing. This taper permits the tool to be grasped much like a pen or pencil.
-
Page 11: Maintenance
5. Aluminum, copper alloys, lead alloys, zinc alloys and tin may be cut at various speeds, depending on the type of cutting being done. Use paraffin or other suitable lubricant on the cutter to prevent the cut material from adhering to the cutter teeth. Maintenance WARNING: NO USER SERVICEABLE PARTS INSIDE.
