Summary of Contents for Keysight Technologies U5310A

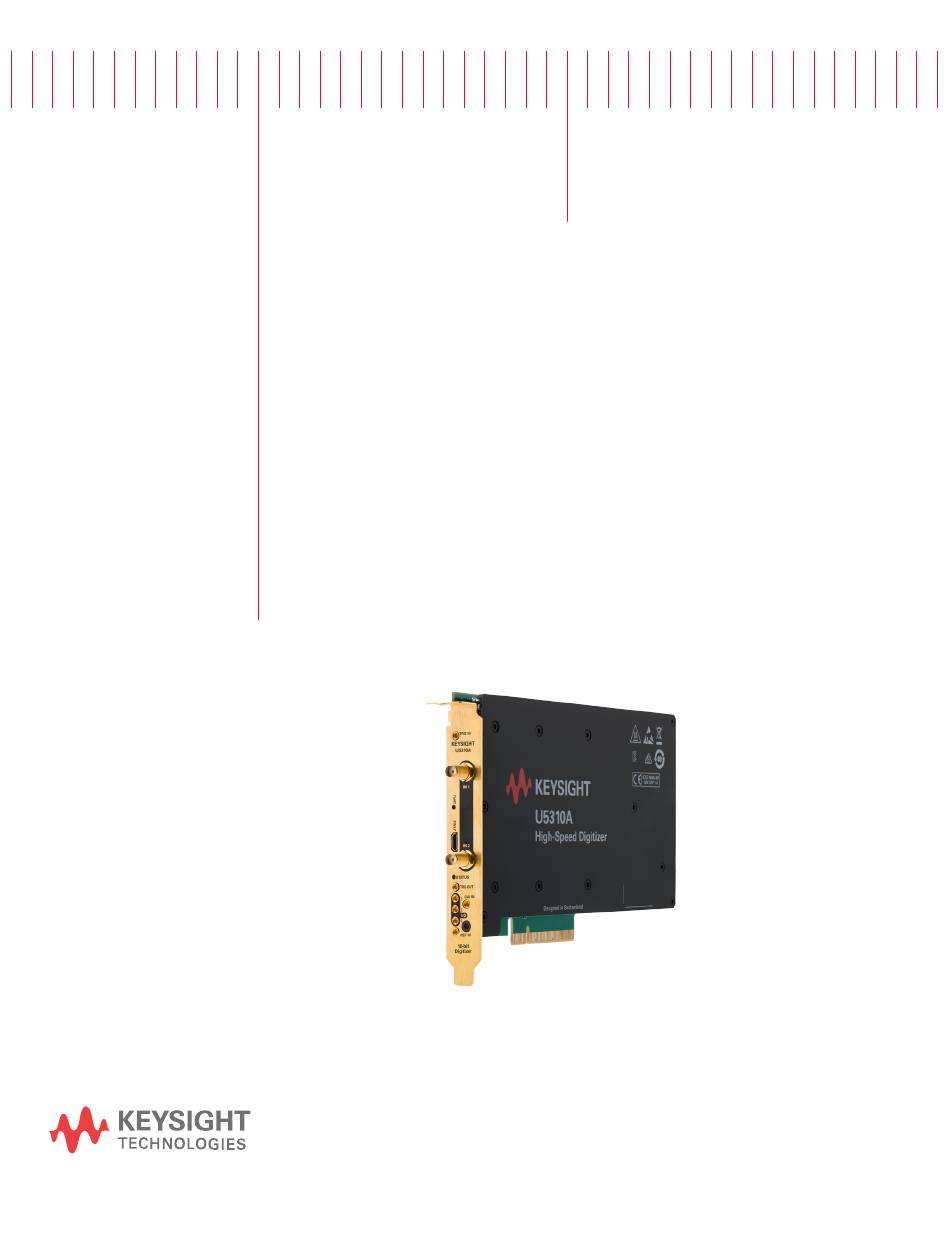

- Page 1 Startup Guide Keysight U5310A PCIe High-Speed Digitizer 2 channels, 10-bit, up to 10 GS/s, DC up to 2.5 GHz bandwidth...
- Page 2 Copyright Notice HEREIN. SHOULD KEYSIGHT AND THE public to use, modify, reproduce, © Keysight Technologies 2015 - 2016 USER HAVE A SEPARATE WRITTEN release, perform, display, or disclose No part of this manual may be...
- Page 3 exceed safe handling conditions which possible injury. Read and follow all switching cards directly to AC mains. can cause discomfort or burns if installation, operation, and When connecting sources to switching touched. In the event of a module maintenance information carefully cards, install protective devices to limit exceeding the full temperature range, before using the product.
- Page 4 Annex 1, this product is classified as “Monitoring and Control To prevent electrical shock, disconnect instrumentation” product. Do not the Keysight Technologies instrument No operator serviceable parts inside. dispose in domestic household waste. from mains before cleaning. Use a dry Refer servicing to qualified personnel.
-
Page 5: Table Of Contents
Reversing the orientation of the fan assembly U5310A Front Panel Features Front Panel Connectors Front Panel LEDs Step 5: Verify Operation of the U5310A Module Keysight Connection Expert Driver Graphical Interface: MD2 Soft Front Panel Perform a Verification of the U5310A (optional) -
Page 6: Documentation Map
Documentation Map Documentation Map Keysight U5310A Startup Guide... -
Page 7: U5310A Pcie High-Speed Digitizer Introduction
U5310A PCIe High-Speed Digitizer Introduction The scope of this Startup Guide is to detail the processes of receiving and installing the Keysight U5310A PCIe High-Speed Digitizer, installing the required software, and verifying basic module operation. If you have any questions after reviewing this information, please contact your local Keysight representative or contact us through our website at www.keysight.com/find/contactus. - Page 8 This Start-Up Guide is intended to lead the user through the four steps of product installation as summarized in the diagram below. An optional fifth step shows how to perform an operational verification of the U5310A PCIe High-Speed Digitizer. Step 1: Unpack and Inspect...
-
Page 9: Step 1: Unpack And Inspect The Module
(see warranty information at beginning of this document). To avoid damage when handling a module, do not touch any exposed components or connector pins. http://www.keysight.com/find/tips for information on preventing damage to your Keysight equipment. Keysight U5310A Startup Guide... -
Page 10: Return A Module For Service
Name and address of owner. A P.O. box is not acceptable as a return address. Product model number (for example, U5310A). Product serial number. The serial number label is located on the top cover of the module. The serial number can also be read from the Soft Front Panel interface, but only after the hardware is installed. -
Page 11: Step 2: Verify U5310A Shipment Contents
Step 2: Verify U5310A Shipment Contents Step 2: Verify U5310A Shipment Contents The following items are also included with your U5310A PCIe High-Speed Digitizer order: Part Number Quantity Description U5310A PCIe High-Speed Digitizer. U1092-80001 Coaxial cable, MMCX (male) to BNC (male), 1 m. -
Page 12: Step 3: Install The Software
Recommended models are: HP Z420, HP Z440, or Dell T5810. Install the Software If the Keysight MD2 software is installed on your computer, first uninstall the Keysight MD2 software from the Control Panel > Programs and Features before installing the Keysight MD2 High-Speed Digitizer Software. Keysight U5310A Startup Guide... -
Page 13: Keysight Io Libraries Suite (Iols)
2. Follow the installer prompts. Choose a "Complete" installation to install all soft- ware and documentation, or a "Custom" installation to select from a listing of components and other features. 3. After installation is complete, please shut-down the PC. Keysight U5310A Startup Guide... -
Page 14: Step 4: Install The Module
The SATA power adaptor (8121-2533) should be connected to a single card in order to guaranty the correct power supply and behavior of the digitizer. The U5310A is optionally supplied with a card retainer (included if ordered as U5310A-001, or available separately by ordering stand alone extender). Please contact support for the reference. -
Page 15: Fitting The Module With The Optional Card Retainer Into Your Pc
If the PC is a T5810, the PCIe-card retention (support slots) has to be removed and adapted by removing two of the extension blocks before inserting the U5310A. For details, please contact support www.keysight.com/find/assist. Diagram showing U5310A fan and support assembly fixings. Removing the card retainer 1. Remove the screw (A in the figure). -
Page 16: Reversing The Orientation Of The Fan Assembly
7. Refit the four screws (C), push the fan unit upwards away from the circuit board and tighten the four screws (0.3 Nm torque). 8. Put back the cables and the cover. 9. Refit the four screws (C). Keysight U5310A Startup Guide... -
Page 17: U5310A Front Panel Features
Step 4: Install the Module U5310A Front Panel Features Front Panel Connectors Please note that analog Input IN 1 and IN 2 have a maximum voltage limitation of ±1.5 Vmax while using the default 1V full scale range (±0.5 Vmax if using 0.25V FSR). -
Page 18: Front Panel Leds
If warning or error status is observed, please try the following steps: Power-cycle the PC (If using a PCIe expansion chassis, observe the power sequence requirements). If the error persists please contact Keysight technical support http://www.key- sight.com/find/assist. Keysight U5310A Startup Guide... -
Page 19: Step 5: Verify Operation Of The U5310A Module
Step 5: Verify Operation of the U5310A Module Step 5: Verify Operation of the U5310A Module Keysight Connection Expert The intention of this step is to verify correct operation of the newly installed module. Run Keysight Connection Expert by clicking the task bar icon , and select Connection Expert. -
Page 20: Driver Graphical Interface: Md2 Soft Front Panel
Step 5: Verify Operation of the U5310A Module Driver Graphical Interface: MD2 Soft Front Panel The Keysight MD2 SFP (Soft Front Pannel) is a graphical interface for High-Speed Digitizer Instrument Drivers that enables the control of any supported digitizers. The MD2 SFP can be launched from Keysight Connection Expert, directly from the Windows Start Menu >... -
Page 21: Perform A Verification Of The U5310A (Optional)
Perform a Verification of the U5310A (optional) Requirements for Verification The correct operation of the U5310A may be verified by the use of a simple application which carries out several performance checks on a signal acquired from an external Function Generator. - Page 22 Step 5: Verify Operation of the U5310A Module AgMD2Verify checks the version of the Control FPGA firmware. If the version is not up-to-date, the tool will automatically propose to update the firmware using the "Firmware Update Utility". Once the Control FPGA firmware has been updated successfully, please power off your computer and restart it again for the update to take effect.
- Page 23 Keysight U5310A Startup Guide...
- Page 24 This information is subject to change without notice. © Keysight Technologies 2015 - 2016 Edition 2, September, 2016 Printed In Switzerland U5310-90001 www.keysight.com...
