Summary of Contents for Keysight Technologies U1701B

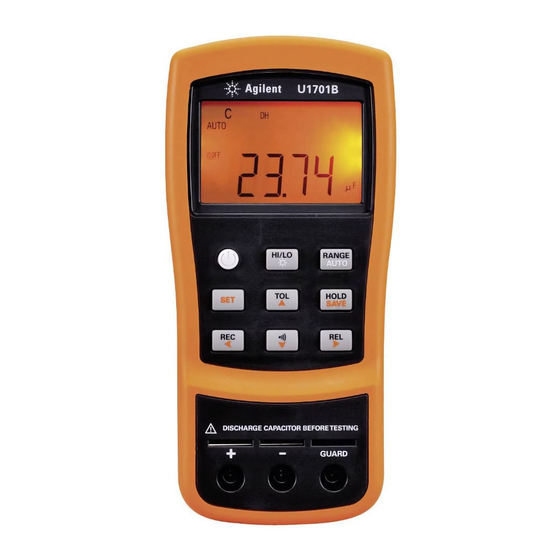

- Page 1 Keysight U1701B Dual Display Handheld Capacitance Meter Quick Start Guide...
-
Page 2: Contacting Keysight
Do not proceed beyond a CAUTION notice until the indicated conditions are fully understood and met. For further safety information details, refer to the Keysight U1701B Dual Display Handheld Capacitance Meter User’s Guide. Keysight U1701B Quick Start Guide... - Page 3 If anything is missing or damaged, please contact the nearest Keysight Sales Office. For more detailed information, please refer to the Keysight U1701B Dual Display Handheld Capacitance Meter User’s Guide on Keysight Web site (www.keysight.com/find/handheld-tools). To avoid damage to the device, do not exceed the input WARNING limit.
-
Page 4: Capacitance Measurement
4 Remove your hands from capacitor to allow it to be tested. 5 Read the measurement on the display. To avoid possible damage to the meter or the CAUTION equipment under test, disconnect circuit power and discharge the capacitor before measuring capacitance. Keysight U1701B Quick Start Guide... -
Page 5: Features And Functions
Set high/low limits for compare mode Static recording mode Compare mode Tolerance mode Relative mode HOLD Data hold SAVE To store the setting value into the memory RANGE Manual range AUTO Auto range HI/LO High/Low limits Backlight display Keysight U1701B Quick Start Guide... -
Page 6: How To Enter Setup Mode
4 Press and hold for more than 1 s to save your setting. 5 Press for more than 1 s to exit setup mode. Keysight U1701B Quick Start Guide... - Page 7 Press present readings momentarily – MAX, MIN, AVG or MAX AVG MIN annunciator will be turned on respectively to indicate which value is being displayed To exit the recording mode Press more than 1 s Keysight U1701B Quick Start Guide...
- Page 8 – TOL annunciator will be displayed. – The tolerance will be displayed on the secondary display. – The instrument range will be locked. To exit tolerance mode Press hold for more than 1 s Keysight U1701B Quick Start Guide...
- Page 9 – The secondary display will indicate C01 to C25 according to the comparison record that has been selected. To save comparison set for next entry Press hold for more than 1 s Keysight U1701B Quick Start Guide...
- Page 10 Press – To select next compare setting. To cycle momentarily through L01 (or H01) to L25 (or H25), then return to L01 (H01) setting. Keysight U1701B Quick Start Guide...
- Page 11 – the source of the ambient EM field and noise is removed, – the product is protected from the ambient EM field, or – the product cabling is shielded from the ambient EM noise. Keysight U1701B Quick Start Guide...
- Page 12 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U1701B Quick Start Guide...
- Page 13 This information is subject to change without notice. Always refer to the Keysight website for the latest revision. © Keysight Technologies 2009, 2012, 2014, 2017 Edition 4, July 1, 2017 Printed in Malaysia *U1701-90047* U1701-90047 www.keysight.com...
