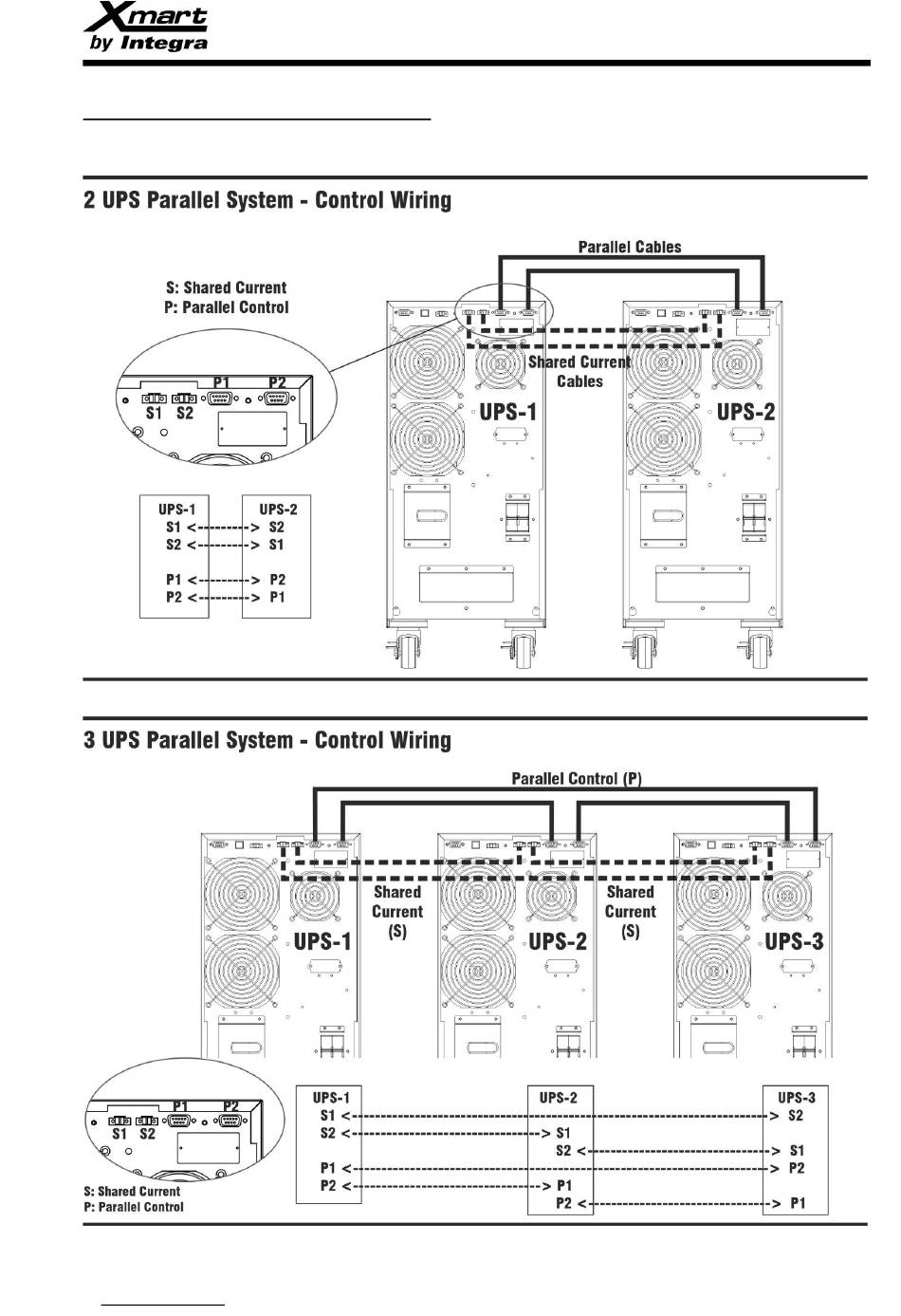

CONTROL CABLES: CONNECTION DIAGRAM
Parallel system requires all UPS share some important control information by parallel control cables. There are 2 kind of control cables:
SHARED CURRENT & PARALLEL CONTROL. They must be connected as indicated in below figure:
