Technical information on this manual is property of XMART
▪
or partially without written approval of XMART.
XMART can introduce modifications in their products or manuals without further notice. .
▪
XMART is not responsible of mistakes or missing information in this manual.
▪
XMART is not responsible for wrong use a third part can do of this information.
▪
Trademarks and logos in this manual are property of their owners.
▪
www.xmart-ups.com

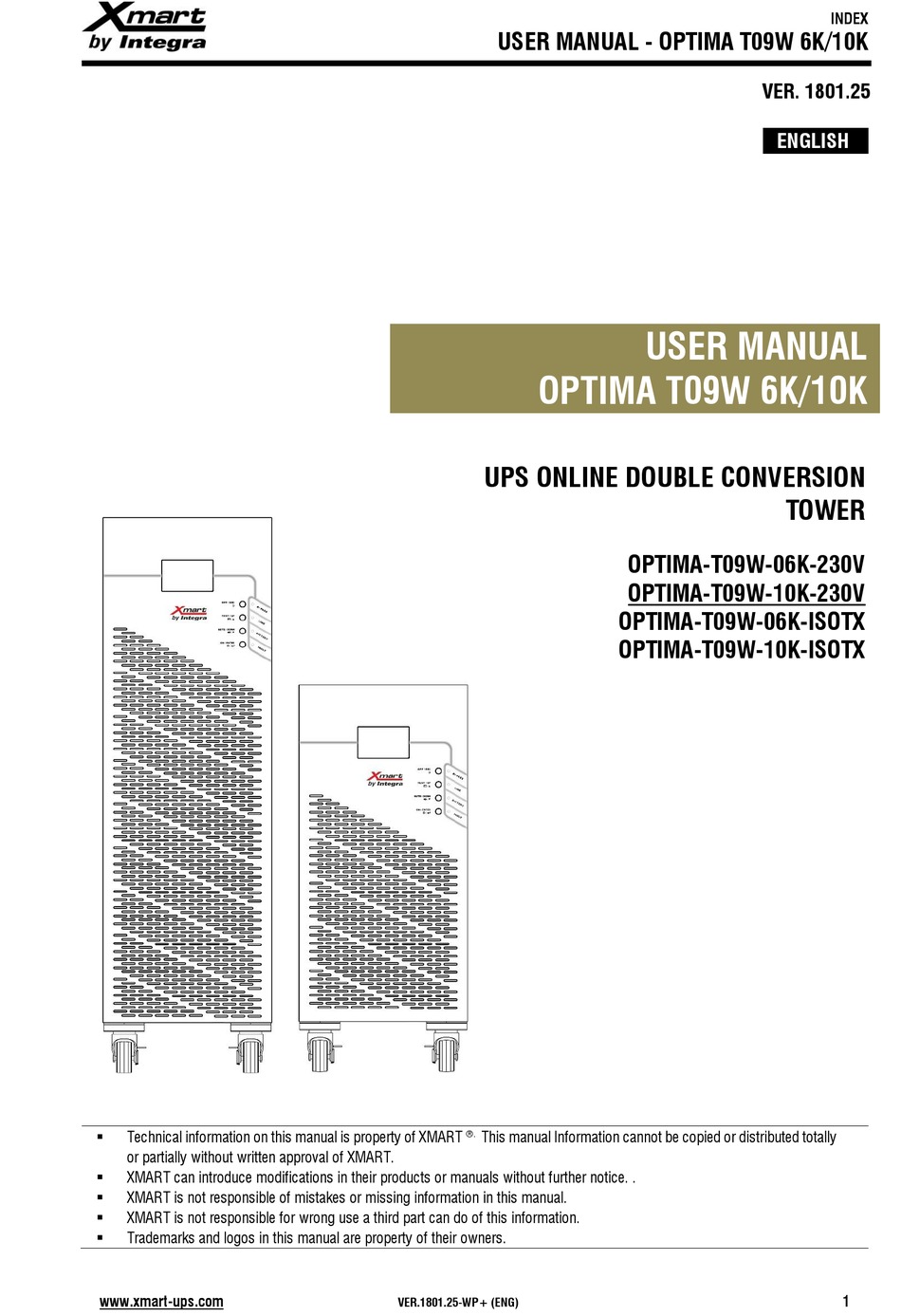

USER MANUAL - OPTIMA T09W 6K/10K
OPTIMA T09W 6K/10K
UPS ONLINE DOUBLE CONVERSION
.
This manual Information cannot be copied or distributed totally
VER.1801.25-WP+ (ENG)
VER. 1801.25
ENGLISH
USER MANUAL
TOWER
OPTIMA-T09W-06K-230V
OPTIMA-T09W-10K-230V
OPTIMA-T09W-06K-ISOTX
OPTIMA-T09W-10K-ISOTX
INDEX
1
Advertisement
Table of Contents
Related Manuals for Xmart OPTIMA-T09W-06K-230V
Summary of Contents for Xmart OPTIMA-T09W-06K-230V
- Page 1 XMART is not responsible of mistakes or missing information in this manual. ▪ XMART is not responsible for wrong use a third part can do of this information. ▪ Trademarks and logos in this manual are property of their owners.
-
Page 2: Specifications
7. UPS CONFIGURATION 8. START & OPERATION: INDIVIDUAL & PARALLEL UPS 9. ERROR & ALARMS CODES / TROUBLESHOOTING 10. SOFTWARE 11. BATTERIES: MAINTENANCE 12. BATTERIES & CHARGER: CONFIGURATION & SERVICE 13. SUPPORT & WARRANTY 14. REAR PANEL 15. SPECIFICATIONS www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 3: General Safety Instructions
Please be environmentally responsible and recycle this product through your recycling facility at its end of life. Do not dispose of this product as unsorted municipal waste. Follow local municipal waste electrical and electronic equipment (WEEE). www.xmart-ups.com VER.1801.25-WP+ (ENG) - Page 4 It also could affect its performance and the compliance of regulations. XMART is not responsible of modifications made after manufacturing. WARNING: This is a category C3 UPS product. This category includes UPS with an output current exceeding 16A and intended for use in the second environment.
-
Page 5: Product Description
ISOTX is the version equipped with an output isolated transformer able to provide 2 galvanic isolated outputs 120Vac. Each output with a max. power of 50% of total UPS power. IMPORTANT: Because internal loses in ISOTX (equivalent to 7% of total power), maximum power output will be about 93% of total UPS power. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 6: Installation
Inrush current typical of motor based system could overload this UPS. We strongly recommend to place a warning sign on main electrical board to avoid external personnel manipulate AC lines during ▪ revision and start-up work is performed. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 7: Warning Label
This is because a dangerous voltage could be feed by the UPS on the electrical board even AC main service is out of order. Label design should include following information: VOLTAGE BACKFEED RISK UPS CONNECTED TO THIS CIRCUIT Before working on this circuit: * Isolate UPS * Check for dangerous voltage in all circuit terminals. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 8: Site Inspection
For Ex models (with external batteries) there must be also DC Circuit Breakers between UPS and battery bank. Some Models include a DC breaker on the rear panel for external battery pack protection; otherwise an external DC Circuit breaker must be installed. www.xmart-ups.com VER.1801.25-WP+ (ENG) - Page 9 EXTERNAL BATTERY CABINETS (XBAT) – CONNECTION PROCEDURE External batteries must be connected to UPS by using original XMART DC cable provided inside the box, IMPORTANT: All OPTIMA RT 6K and 10K work with 240VDC battery voltage. This voltage is provided by battery packs by connecting 20 batteries 12VDC in series.
- Page 10 DC LINES: UPS TO EXTERNAL BATTERIES PACKS (XBAT) This UPS could be connected to external Battery packs (named XBAT) to provide longer runtime under Battery mode. Original XMART XBAT comes with its own DC cable and DC breaker located on rear panel. In case of using non original external battery packs, user must...
-
Page 11: Input And Output Connections
IMPORTANT: In case of differences between below figures and information printed on the UPS you must follow information printed on UPS. OPTIMA 6K/10K 230 UPS with direct output from inverter This model has 1phase input 220Vac Output is 1phase selectable between: 208, 220, 230 or 240Vac www.xmart-ups.com VER.1801.25-WP+ (ENG) - Page 12 1 output 120V: By connecting 2 separate outputs in parallel. This output can drive 100% of total UPS power. ▪ 1 output 220V: By connecting 2 individual outputs in series. This output can drive 100% of total UPS power. ▪ www.xmart-ups.com VER.1801.25-WP+ (ENG)
-
Page 13: Operation Modes
BYPASS mode is disable to avoid a not acceptable frequency value at output. 2.- When CF function is activated, maximum power output is de-rated to 60% of maximum nominal capacity. For example, for a 10KVA (8KW) model, when CF is activated maximum output is decreased to 6KVA (4.8KW). www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 14: Maintenance Bypass
Verify UPS enters in static bypass mode. Bypass LED must be ON and online LED must be OFF Actuate external bypass switch to OFF state (open). In case of using a XMART MBS, set it to BYPASS position and re-install its safety plate. -
Page 15: Operation Mode
OFF. A- FC CONVERTER symbol is activated to indicate FC conversion mode is active. FREQUENCY CONVERTER MODE A- When a failure is detected, UPS display error code with alert symbol on screen. ERROR/FAILURE MODE www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 16: Leds Description
Some no critical alarms can be muted when this key is selected DOWN When UPS is in configuration mode, this key operates as DOWN () < TEST> < MUTE> CONFIGURATION MODE By pressing these 2 keys at same time, UPS enters in configuration mode. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 17: Lcd Description
(2) + (3) : Alarm/error code (2) : Menu ID (in CONFIGURATION mode) (4) : Not used in this model (5) : Battery fault active (6) : Battery low level (7) : Output Overload detected (8) : Output short-circuit detected www.xmart-ups.com VER.1801.25-WP+ (ENG) - Page 18 Supplied Power is between 76 - 100% BATTERY LEVEL METER It shows by a 4 segments bar the charge level of batteries: 25%: Between 0 - 25% 50%: Between 26 - 50% 75%: Between 51 - 75% 100%: Between 76 - 100% www.xmart-ups.com VER.1801.25-WP+ (ENG)
-
Page 19: Ups Configuration
Charger voltage (floating state) ● ● ● ● ● Charger voltage (constant state) ● ● ● ● ● Max current for charger ● ● ● ● ● Battery configuration ● ● ● ● ● Remaining runtime calibration ● Function available. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 20: Configuration Menu
- Valid input FREQUENCY range for bypass mode can be configured by setting high limit and low limit: PAR 03: sets high limit (in Hz) PAR 02: sets low limit (in Hz) NOT USED IN THIS MODEL www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 21: Maximum Runtime
NOT USED IN THIS MODEL NOT USED IN THIS MODEL BATTERY VOLTAGE ADJUSTMENT: ** NO MODIFICATIONS RECOMMENDED – ONLY BY TECHNICIANS ** Battery voltage can be adjusted ADD: for increasing SUB: for decreasing Set values with keys: & www.xmart-ups.com VER.1801.25-WP+ (ENG) - Page 22 Value can be adjusted by setting a multiplier from 0.5 to 2.0 If current real runtime is 90% of calculated runtime, operator should set multiplier as www.xmart-ups.com VER.1801.25-WP+ (ENG)
-
Page 23: Bypass Mode
Reserved / Not used (Reservado / Sin uso) Not Allowed (No permitido) Allowed (permitido) AUDIBLE ALARMS BEEPS ERROR/FAILURE: Continuously BATTERY MODE: 1 "Beep" / 4 seconds BYPASSMODE: 1 "Beep" / 2 minutes 1 "Beep" / 1 second. LOW BATTERY: www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 24: Inspection Before Start Up
NOTE 1: If any error or warning message is indicated in LCD, please revise Troubleshooting section of this manual. NOTE 2: UPS batteries maybe are not fully charged. UPS could require about 4 to 6 hours to recharge batteries up to 100% of their capacity. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 25: Alarm Symbols
Some errors and alarms could block UPS until problem is solved and UPS unblocked by operator. Operator must be sure cause of problem has been solved before clear alarm and unblock UPS. Alarm can be deleted by pressing <UP> and <DOWN> keys at same time, when UPS is in BYPASS mode. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 26: Error Codes
DC BUS start failure DC BUS High DC BUS Low DC BUS unbalanced INVERTER start failure INVERTER High voltage INVERTER Low voltage SHORT CIRCUIT detected at INVERTER output SHORT CIRCUIT detected at Battery SCR OVER TEMPERATURE OVERLOAD www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 27: Troubleshooting
Then restart UPS. IMPORTANT: In case of extreme failure or when burning smell is detected, UPS input lines must be powered off immediately and UPS must be turned-off by <OFF> button. Wait until LCD turns-off. Then call technical service. www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 28: Software
NOT USED Pin 16 CONNECTED OPEN OPEN OPEN OPEN Pin 17 OPEN CONNECTED OPEN OPEN OPEN Pin 18 OPEN OPEN CONNECTED OPEN OPEN Pin 19 OPEN OPEN OPEN CONNECTED OPEN Pin 20 OPEN OPEN OPEN OPEN CONNECTED www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 29: Support And Warranty
- In no event will XMART be liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental, or consequential damages. -
Page 30: Rear Panel
In case of using an optional ISOTX, maximum output of the system will be reduced in 7% because internal loses in the ISOTX. For example: In a 10KVA system with ISOTX, will be able to provide 9.3KVA. RS232 COMMUNICATION PORT Serial communication port – Pinout: Pin 2: RX Pin 3: TX Pin 5: GND www.xmart-ups.com VER.1801.25-WP+ (ENG) -
Page 31: Specifications Table
Charging VDC / Voltaje del cargador (Floating) 273.0 VDC Temperature Compensation / Compensación T. 120mV/ºC per battery (Input Air Temp/ Temp. Aire entrada: 25-50ºC) Shutdown battery Voltage / Voltaje DC Apagado 214VDC (0-30% load) / 204VDC (30-70% load) / 192VDC (load >70%) www.xmart-ups.com VER.1801.25-WP+ (ENG) - Page 32 Note 5: If external ISOTX module is used, total max. power is reduced in 7%. Si se usa módulo ISOTX, la potencia final máx. será la del UPS menos 7% Note 6: ECO, prog. outlet and parallel function not available. Función ECO, conexión paralela y salida programable No disponible para este modelo www.xmart-ups.com VER.1801.25-WP+ (ENG)
- Page 33 INDEX USER MANUAL - OPTIMA T09W 6K/10K NOTAS www.xmart-ups.com VER.1801.25-WP+ (ENG)
