USER MANUAL

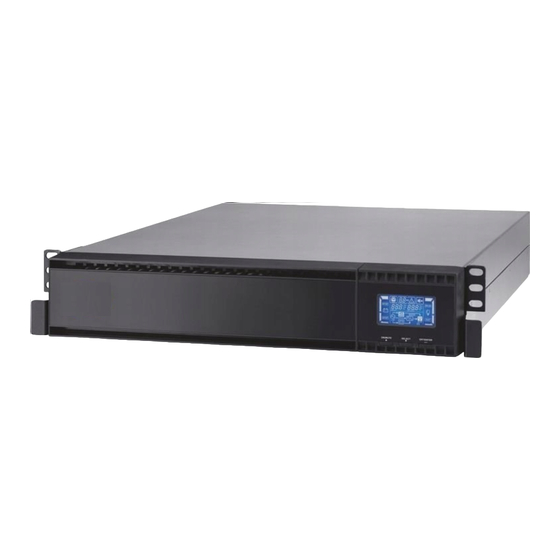

EPRO-RACK 1.1K – 3.4KVA
ONLINE DOUBLE CONVERSION UPS
User Manual:
•
220V (Europe: «Schuko» Zone)
•
110V (America: «NEMA» Zone)
(120217_ENG) Integra EPRO RACK 1.1K-3.4K
USER MANUAL
EPRO RACK 1.1K-3.4K
ENGLISH
- 1
____________________________________________________________________________________________
1. SAFETY AND USE:
WARNING: This product has been designed to operate safely and reliably for years. Nevertheless, as it is an
electrical device, it is required to read and understand this manual. Keep manuals as references for future consults.
WARNING: This product has been designed to be used indoors, protected of water, direct sun light and extreme
temperatures. This device must not be used outdoors, close to moisture of heat sources.
WARNING: Do not set objects on this UPS. Handle with care. Do not block UPS ventilation.
WARNING: Make sure to connect this unit to proper power line according to selected model. The UPS Technical
Specs sticker shows power rating information. DO NOT connect this UPS to any of its own power outlets.
WARNING: UPS must be installed following instruction from this manual.
The manufacturer is not liable for any damage that might rise from misusing this unit or defective installation.
WARNING: Only computer related equipment can be connected to this UPS. DO NOT connect medical
equipments, life support equipments, microwave ovens, vacuum cleaners, refrigerators, or any other appliance to
this UPS.
WARNING: UPS must be checked, repaired and maintained by qualified personnel only. This product is locked by
screws.
WARNING – ELECTRIC SHOCK RISK:
Inside the UPS there are dangerous high voltages even when disconnected of power line, due to internal batteries
WARNING: In case of emergency turn off the UPS pressing Power Button, unplug it and call technical support.
DO NOT connect laser printers, scanners, or copiers to this UPS.
High power devices may damage this UPS
Disposal
We strongly recommend disposing this UPS according to regulations in your country to prevent
possible environmental damages; besides some parts might be recycled.
BATTERY WARNING: DO NOT dispose batteries in fire as it might explode. DO NOT try to open
batteries, there are dangerous liquids inside.
(120217_ENG) Integra EPRO RACK 1.1K-3.4K
USER MANUAL
EPRO RACK 1.1K-3.4K
.
- 2
Advertisement
Table of Contents
Related Manuals for Integra EPRO-RACK 1.1KVA
Summary of Contents for Integra EPRO-RACK 1.1KVA
-
Page 1: User Manual
BATTERY WARNING: DO NOT dispose batteries in fire as it might explode. DO NOT try to open batteries, there are dangerous liquids inside. (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K... -
Page 2: Safety Standards
____________________________________________________________________________________________ 2.A- PRODUCT DESCRIPTION – REAR PANEL: 220V (EUROPE SCHUKO Outlets) SAFETY STANDARDS Programmable Outlets USB port Standard Outlets RS-232 port EPRO & EPRO-RACK 1.1KVA - 1.7KVA AC Input Intelligent Slot for “SNMP” LAN cards Input Breaker Connector External batteries... -
Page 3: Front Panel: Push Button Functions
Protected LAN network jacks models) “EPO”: “Emergency Power Off”. 11. Output Breakers. EPRO-RACK 1.1KVA / 1.7KVA EPRO-RACK 2.25KVA “ON / MUTE” POWER ON: Keep selected during 2 seconds or longer. BEEP MUTE: In battery mode: Keep selected during 5 seconds or longer to Mute acoustic alarm beep. - Page 4 Rack UPS must be installed using L-Shape type guides for supporting UPS weight. Usually this kind of supports is 3.1.- INTERNAL BATTERIES CONNECTION BEFORE INSTALLING provided with rack cabinets. If not, INTEGRA can provide telescopic guides as optional accessory. Before installing this product internal batteries must be connected. This product is delivered with internal batteries Small black handles included with the UPS are only for locking purposes.
-
Page 5: Configurable Parameters
____________________________________________________________________________________________ 3.3.- INSTRUCTIONS TO CONNECT EXTERNAL BATTERIES First Time: Place EX-BATT case close to UPS. Only INTEGRA approved EX-BATT can be connected to UPS EX CHARGE BATTERIES FOR 6 HOURS BEFORE CONNECTING YOUR EQUIPMENTS TO UPS series. Check DC breakers are in OFF position (circuit OPEN) •... -
Page 6: Operation
Indicates MUTE function is active. Under this mode beeper is disabled. OUTPUT Information Indicates output values related to AC voltage, output frequency Vac: Volts AC, Vdc: Volti DC, Hz: frequency units - 11 - 12 (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K... - Page 7 Indicates battery failure Indicates low battery level Input Information Indicates input voltage, input frequency and DC battery voltage Vac: Input voltage, Vdc: battery voltage, Hz: input frequency - 13 - 14 (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K...
-
Page 8: Ups Configuration
07: By Pass: Input Range Configuration By Selecting UP/DOWN (“on/mute” y “select”) keys for selecting hi limit HLS and low limit LLS of input range in By-Pass mode. - 15 - 16 (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K... -
Page 9: Battery Mode
CONVERTER FUNCTION When AC input source is out of range Ups goes to battery mode to supply BATTERY MODE output from taking energy from batteries. - 17 - 18 (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K... -
Page 10: Troubleshooting Table
EPO function is active. Re-establish emergency power input is OK. off switch and set UPS in normal Beep alarm is active (1 beep/s) & LCD mode. shows: - 19 - 20 (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K... - Page 11 When UPS is storage periodic recharge must be performed as indicated in below table: Storage Temperature Recharge Frequency Recharge Time -25°C to +30°C 3 months 6 hours +30°C to +45°C 2 months 6 hours - 21 - 22 (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K...
- Page 12 5.- Using a DVM, check battery assembly DC voltage is closet o 50 Vdc (4 x 12.5Vdc each). If measured voltage is not correct probably there is a wrong connection. Check, correct and confirm. - 23 - 24 (120217_ENG) Integra EPRO RACK 1.1K-3.4K (120217_ENG) Integra EPRO RACK 1.1K-3.4K...
-
Page 13: Warranty And Support
OPERATIONAL CONDITIONS / CONDICIONES DE OPERACIÓN - In no event will INTEGRA be liable for any damages caused by the product or the failure of the product to perform, including any lost profits Relative Humidity / Humedad relativa <...
