USER MANUAL - SUPRA 1005/1505/2005
SUPRA 1005/1505/2005
VER. 2301.30-AP-ENG
USER MANUAL
INTERACTIVE UPS
120V NEMA
This manual Information cannot be copied
.
VER. 2301.30
ENGLISH
1
Advertisement
Table of Contents
Related Manuals for Integra Xmart SUPRA 1005
Summary of Contents for Integra Xmart SUPRA 1005

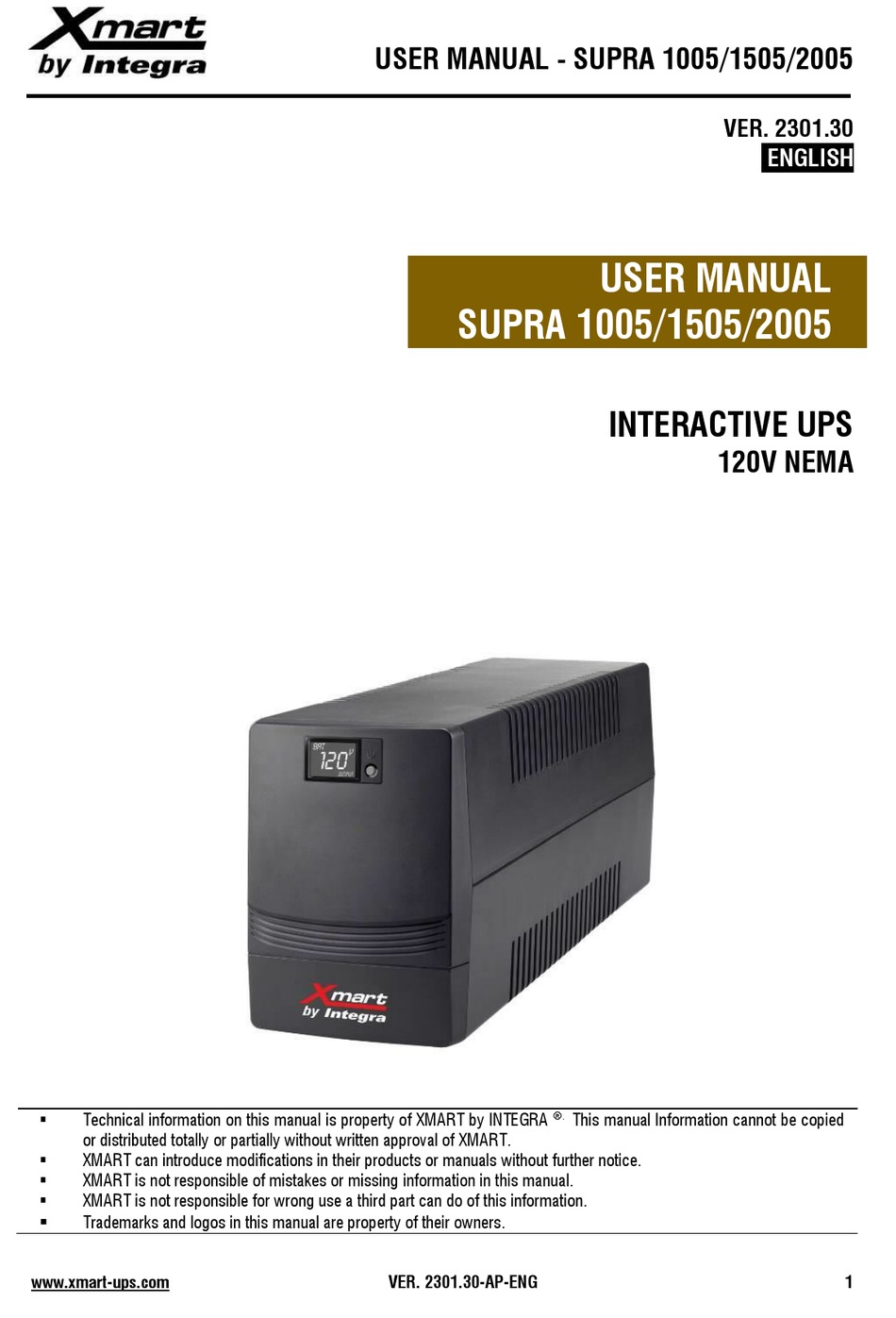

- Page 1 SUPRA 1005/1505/2005 INTERACTIVE UPS 120V NEMA Technical information on this manual is property of XMART by INTEGRA This manual Information cannot be copied ▪ or distributed totally or partially without written approval of XMART. XMART can introduce modifications in their products or manuals without further notice.
-
Page 2: Safety Instructions
USER MANUAL - SUPRA 1005/1505/2005 1. SAFETY INSTRUCTIONS SYMBOLS WARNING ELECTRICAL SHOCK RISK WARNING: It is required to read and understand this manual. Follow all instructions given in this manual for starting up and operating this product. Only qualified technician must start-up, operate and maintain this product. -
Page 3: Safety & Quality Standards
USER MANUAL - SUPRA 1005/1505/2005 SAFETY & QUALITY STANDARDS SAFETY - LOW VOLTAGE DIRECTIVE (2014/35/EU) UPS Part 1-1: General & Safety UPS in accessible areas IEC/EN 62040-1 ELECTROMAGNETIC COMPATIBILITY - EMC DIRECTIVE ( 2014/30/EU) UPS, Part 2, Electromagnetic Compatibility: IEC/EN 62040-2 Low Freq. -
Page 4: Ups Description
USER MANUAL - SUPRA 1005/1505/2005 4. UPS DESCRIPTION This equipment is known as UPS (Uninterruptible Power Supply). It has 2 main functions: give electrical protection against surges, spikes and some other dangerous failures of electrical main system and provides electrical backup based on internal batteries. In that way products you connect to your UPS will be protected and will receive electrical energy even during failures of main electrical AC system. -
Page 5: Ups Installation
USER MANUAL - SUPRA 1005/1505/2005 5. UPS INSTALLATION This UPS must be installed indoor with controlled environment free of excessive dust and, corrosive air. ▪ Do not install in outdoor. Keep UPS working under operational conditions listed in specifications table of ▪... -
Page 6: Operation
USER MANUAL - SUPRA 1005/1505/2005 6. OPERATION Once UPS is installed and connected according to section 4 of this manual, please turn UPS on by ▪ ON/OFF button in front panel. Front panel green LED must turn ON. Turn your products ON one by one. ▪... -
Page 7: Control Software
USER MANUAL - SUPRA 1005/1505/2005 8. CONTROL SOFTWARE Most of the models of this UPS family come with USB port to communicate with your PC. In that way UPS can be monitored and configured. Your PC can be shutdown automatically when a input AC failure is detected saving your information and providing a controlled shutdown. - Page 8 USER MANUAL - SUPRA 1005/1505/2005 9. AFTER SALES SUPPORT & WARRANTY Support: If a failure or problem is detected please check troubleshooting section in user manual. If problem cannot be solved, please contact authorized service center or authorized dealer. Batteries: Rechargeable batteries can be charged and discharged hundreds of times. However, they will eventually wear out. This is not a defect or failure so that batteries wear out is not covered by this warranty.
-
Page 9: Technical Specifications
USER MANUAL - SUPRA 1005/1505/2005 10. TECHNICAL SPECIFICATIONS INTERACTIVE UPS 1005 1505 2005 Capacity / Capacidad 1.000VA / 600W 1.500VA / 900W 2.000VA / 1200W Input / Entrada Voltage / Voltaje 89-145 Vac Frequency / Frecuencia 60 Hz / 50 Hz: Auto Sensing / Autodetección Powercord / cable entrada 6 feet (1.83m) NEMA5-15P Generator Compatible / Compatible con motogeneradores... - Page 10 USER MANUAL - SUPRA 1005/1505/2005 NOTES: www.xmart-ups.com VER. 2301.30-AP-ENG...
- Page 11 USER MANUAL - SUPRA 1005/1505/2005 NOTES: www.xmart-ups.com VER. 2301.30-AP-ENG...
- Page 12 USER MANUAL - SUPRA 1005/1505/2005 EUROPE LATAM Miami FL 33196, USA Sabadell, Barcelona. 08202. Spain Santiago de Chile, Chile sales@xmart-ups.com sales@xmart-ups.com sales@xmart-ups.com www.xmart-ups.com VER. 2301.30-AP-ENG...
