USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K
OPTIMA T10 1K/1.5K/2K/3K
UPS ONLINE DOUBLE CONVERSION
.
This manual Information cannot be copied or distributed
VER.2310.26-One (ENG)
VER. 2310.26
ENGLISH
USER MANUAL
TOWER INSTALLATION
230V SCHUKO
120V NEMA
220V NEMA
1
Advertisement
Table of Contents
Related Manuals for Integra OPTIMA T10 1K
Summary of Contents for Integra OPTIMA T10 1K

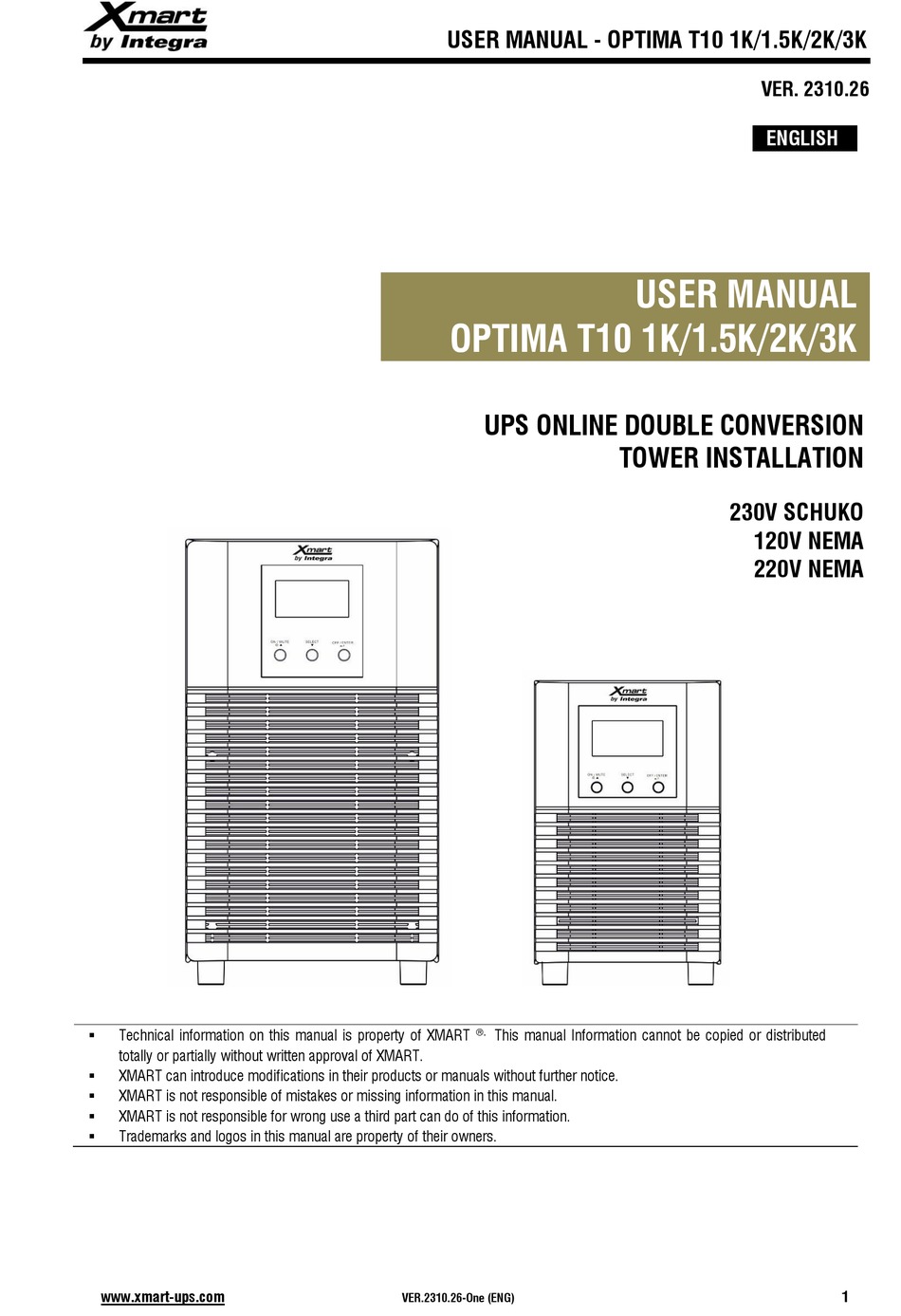

- Page 1 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K VER. 2310.26 ENGLISH USER MANUAL OPTIMA T10 1K/1.5K/2K/3K UPS ONLINE DOUBLE CONVERSION TOWER INSTALLATION 230V SCHUKO 120V NEMA 220V NEMA Technical information on this manual is property of XMART This manual Information cannot be copied or distributed ▪...
- Page 2 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K www.xmart-ups.com VER.2310.26-One (ENG)
-
Page 3: Table Of Contents
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS 2. PRODUCT DESCRIPTION 3. SAFETY, QUALITY AND PERFORMANCE STANDARDS 4. INSTALLATION 5. OPERATION MODES 6. OPERATION INTERFACE (KEYBOARD & LCD) 7. UPS CONFIGURATION 8. ERROR & ALARMS CODES 9. -
Page 4: General Safety Instructions
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 1. GENERAL SAFETY INSTRUCTIONS WARNING: It is required to read and understand this manual. Follow all instructions given in this manual for starting up and operating this product. Only qualified technician must start-up, operate and maintain this product. Keep manuals as a guide for future consults. -
Page 5: Safety, Quality And Performance Standards
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 3. SAFETY, QUALITY AND PERFORMANCE STANDARDS SAFETY - LOW VOLTAGE DIRECTIVE (2006/95/EC) IEC/EN 62040-1 UPS Part 1-1: General & Safety UPS in accessible areas ELECTROMAGNETIC COMPATIBILITY - EMC DIRECTIVE (2004/108/EC) UPS, Part 2, Electromagnetic Compatibility: IEC/EN 62040-2 Low Freq. -
Page 6: Installation
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 4. INSTALLATION AC CONNECTIONS Install this UPS indoors with a conditioned temperature free of dust. The site conditions must comply with room specifications required in the specifications table of this manual. Plug UPS input power-cord to the wall socket with rated voltage according to your UPS model. - Page 7 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K EXTERNAL BATTERIES (XBAT) Additional external battery modules can be connected to this UPS to have longer runtime. External batteries are optional for long run applications. XBAT must be connected by using original DC cables included inside XBAT box. XBAT must be connected to the DC connector located on rear panel of the UPS.
-
Page 8: Operation Modes
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 5. OPERATION MODES This is a True Online Double Conversion UPS, and it is designed to offer clean, bump-less and highest quality power to your computer related equipment protecting also your valuable data. Power delivered by UPS is 100% sine wave as main line. - Page 9 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K LCD SCREEN ACCORDING TO OPERATION MODE: (FOR 230VAC models) LCD screens for 120V models are similar to screens described in this section for 230V. OPERATION MODES DESCRIPTION LCD SCREEN A- When bypass is not allowed UPS output is powered-off (0V).
- Page 10 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 6. OPERATOR INTERFACE: KEYBOARD & LCD FRONT PANEL: <ON / MUTE> UPS TURN-ON: Keep it pushed for 2 seconds. If button is released before required time UPS will not turn on. ALARM MUTE Some no critical alarms can be muted when this key is selected...
- Page 11 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K LCD DESCRIPTION LCD can be divided in 6 functional areas: OUTPUT INFORMATION: Displays: AC Input voltage, DC Battery voltage, Input frequency (in Hz) INPUT INFORMATION: Displays: AC output voltage, Output frequency (in Hz) ALARMS & ERRORS This section of the LCD displays active alarms and errors providing codes and descriptive symbols.
- Page 12 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K FLOWCHART – UPS STATES & MODES This section graphically displays operation mode and status of the UPS: (1) : Valid AC Input detected (2) : Battery symbol (3) : Converters (Rectifier & Inverter) (4) : UPS output powered...
-
Page 13: Ups Configuration
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 7. UPS CONFIGURATION Configuration menu allows setting of functions and parameters of the UPS. Menu is activated by pressing < SELECT > during 5 seconds with UPS in STAND-BY or BYPASS mode (powered but without activation of ON button). - Page 14 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K CF: FREQUENCY OUTPUT VALUE - If CF Mode is Disabled, PAR 02 shows BAT and Initial frequency at Battery mode can be set to: BAT 50 = 50Hz BAT 60 = 60Hz - If CF Mode is Enabled, PAR 02 shows CF and Output Frequency in ONLINE mode can...
- Page 15 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K PROG-OUTPUT: MAXIMUM RUNTIME FOR PROGRAMMABLE OUTLETS: 0-999: Time in minutes for programable outlets in Battery mode (if function 10 is enable). Factory set: 999 min. This setting does not affect runtime for standard UPS outlets.
- Page 16 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K ACCEPTABLE INPUT RANGE: 120V Models: HLS: (High Limit Setting): 140/145/150Vac LLS: (Low Limit Setting): 55/60/65/70/75/80Vac 230V models 230V: HLS: (High Limit Setting): 280/290/300Vac LLS: (Low Limit Setting): 110/120/130/140/150/160Vac LCD CODES AND TEXTS: TEXTS DESCRIPTION...
- Page 17 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 8. ALARM & ERROR CODES IMPORTANT: All alarms and errors are informed on the LCD by dedicated codes and symbols. ALARMS: Are usually represented by blinking codes or symbols. Audible alarm beeps are also intermittent for ▪...
-
Page 18: Error & Alarms Codes
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K ERROR CODES Error states are produced when UPS detects a critical problem that avoids its normal operation in ONLINE mode. This condition is described by steady symbol and code on LCD. A continuous beep is also generated by the UPS. -
Page 19: Troubleshooting
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 9. TROUBLESHOOTING PROBLEM PROBABLE CAUSE & SOLUCION Low Batteries Charge: Recharge Batteries during 4-6 h. Short runtime in Battery mode Old Batteries: Batteries must be replaced by new ones ALARMS PROBABLE CAUSE & SOLUCION High power consumption connected to UPS: Disconnect no critical equipment from UPS. -
Page 20: Software
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 10. SOFTWARE Our monitoring software allows user to manage UPS and monitoring of all its features. Main software features are: Configuring UPS parameters, Automatic shutdown for protected PCs (OS and files) when long blackouts force UPS to power-off, Scheduled battery tests, shutdown and start-up and Easy interface for monitoring UPS and Main service. -
Page 21: Batteries: Recharging
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 12. BATTERIES: RECHARGING This UPS includes a powerful and modern battery charger which is connected to the AC input Charger Configuration: Maximum recharging current can be configured in the LCD frontal panel. Maximum current must be configured according to the capacity of the battery bank. -
Page 22: Support & Warranty
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 13. SUPPORT & WARRANTY Support: If a failure or problem is detected please check troubleshooting section in user manual. If problem cannot be solved, please contact authorized service center or authorized dealer. Batteries: Rechargeable batteries can be charged and discharged hundreds of times. However, they will eventually wear out. This is not a defect or failure so that batteries wear out is not covered by this warranty. -
Page 23: Rear Panel
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 14. REAR PANEL 1.- Standard UPS Outlets 6.- Emergency Power Off connector 2.- Programmable Outlets 7.- USB & RS232 3.- AC Input 8.- Intelligent port 4.- Input AC Breaker 9.- DC connector for external batteries 5.- Surge Protected RJ45 sockets... -
Page 24: Specifications
USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 15. SPECIFICATIONS (1/2) www.xmart-ups.com VER.2310.26-One (ENG) - Page 25 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K 15. SPECIFICATIONS (2/2) 1.5K ONLINE - OPTIMA T10 (UL/CSA/CE) INDICATORS / INDICADORES UPS status, Load level, Battery, Input/Output voltage, Discharge timer, and Fault LCD / Pantalla de Cristal Liquido (LCD) Estado del UPS, Consumo, Baterías, Voltaje Entrada/Salida, Autonomía, Diagnóstico...
- Page 26 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K NOTES www.xmart-ups.com VER.2310.26-One (ENG)
- Page 27 USER MANUAL - OPTIMA T10 1K/1.5K/2K/3K NOTES www.xmart-ups.com VER.2310.26-One (ENG)
- Page 28 EUROPE LATAM Miami FL 33196, USA Sabadell, Barcelona. 08202. Spain Santiago de Chile, Chile sales@xmart-ups.com sales@xmart-ups.com sales@xmart-ups.com...
