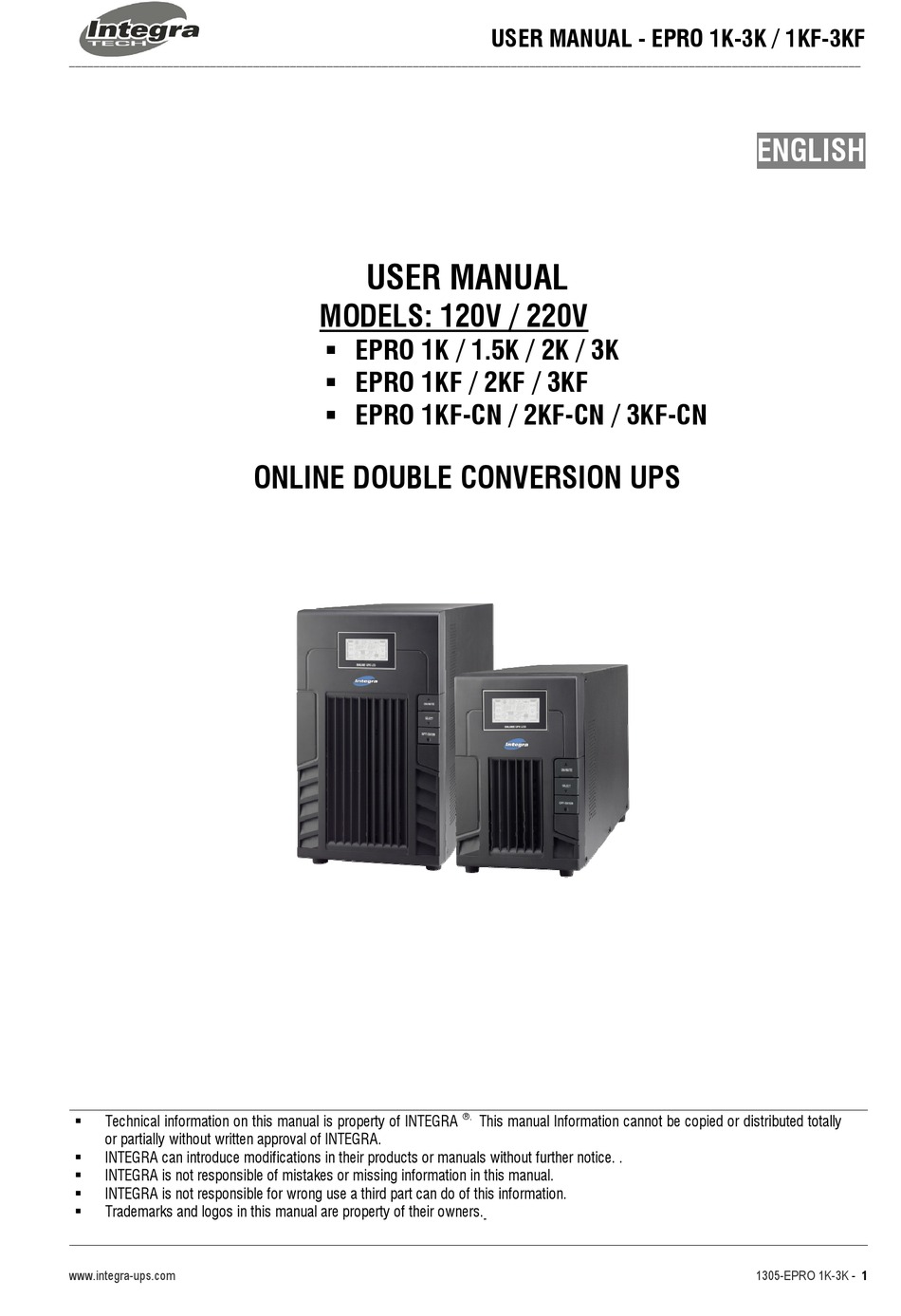

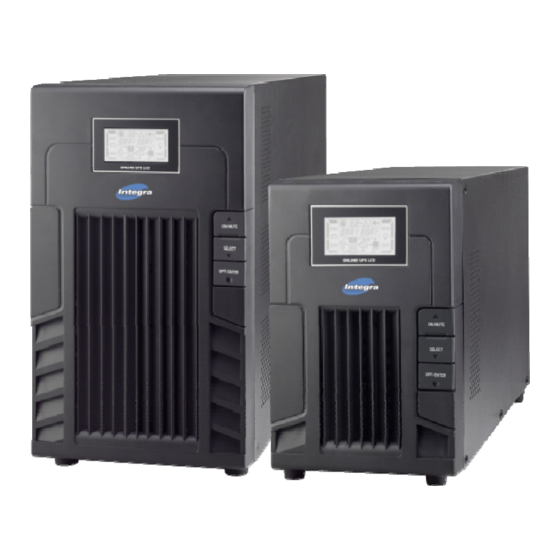

USER MANUAL
MODELS: 120V / 220V
EPRO 1K / 1.5K / 2K / 3K
EPRO 1KF / 2KF / 3KF
EPRO 1KF-CN / 2KF-CN / 3KF-CN
ONLINE DOUBLE CONVERSION UPS
USER MANUAL - EPRO 1K-3K / 1KF-3KF
.
This manual Information cannot be copied or distributed totally
ENGLISH
1305-EPRO 1K-3K
- 1
Advertisement
Table of Contents
Related Manuals for Integra EPRO 1K
Summary of Contents for Integra EPRO 1K
-
Page 1: User Manual
INTEGRA is not responsible of mistakes or missing information in this manual. INTEGRA is not responsible for wrong use a third part can do of this information. Trademarks and logos in this manual are property of their owners. - Page 2 _________________________________________________________________________________________________________________________________ This manual covers 3 UPS families related to EPRO UPS 1KVA to 3KVA EPRO 1K / 1.5K / 2K / 3K Online double conversion UPS (IGBT technology) with full set of functions and capabilities. This model includes special functions like: Frequency conversion, EPO (Emergency Power OFF), Programmable Outlets.
-
Page 3: Safety Instructions
USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 1. SAFETY INSTRUCTIONS WARNING: This product has been designed to operate safely and reliably for years. Nevertheless, as it is an electrical device, it is required to read and understand this manual. Keep manuals as references for future consults. - Page 4 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 2. SAFETY / QUALITY / PERFORMANCE STANDARDS SAFETY - LOW VOLTAGE DIRECTIVE (2006/95/EC) UPS Part 1-1: General & Safety UPS in accessible areas IEC/EN 62040-1 ELECTROMAGNETIC COMPATIBILITY - EMC DIRECTIVE (2004/108/EC) UPS, Part 2, Electromagnetic Compatibility: IEC/EN 62040-2 Low Freq.
-
Page 5: Product Description
USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 3. PRODUCT DESCRIPTION This is an online double conversion UPS designed to work under harsh environments that offers sophisticated features and high reliability. It works generating a high quality and uninterrupted pure sine-wave output. It is perfect to protect hardware and your valuable data in workstations, multi-PCs systems or critical servers. - Page 6 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 4. INSTALATION WARNINGS: It is not allowed to connect output Neutral line to input Neutral line. This practice can damage UPS. This kind of damage is not covered by warranty. FIG-1 For all full-bridge models (1KF-3KF & 1KF-CN to 3KF-CN) it is not allowed to connect output Neutral to system Ground. This practice will generate internal damage in the UPS.
- Page 7 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ If your system requires output of UPS has N-G voltage close to 0Vac we suggest to install an isolation transformer at the UPS output. Neutral line of secondary of the transformer can be connected to Ground (See FIG 3).
- Page 8 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ OPTIONAL KIT FOR EXTERNAL BATTERIES PACKS There is a connector optional kit available for EPRO & EPRO-F series that allows connection of external battery packs to the UPS. This optional kit can be get as option to be connected in UPS rear panel. This kit offers a DC connector for the rear panel and attached cable to be connected to internal batteries.
-
Page 9: Operation
USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 5. CONFIGURATION Any configuration modification must be applied with UPS connected to AC line but in OFF or STAND-BY mode. This UPS can be configured to work under some different modes. Some important functions can also be configured in CONFIGURATION MODE: Normal Mode: Also known as AC MODE. - Page 10 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 7. OPERATION MODES AND LCD Operation Mode Description * UPS ON * Input AC source OK * UPS output generated by inverter ONLINE * UPS in ON * ECO mode activated. * Input AC source is OK * UPS output feed from AC input to save energy.
-
Page 11: Lcd Description
USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 8. LCD DESCRIPTION Indicates battery charging level by 4 segments bar: 76-100%. 51-75% 26-50%, 0-25%, BATT FAULT y LOW BATT indicate abnormal battery situation Indicates UPS time under battery mode: H: hours, M: minutes, S: seconds Alert triangle symbol indicates alarm or error. -
Page 12: Ups Configuration
EVERY UPSFAMILY HAS ITS OWN CONFIGURATION MENU WITH DIFFERENT FUNCTIONS AND OPTIONS CONFIGURATION MENU BY MODEL : FUNCTION EPRO 1K / 1.5K / 2K / 3K EPRO (F) 1KF / 2KF / 3KF EPRO (F-CN) 1KFCN / 2KFCN / 3KFCN... - Page 13 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ MODEL: EPRO (F-CN) : 1KF-CN, 2KF-CN & 3KF-CN Screens for 230V models. 120V models have their own screens showing values typical for 120V systems. www.integra-ups.com 1305-EPRO 1K-3K - 13...
- Page 14 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ MODEL: EPRO (F) : 1KF, 2KF & 3KF Screens for 230V models. 120V models have their own screens showing values typical for 120V systems. www.integra-ups.com 1305-EPRO 1K-3K - 14...
- Page 15 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ MODEL: EPRO : 1K, 1.5K, 2K & 3K Screens for 230V models. 120V models have their own screens showing values typical for 120V systems. www.integra-ups.com 1305-EPRO 1K-3K - 15...
-
Page 16: Error Codes
USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 10. ERROR CODES FAILURE / ERROR CODE ICON Bus failure Hi BUS Voltage Low BUS Voltage Bus Unbalanced Short-circuit in BUS Soft-start Inverter Failure Inverter: Hi Voltage Inverter: Low Voltage Inverter output short circuit... -
Page 17: Troubleshooting
USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 12. TROUBLESHOOTING Problem Description Probable Root Cause Suggested Action Input power cord is not connected Check input power cord connection. * LCD does not show input voltage value * AC input failure alarm active Input power cord is connected into UPS Check input power cord connection. - Page 18 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 13. SOFTWARE Our control software offers huge capabilities to monitor your UPS and configure key shutdown parameters. Also event and data log are available in software options. Main software features are: • Friendly human interface to UPS.
-
Page 19: Warranty And Support
- In no event will INTEGRA be liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental, or consequential damages. -
Page 20: Rear Panel
USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 16. REAR PANEL 1.- Programable Outltes 8.- RS-232 2.- Standar UPS Outlets 9.- SNMP Smart Port 3.- AC Input 10.- External Battery Connector (EXBATT) 4.- Input Breaker 11.- AC Output Terminal Block 5.- RJ45 Surge Protected Sockets... - Page 21 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 17. ESPECIFICACIONES 1K/1.5K/2K/3K (1/2) ONLINE UPS 1K-3K 1.5K Capacity / Capacidad (VA) 1000VA 1500VA 2000VA 3000VA Capacity / Capacidad (W) 800W 1200W 1600W 2400W INPUT / ENTRADA Model 120V: 80Vac-150Vac (@ 100% load)
- Page 22 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 17. ESPECIFICACIONES 1K/1.5K/2K/3K (2/2) ONLINE UPS 1K-3K 1.5K PRODUCT FEATURES / CARACTERISTICAS DEL PRODUCTO DxWxH / Prof.*Ancho*Altura (mm) 397x145x220 397x145x220 421x190x318 421x190x318 Net Weight / Peso Neto (kgs) UPS MODEL: 230Vac (EUROPE) Standard Outlets / Salidas Estándar...
- Page 23 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 17. ESPECIFICACIONES (1KF / 2KF / 3KF) & (1KF-CN / 2KF-CN / 3KF-CN) (1/2) ONLINE UPS (1/2) 1KF & 1KF-CN 2KF & 2KF-CN 3KF & 3KF-CN Capacity / Capacidad (VA) 1000VA 2000VA...
- Page 24 USER MANUAL - EPRO 1K-3K / 1KF-3KF _________________________________________________________________________________________________________________________________ 17. ESPECIFICACIONES (1KF / 2KF / 3KF) & (1KF-CN / 2KF-CN / 3KF-CN) (2/2) ONLINE UPS (2/2) 1KF & 1KF-CN 2KF & 2KF-CN 3KF & 3KF-CN PRODUCT FEATURES / CARACTERISTICAS DEL PRODUCTO DxWxH / Prof.*Ancho*Altura (mm)
