Integra OPTIMA RT9 6KVA User Manual

Double conversion ups rack / tower ups
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

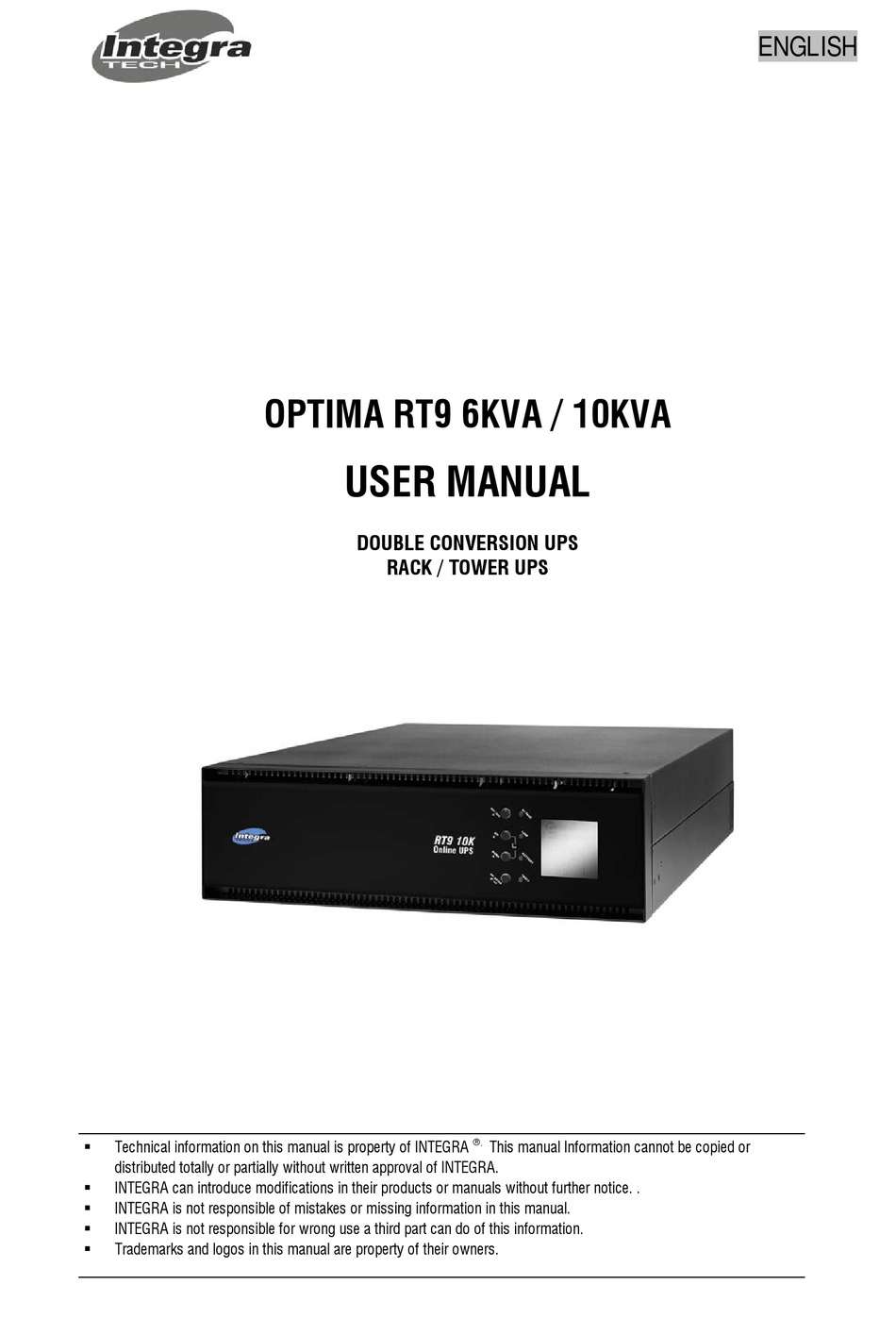

Technical information on this manual is property of INTEGRA
distributed totally or partially without written approval of INTEGRA.
INTEGRA can introduce modifications in their products or manuals without further notice. .
INTEGRA is not responsible of mistakes or missing information in this manual.
INTEGRA is not responsible for wrong use a third part can do of this information.
Trademarks and logos in this manual are property of their owners.
OPTIMA RT9 6KVA / 10KVA

USER MANUAL

DOUBLE CONVERSION UPS
RACK / TOWER UPS
.
This manual Information cannot be copied or
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Integra OPTIMA RT9 6KVA

Summary of Contents for Integra OPTIMA RT9 6KVA

  • Page 1: User Manual

    INTEGRA is not responsible of mistakes or missing information in this manual.  INTEGRA is not responsible for wrong use a third part can do of this information.  Trademarks and logos in this manual are property of their owners.

  • Page 2: Table Of Contents

    FRONT PÀNEL: PUSH BUTTONS / LEDS / LCD 9.- OPERATION: SINGLE UPS 10.- OPERATION: PARALLEL UPS REMOVING UPS FROM PARALLEL SYSTEM ADDING UPS TO PARALLEL SYSTEM 11.- UPS CONFIGURATION 12.- ERROR CODES, ALARMS & TROUBLESHOOTING 13.- TECHNICAL SPECIFICATIONS 14.- WARRANTY www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 3: Safety

    Batteries: Do not throw it to fire (risk of explosion). Do not open the batteries, there are dangerous liquids inside www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 4: Safety Standards

    IEC/EN 61000-4-5 (Level 4) EMS (CS): IEC/EN 61000-4-6 (Level 3) This product has been designed to operate in industrial and commercial applications. If it is used in different application some considerations for avoiding interferences could be necessary. www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 5: Available Models

    Model: EXBATT-OPT-RT10 Batteries: 20 pieces:1 group of 12V-9AH DC Voltage: 240Vdc BATTERY MODULE CONNECTION TO EXBATT ISOTX MODEL OPT RT9 6K Optional OPT RT9 10K Optional Note: ISOTX is an optional accessory module (3U height) www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 6 5. Parallel Port (for parallel function) 6. SNMP Intelligent Slot 7. Cooling Fans 8. External Bypass Switch port (MBS port) 9. DC connector for EXBATT 10. Main AC Input Breaker 11. Terminal Block Cover UPS MODULE: BATTERY MODULE: ISOTX MODULE: www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 7: Ups Installation: Site Planing

    WARNING: Connect only computer related equipments to this UPS. DO NOT connect medical equipments or critical availability equipments to this UPS. DO NOT connect AC motor based equipments. DO NOT connect home appliances (ovens, vacuum cleaners, refrigerators, etc.) to this UPS. www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 8 IMPORTANT: Warning label must be placed on primary involved circuit breakers to alert there are maintenance personnel working on these circuits to avoid accidental actuation on involved breakers. www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 9 Figure 3: Handles included with UPS are only for locking UPS to the cabinet but not for supporting UPS weight. Figure 4: Original telescopic guides can be provided as optional accessory if it is required. www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 10 User Manual ENGLISH - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ TOWER INSTALLATION This UPS can be also installed as tower UPS as indicated below. UPS + BATTERY MODULE = 2 MODULES - 10 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 11 User Manual ENGLISH - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ 3 MODULES = UPS + BATTERY MODULE (EXBATT) + ISOTX - 11 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 12 In many countries, now a day, it is legally required to install protections against current leakage to protect human beings in cases of leaks o discharges to ground. It is responsibility of the end user and/or electrical contractor selecting and including these protection devices in the electrical circuit of the UPS. - 12 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 13 50% of total UPS capacity. For example for 6KVA UPS, each separate output will supply 3KVA. You can have one 120Vac output with 100% capacity by connecting 2 separate outputs in parallel. - 13 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 14: Ups Installation: Single Ups - Terminal Block

    First, connect Ground wires. Ground wires must be FIRST to be connected and LAST to be disconnected. Connect UPS input and output wires according to your UPS model or configuration as described in following figures: RT9 6-10K TERMINAL BLOCK - 14 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 15 - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ UPS TO ISOTX WIRING ISOTX module is an optional accessory rack module that offers 2 isolated 120Vac outputs. UPS AC output must be connected to ISOTX input as indicated. - 15 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 16 User Manual ENGLISH - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ ISOTX TERMINAL BLOCK - 16 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 17 User Manual ENGLISH - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ ISOTX OUTPUT CONFIGURATIONS ISOTX outputs can be configured in 3 different manners as detailed in this section. - 17 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 18 In case of more than 1 EXBATT connect EXBATT 1 with EXBATT 2 and so on until last EXBATT. 4.- Activate DC breakers one by one in EXBATT cabinets to connect EXBATT batteries with internal UPS Main batteries. - 18 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 19: Ups Installation: Parallel Ups - Terminal Block

    If UPS to be connected in parallel have external batteries it is mandatory each UPS counts with its own battery pack. Parallel connection cannot be performed if only one of two (or two or three) UPS have external batteries. Permanent damages will be produced in UPS if this warning is not followed. - 19 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 20 User Manual ENGLISH - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ PARALLEL - UPS RT9 - AC LINES CONNECTION - 2 & 3 UPS - 20 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 21 PARALLEL - USING ISOTX - AC LINES CONNECTION ** NOTE 1: WARNING: In parallel systems with ISOTX modules, to avoid permanent damage or incorrect operation, it is important to connect output neutral between all UPS as indicated in above drawing. - 21 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 22 User Manual ENGLISH - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ PARALLEL UPS - CONTROL WIRES CONNECTION - 22 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 23: Start-Up: Single Ups

    NOTE 1: If any error or warning message in indicated in LCD please revise Troubleshooting section of this manual. NOTE 2: UPS batteries maybe are not fully charged. UPS could require about 4 to 6 hours to recharge batteries up to 100% of their capacity. - 23 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 24: Start-Up: Parallel Ups

    5. Check Maintenance Bypass Switch (MBS) located in UPS rear panel is in UPS position and its cover is duly installed. 6. Make sure all external protection devices in input and output lines are in open (OFF) position. 7. Check control parallel cables are connected according to section 5 of this manual. - 24 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 25 At this moment all UPS are in ONLINE mode. UPS output is generated by UPS inverter. 12.- Now we must measure output voltage in each UPS using a digital multi-meter. All output voltages must be similar. Maximum acceptable deviation should be 2Vac or lower. Typically 1Vac. - 25 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 26 ** Once all output load is connected check power output is below 100%. ** At this moment, UPS parallel system is powering your system in NORMAL Online mode. - 26 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 27: Operation Interface

    ○ BATTERY Mode ○ ● ● ○ BATTERY TEST in progress ● ● ○ ○ ECO Mode Activated ○ ○ ○ ● UPS in Failure ● ○ LED = ON LED = OFF - 27 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 28 It is a powerful information tool to know what is happening at any moment. LCD is also the configuration interface for all configurable parameters. MAIN INTERFACE: Line Mode IP: 208.0V / 50Hz OP: 220.0V/50Hz Batt: 273.0V/99% Load: 0% Warning: XX LCD MENU: - 28 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 29: Eco Mode

    When important problem is detected inside or outside the UPS, it goes to fault mode reporting an error message on LCD and activating buzzer with a continuous beep. Under this mode UPS usually goes to BYPASS mode. Fault LED turns on in red color when fault mode is adopted. - 29 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 30: Operation: Parallel Ups

    Firmware of all UPS must be compatible for allowing parallel functionality. • New UPs must be configured with similar LCD configuration menu than current UPS of the system. Follow the procedure explained in Installation Section of this manual • - 30 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 31 ● ● ● ● ● ● ● ● ● ● Battery Voltage adjustment ● ● ● ● ● ● Battery Charger Voltage adjustment ● ● ● UPS output voltage adjustment ”●” Function available. - 31 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 32 - ONLINE 6K/10K RACK-TOWER ISOTX UPS __________________________________________________________________________________________________________________________ Configuration menu functions and screens Screens menu is divided in 5 different modules as follow: F1. CONTROL  F2. MEASUREMENT  F3. INFORMATION  F4. SETTING  F5. ALARM  - 32 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 33 OK ?? Turn On IP: 208.0V / 50Hz Batt Test --> OP: 208.0V/50Hz Mute Batt: 273.0V/99% --> Para Unlock Load: 0% "Para Unlock" is only available when UPS are connected in parallel system. - 33 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 34 UPS Model: Hot Standby: Disable 990 min. DSP Ver: xx-xx Bypass Mute: Disable Batt Test Type: MCU Ver: xx-xx Batt Mute: Disable Short Time: Unit Name: XXXXXXXXXX Fault Mute: Disable 10 sec. Manufacturer: XXXXXXX - 34 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 35 HIGH LOSS F: Acceptable high limit for input frequency for UPS in bypass mode. High Loss V: 264V Low Loss: V: 110V LOWLOSS F: Acceptable min. limit for input frequency for UPS in bypass mode. High Loss: F: 54Hz Low Loss: F: 46Hz - 35 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 36 CVCF: Set if frequency conversion is activated. Enable: Output frequency is fixed in 50Hz or 60Hz according to previous FREQ setting Disable: Converter function disables. Output frequency will be synchronized with input frequency. - 36 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 37 CVCF mode Chg: 273.0 +0.0 CHG: Adjust the charger output voltage. Available only in: Bypass mode Online mode ECO mode CVCF mode ** Batteries must be disconnected from charger before making any adjustment. - 37 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 38 Factor: F5. ALARMS & ERROR SCREEN In this screen warnings and faults are recorded. Alarm Info Warning and error messages are described in following tables. Fault: 14: Output Short Warning: 01: Batt Open - 38 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 39: Error Codes, Alarms & Troubleshooting

    When a problem is detected in regards to parallel communication between Activated some UPS in parallel warning code 3F is activated. Please check all parallel cables and go to CONTROL screen menu to unlock PARA UNLOCK parameter before trying to restart UPS. - 39 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 40: Technical Specifications

    External batt cabinet / Gabinete Ext. Depending on external battery configuration (depende de cantidad de baterías externas) Charging Amps / Corriente de Carga 2.0 A (Max.) Charging Voltage / Voltaje Cargador 273.0 VDC - 40 www.integra-ups.com 130717 RT9- 6K-10K (ENG)
  • Page 41 10540 NW 26th St, Ave. Can Bordoll 60, Nave 4. Zona Ind. San Vicente II, Calle F, A11 Doral, FL 33172. Sabadell 08202. Maracay. Tel: +1 305-406.3664 Tel: +34 93.745.9694 Tel: +58 243-551.7023 - 41 www.integra-ups.com 130717 RT9- 6K-10K (ENG)

  • Page 42: Warranty

    - In no event will INTEGRA be liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental, or consequential damages.

This manual is also suitable for:

Optima rt9 10kva
