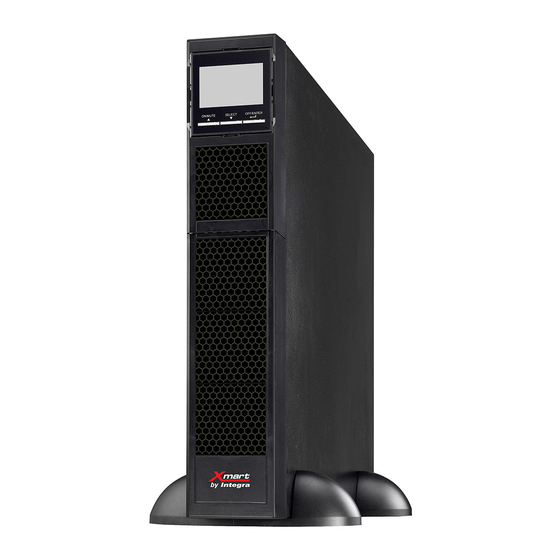

USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL)
UPS ONLINE DOUBLE CONVERSION
RACK / TOWER INSTALLATION
This manual Information cannot be copied or distributed
.
VER.2010.22-One (ENG)
VER. 2010.22
ENGLISH
USER MANUAL
OPTIMA RT10
1K/1.5K/2K/3K
120V NEMA (UL)
230V SCHUKO
220V NEMA
INDEX
1
Advertisement
Table of Contents
Related Manuals for Integra Xmart OPTIMA RT10 1K
Summary of Contents for Integra Xmart OPTIMA RT10 1K

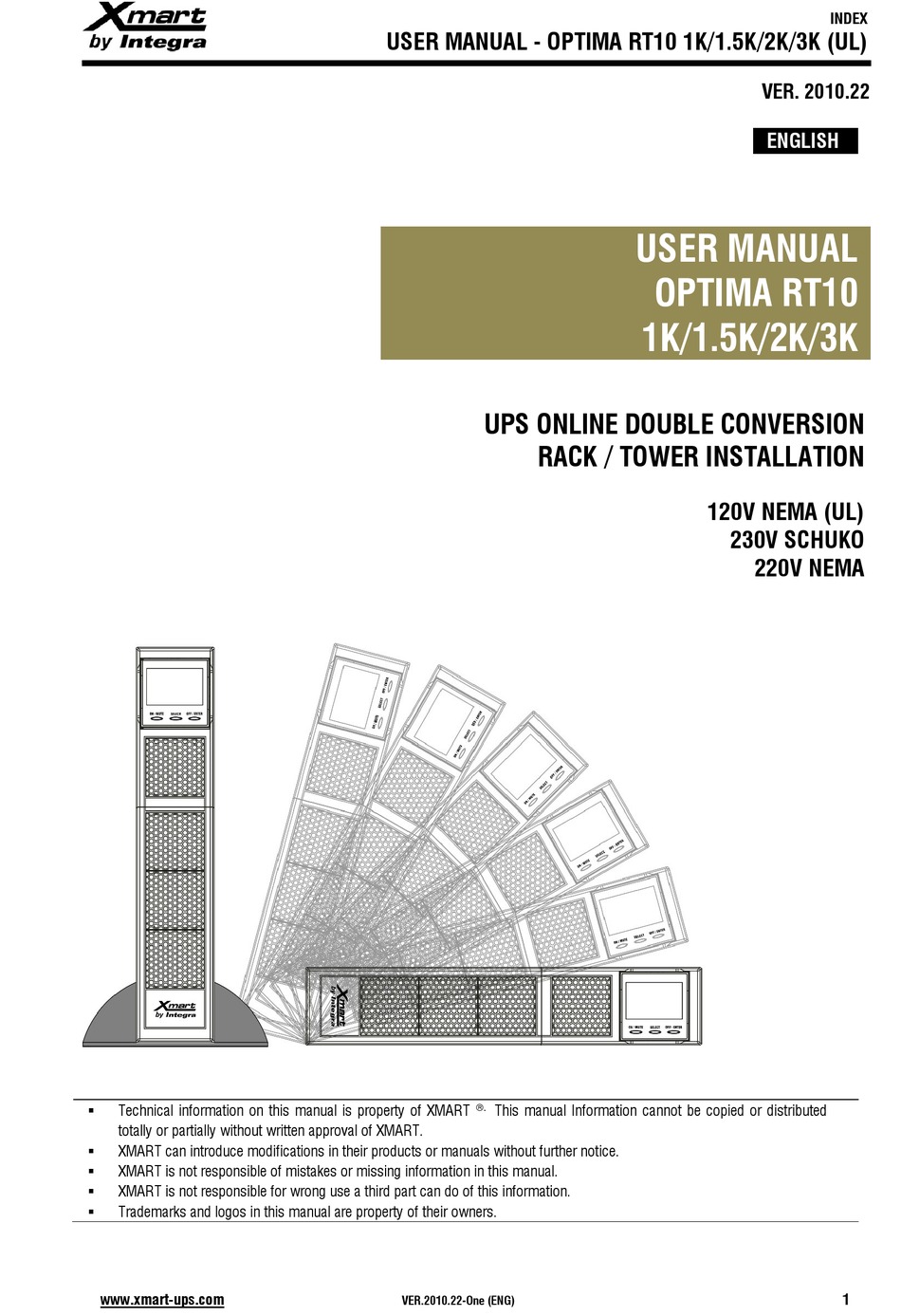

- Page 1 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) VER. 2010.22 ENGLISH USER MANUAL OPTIMA RT10 1K/1.5K/2K/3K UPS ONLINE DOUBLE CONVERSION RACK / TOWER INSTALLATION 120V NEMA (UL) 230V SCHUKO 220V NEMA Technical information on this manual is property of XMART ...
-
Page 2: Table Of Contents
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS 2. PRODUCT DESCRIPTION 3. SAFETY, QUALITY AND PERFORMANCE STANDARDS 4. INSTALLATION 5. OPERATION MODES 6. OPERATION INTERFACE (KEYBOARD & LCD) 7. UPS CONFIGURATION 8. ERROR & ALARMS CODES 9. -
Page 3: General Safety Instructions
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 1. GENERAL SAFETY INSTRUCTIONS WARNING: It is required to read and understand this manual. Follow all instructions given in this manual for starting up and operating this product. Only qualified technician must start-up, operate and maintain this product. Keep manuals as a guide for future consults. UPS manufacturer or distributor will never be responsible for any accident produced by lack of knowledge or negligent practices at the moment of install, starting up or maintain this product. - Page 4 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 3. SAFETY, QUALITY AND PERFORMANCE STANDARDS SAFETY - LOW VOLTAGE DIRECTIVE (2014/35/EU) IEC/EN 62040-1 UPS Part 1-1: General & Safety UPS in accessible areas ELECTROMAGNETIC COMPATIBILITY - EMC DIRECTIVE (2014/30/EU) UPS, Part 2, Electromagnetic Compatibility: IEC/EN 62040-2 Low Freq.
- Page 5 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) INSTALLATION This UPS can be installed in both rack or vertical format. 19” RACK MOUNTING Rack UPS must be installed using L-Shape type guides for supporting UPS weight. Usually this kind of supports is provided with rack cabinets.
- Page 6 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) AC CONNECTIONS Install this UPS indoors with a conditioned temperature free of dust. The site conditions must comply with room specifications required in the specifications table of this manual. Plug UPS input power-cord to the wall socket with rated voltage according to your UPS model. Connect your products to UPS outlets without overloading UPS.
-
Page 7: Operation Modes
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 5. OPERATION MODES This is a True Online Double Conversion UPS and it is designed to offer clean, bump-less and highest quality power to your computer related equipment protecting also your valuable data. Power delivered by UPS is 100% sine wave as main line. According to AC main service, and how UPS has been configured, it may operate in following modes: ONLINE NORMAL Mode When UPS is off by selecting ON push button in front panel UPS enters into ONLINE NORMAL mode if AC main service is inside... - Page 8 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) LCD SCREEN ACCORDING TO OPERATION MODE: (FOR 230VAC models) LCD screens for 120V models are similar to screens described in this section for 230V. MODO DE OPERACIÓN DESCRIPCIÓN PANTALLA LCD A- When bypass is not allowed UPS output is powered-off (0V).
- Page 9 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 6. OPERATOR INTERFACE: KEYBOARD & LCD FRONT PANEL: <ON / MUTE> UPS TURN-ON: Keep it pushed for 2 seconds. Is button is release before required time UPS will not turn on. ALARM MUTE Some no critical alarms can be muted when this key is selected for 5 seconds Operator can manually initiate a self-test when UPS is ONLINE, ECO or FREQUENCY SELF TEST...
- Page 10 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) LCD DESCRIPTION LCD can be divided in 6 functional areas: OUTPUT INFORMATION: It displays: AC Input voltage, DC Battery voltage, Input frequency (in Hz) INPUT INFORMATION: It displays: AC output voltage, Output frequency (in Hz) ALARMS &...
- Page 11 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) FLOWCHART – UPS STATES & MODES This section displays graphically operation mode and state of the UPS: (1) : Valid AC Input detected (2) : Battery symbol (3) : Converters (Rectifier & Inverter) (4) : UPS output powered (4)+[P]: Programmable output powered (5) : BYAPSS internal static line active...
-
Page 12: Ups Configuration
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 7. UPS CONFIGURATION Configuration menu allows setting of functions and parameters of the UPS. Menu is activated by pressing < SELECT > during 3 seconds with UPS in STAND-BY or BYPASS mode (powered but without activation of ON button). - Page 13 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) CF: FREQUENCY OUTPUT VALUE - If CF Mode is Disabled, PAR 02 shows BAT and Initial frequency at Battery mode can be set to: BAT 50 = 50Hz BAT 60 = 60Hz - If CF Mode is Enabled, PAR 02 shows CF and Output Frequency in ONLINE mode can be set as: CF 50 = 50Hz...
- Page 14 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) PROG-OUTPUT: MAXIMUM RUNTIME FOR PROGRAMMABLE OUTLETS: 0-999: Time in minutes for programable outlets in Battery mode (if function 10 is enable). Factory set: 999 min. This setting does not affect runtime for standard UPS outlets. MAXIMUM RUNTIME: This function sets maximum time in Battery mode for the UPS.
- Page 15 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) ACCEPTABLE INPUT RANGE: 120V Models: HLS (High limit): 140/145/150Vac LLS: (Low Limit): 55/60/65/70/75/80Vac Para models 230V: HLS (High Limit): 280/290/300Vac LLS: (Low Limit): 110/120/130/140/150/160Vac LCD CODES AND TEXTS: TEXTS DESCRIPTION Active Open Active Close Battery AH Battery...
- Page 16 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 8. ALARM & ERROR CODES IMPORTANT: All alarms and errors are informed on the LCD by dedicated codes and symbols. ALARMS: Are usually represented by blinking codes or symbols. Audible alarm beeps are also intermittent for ▪...
-
Page 17: Error & Alarms Codes
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) ERROR CODES Error states are produced when UPS detects a critical problem that avoids its normal operation in ONLINE mode. This condition is described by steady symbol and code on LCD. A continuous beep is also generated by the UPS. TIPO DE FALLA CODIGO DE FALLA SIMBOLO... -
Page 18: Troubleshooting
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 9. TROUBLESHOOTING PROBLEM PROBABLE CAUSE & SOLUCION Low Batteries Charge: Recharge Batteries during 4-6 h. Short runtime in Battery mode Old Batteries: Batteries must be replaced by new ones ALARMS PROBABLE CAUSE & SOLUCION High power consumption connected to UPS: Disconnect no critical equipment from UPS. -
Page 19: Software
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 10. SOFTWARE Our monitoring software allows user to manage UPS and monitoring of all of its features. Main software features are: Configuring UPS parameters, Automatic shutdown for protected PCs (OS and files) when long blackouts force UPS to power-off, Scheduled battery tests, shutdown and start-up and Easy interface for monitoring UPS and Main service. - Page 20 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) BATTERY REPLACEMENT: 2 BATTERIES, 24VDC MODELS (1KVA) 1: Remove old batteries 2: Connect 2 batteries in series 3: Install new batteries in the 4: Close binder binder BATTERY REPLACEMENT: 3 BATTERIES, 36VDC MODELS (1.5KVA) 1: Remove old batteries 2: Connect 2 batteries in series 3: Install new batteries in the...
- Page 21 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 12. BATTERIES: RECHARGING This UPS includes a powerful and modern battery charger which is connected to the AC input Charger Configuration: Maximum recharging current can be configured in the LCD frontal panel. Maximum current must be configured according to the capacity of the battery bank.
-
Page 22: Support & Warranty
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 13. SUPPORT & WARRANTY Support: If a failure or problem is detected please check troubleshooting section in user manual. If problem cannot be solved please contact authorized service center or authorized dealer. Batteries: Rechargeable batteries can be charged and discharged hundreds of times. -
Page 23: Front & Rear Panel
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 14. FRONT & REAR PANEL A.- LCD 4.- AC Input breaker/fuse B.- ON/MUTE 5.- RJ45 surged protected sockets C.- SELECT 6.- Emergency power off connector/port D.- OFF/ENTER 7.- USB & RS232 ports 1.- Standard UPS outlets 8.- Intelligent SNMP port 2.- Programmable outlets... - Page 24 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) www.xmart-ups.com VER.2010.22-One (ENG)
-
Page 25: Specifications
INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 15. SPECIFICATIONS (1/2) ONLINE RT10 1K - 3K 1.5K 1000VA / 1000W 1500VA / 1450W 2000VA / 1930W 3000VA / 2880W Capacity / Capacidad 120V (UL) 1.00 0.97 0.97 0.96 Output PF / FP de Salida 1000VA / 1000W 1500VA / 1500W 2000VA / 2000W... - Page 26 INDEX USER MANUAL - OPTIMA RT10 1K/1.5K/2K/3K (UL) 15. SPECIFICATIONS (2/2) ONLINE RT10 UPS (UL) 1.5K INDICATORS / INDICADORES UPS status, Load level, Battery, Input/Output voltage, Discharge timer, and Fault LCD / Pantalla de Cristal Liquido (LCD) Estado del UPS, Consumo, Baterías, Voltaje Entrada/Salida, Autonomía, Diagnóstico ALARM / ALARMAS Beep Alarms / Alarma Sonora: (Batt.
