FLUX OPEN PLAN
INSTALLATION AND ASSEMBLY
OF SLAT WALLS WITH
ACCESSORIES
Recommended Tools
Hardware Needed
#8 x 3/4" PHP Screws
NOTE: All screws provided must be
installed for proper installation and
compliance with product warranty.

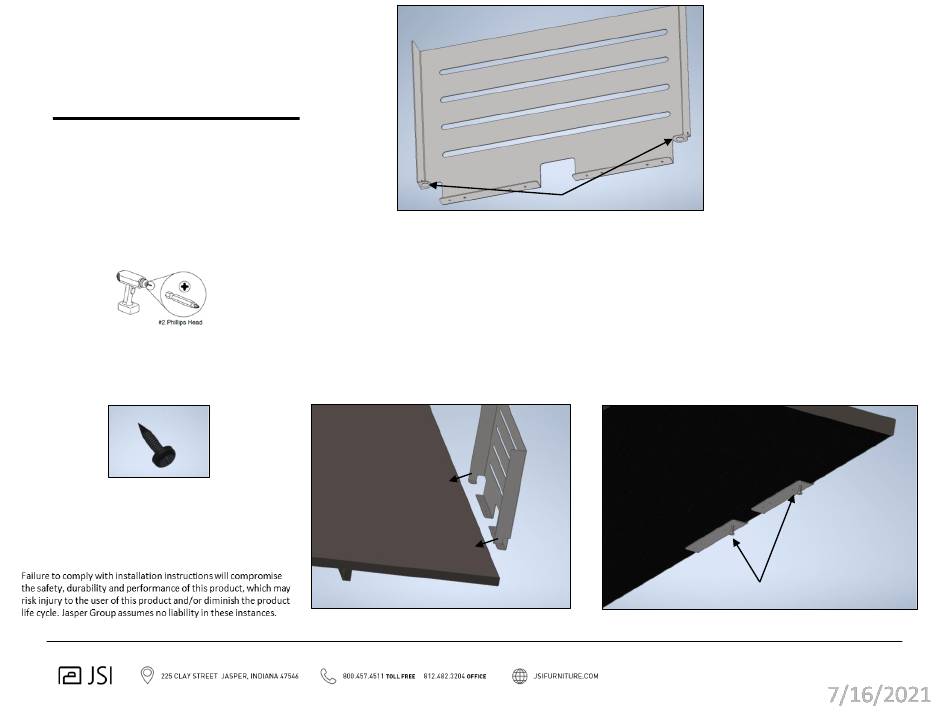

1. Remove the peel strip from the face of the rubber bumper provided, then
place the bumper on the bottom of the slat wall tabs (Figure 1)
2. Slide the slat wall onto the worksurface in the desired location (Figure 2)
3. Secure the wall by screwing #8 x 3/4" screws into the pre-drilled holes on
the bottom of the slat wall (Figure 3)
Bumpers
Figure 1
Figure 2
INST-FL0032
#8 x 7/8"
Figure 3
