JSI FLUX OPEN PLAN How To Assemble

FLUX OPEN PLAN
HOW TO ASSEMBLE A 120⁰
BENCH SURFACE
Recommended Tools
Hardware Needed
¼-20 x ½" PHP #10 x 7/8 PHP Screw
Machine Screw
NOTE: All screws provided must be
installed for proper installation and
compliance with product warranty.

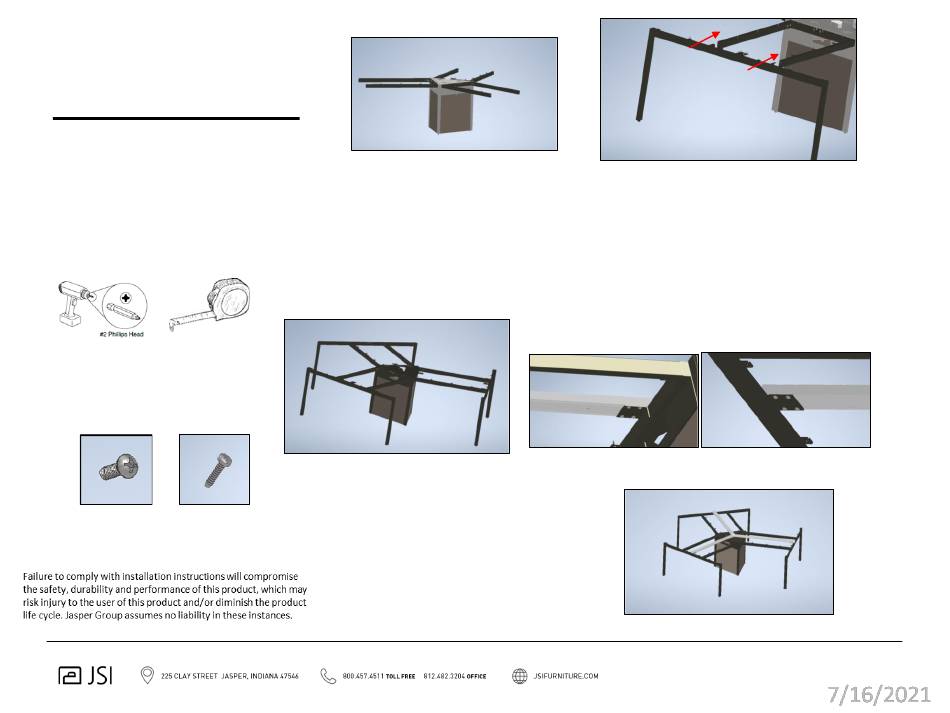

Figure 1
1. Position and secure metal stretchers to the triangular base so that they are flush
along the top and centered horizontally using the ¼-20 x ½" machine screws
provided. Repeat for each side (Figure 1)
2. Slide the extrusions on the end support frame into the metal stretchers and secure
with the ¼-20 x ½" machine screws as shown. Repeat for each side (Figure 2 & 3)
Figure 3
3. Attach the aluminum rails
so that it is flush with the
outside of the frame using the
¼-20 x ½" machine screws
provided as shown. Repeat for
each side (Figure 4 & 5)
Figure 2
Figure 4
INSTALLATION INSTRUCTIONS
INST-FL0017
Figure 5
Figure 6
