JSI Flux Installation Instructions

Flux

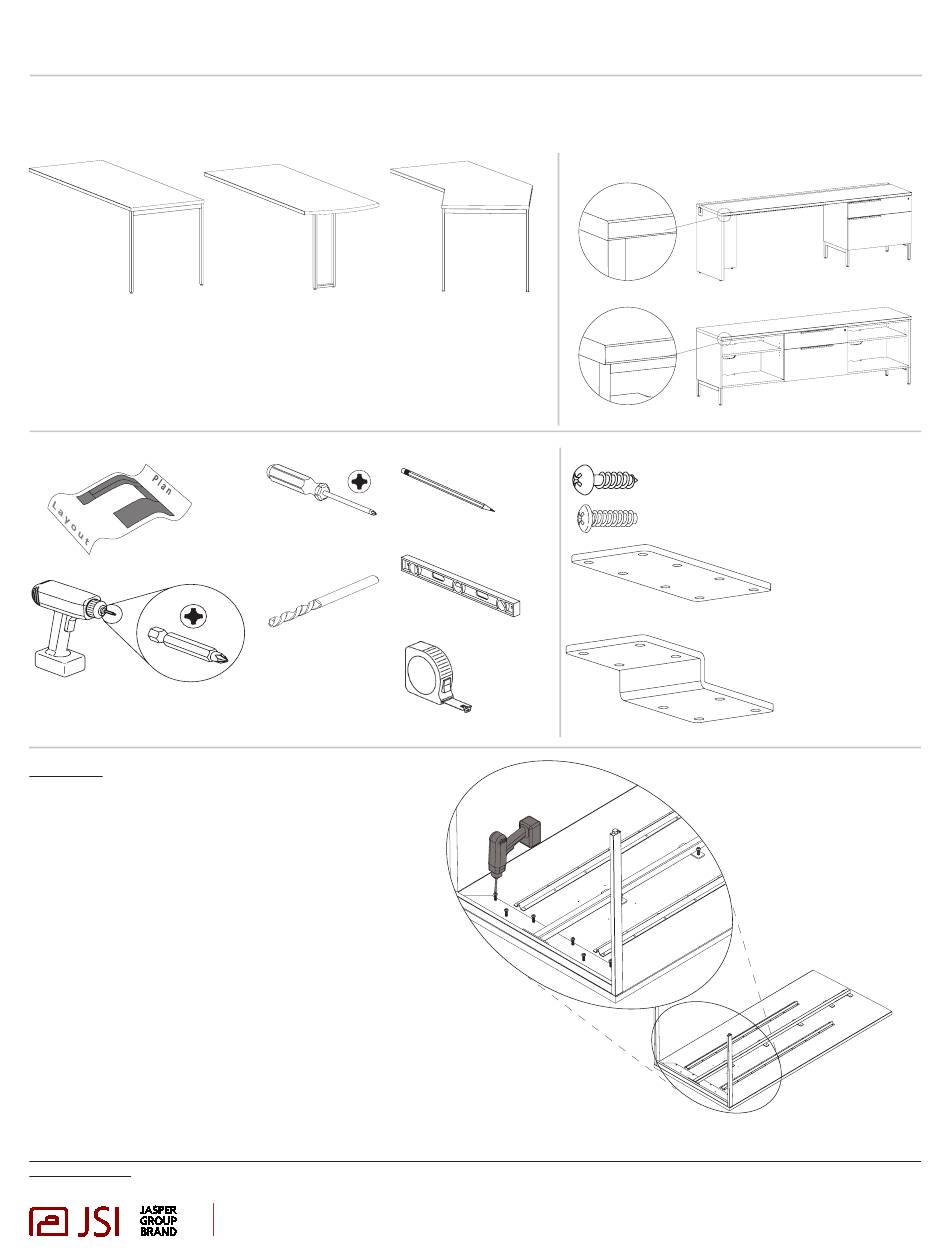

Assembling and Attaching
Run-off Desk with End Leg/Post Frame to a Support Credenza
Installers: Two set of brackets are included with the run-off
desk, flat brackets and stepped brackets. Credenza are offered
with aprons or no aprons.
Recommended Tools
Product Layout Plan
Screw Gun Phillips Head Bit
Step 1
End Frame Assembly / Post
Frame Assembly Installation
• Unpack the end leg assembly/post frame assembly
along with hardware.
• Align the top support rail perpendicular to the end leg
assembly/post frame assembly using the two
¼-20 pan head bolts to secure the top.
• Flip worksurface top upside down and lay on a flat
clean debris free pad.
• Place leg or post assembly onto the bottom side of
the worksurface top.
• Align the leg or post assembly with the pre-bored
holes on the top for the assembly.
(tabs on Top Support Rail are not pre-bored)
• Fasten assembly to the bottom side using #8 x
pan head screws.
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
Screw Driver
Pencil
Level
Drill Bit
Tape Measure
7 "
/
8
jsifurniture.com 812.482.3204
800.457.4511 812.482.1548
Types of Credenzas
flush to top - use flat bracket
apron rail top - use stepped bracket
Hardware Used
Flat Bracket
Step Bracket
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
#8 x 7 " Wood Screws
/
8
1 / -20 x 3 / " Pan Head Screws
4 4
four (4) flat brackets
included
four (4) step brackets
included
Page 1 of 2
Form No. INST-FL011
1-22-18
