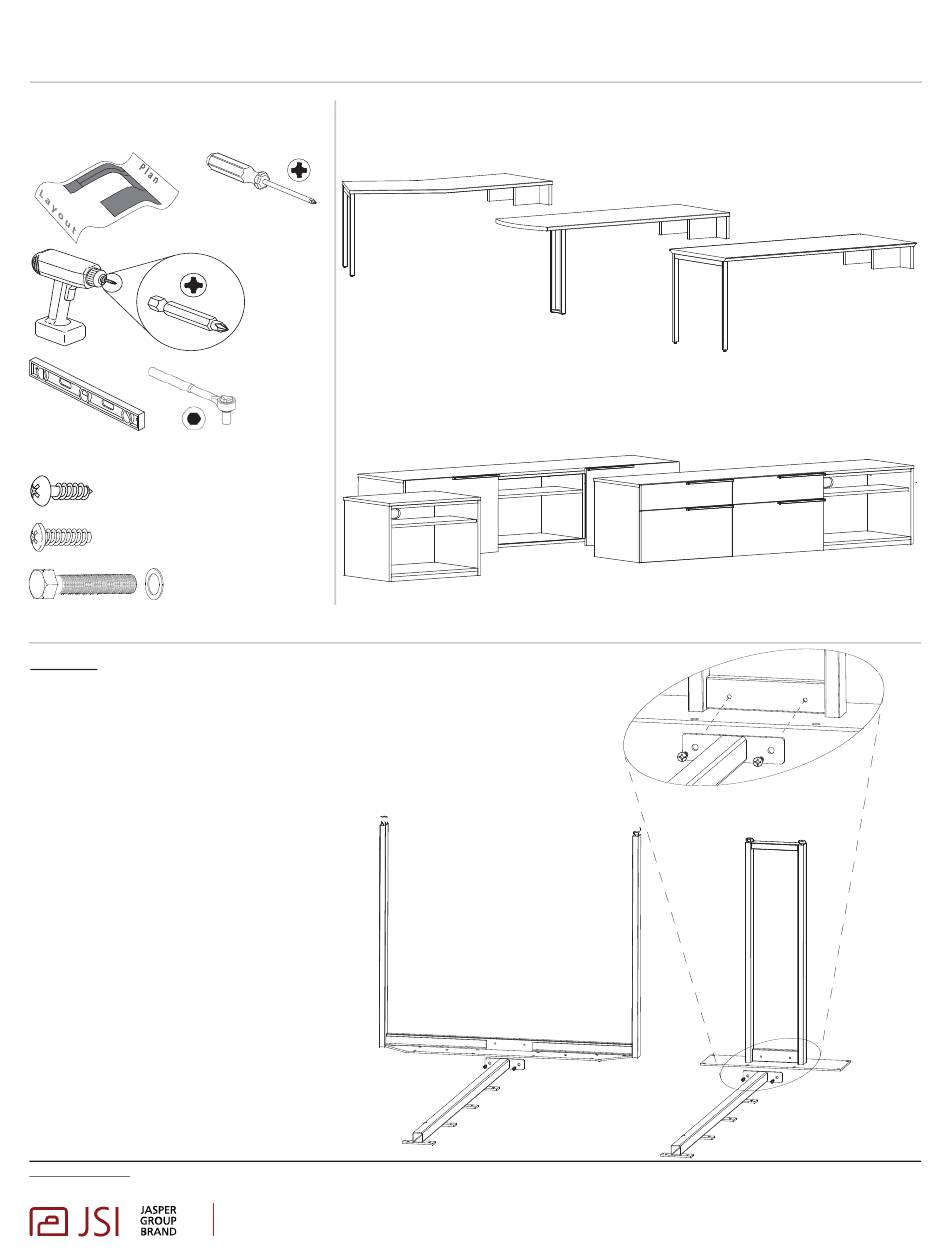

JSI Flux Series Installation Instructions

Advertisement

Flux
Mounting of Peninsula Desks w/End Leg/Post Frame to Support Credenza

Recommended Tools

Screw Driver
Product Layout Plan
Screw Gun
Level

Hardware Used

#8 x
" Wood Screws
7
/
8
-20 x
" Pan Head Screws
1
3
/
/
4
4
-1
5
1
/
/
16"
with Washer
(included with credenza)
Step 1
Attaching Top Support
Rail
• Unpack the end leg assembly/post frame
assembly along with the hardware.
• Align the top support rail perpindicular to
the end leg assembly/post frame
assembly using the two ¼-20 pan
head bolts to secure the top.
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
s
Phillips Head Bit
Installers: To properly install the Flux Peninsula Desk product you will
need a floor plan to assure proper installation. Peninsula Desk require
Socket Wrench
a secondary height credenza with factory installed mounting.
" Hex Head Bolts
2
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F

Installation Instructions

Page 1 of 3
Form No. INST-FL006
11/21/17
