CAAV
IN SURFACE POWER INSTALL
NO TOOLS REQUIRED
NOTE: all screws provided must be
installed for proper installation and
compliance with product warranty.
EC46 Power Unit shown
STEP 1:

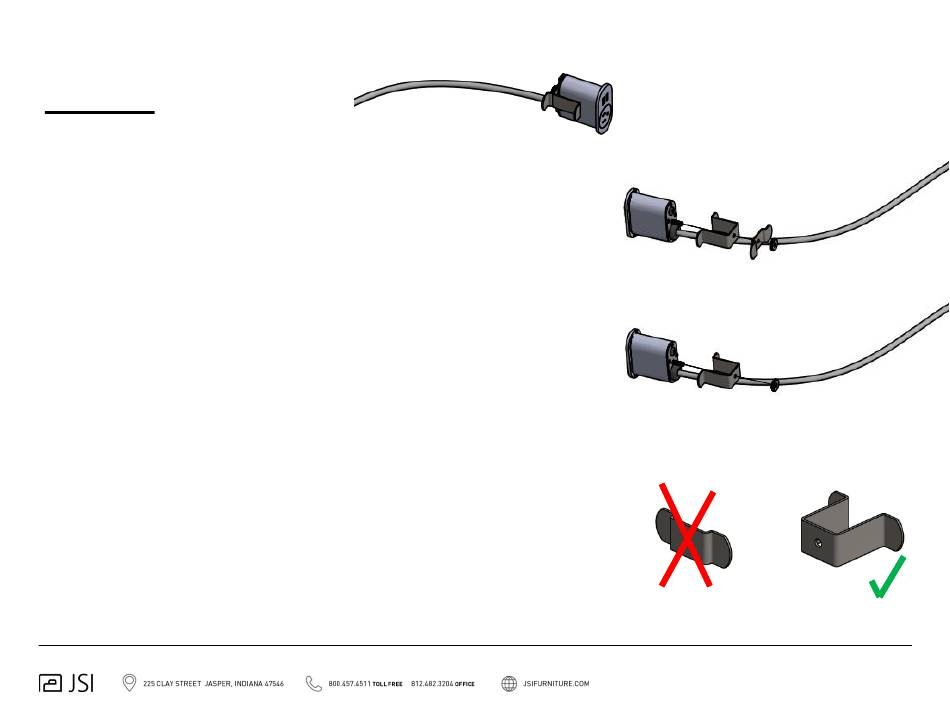

• Remove thumb nut from rear of EC46 unit and
remove both of the retainer brackets as shown.
• Keep the thumb nut
• You will discard the smaller of the 2 brackets
and keep the larger. The smaller is utilized in
applications other than work surfaces.
Keep
Discard
