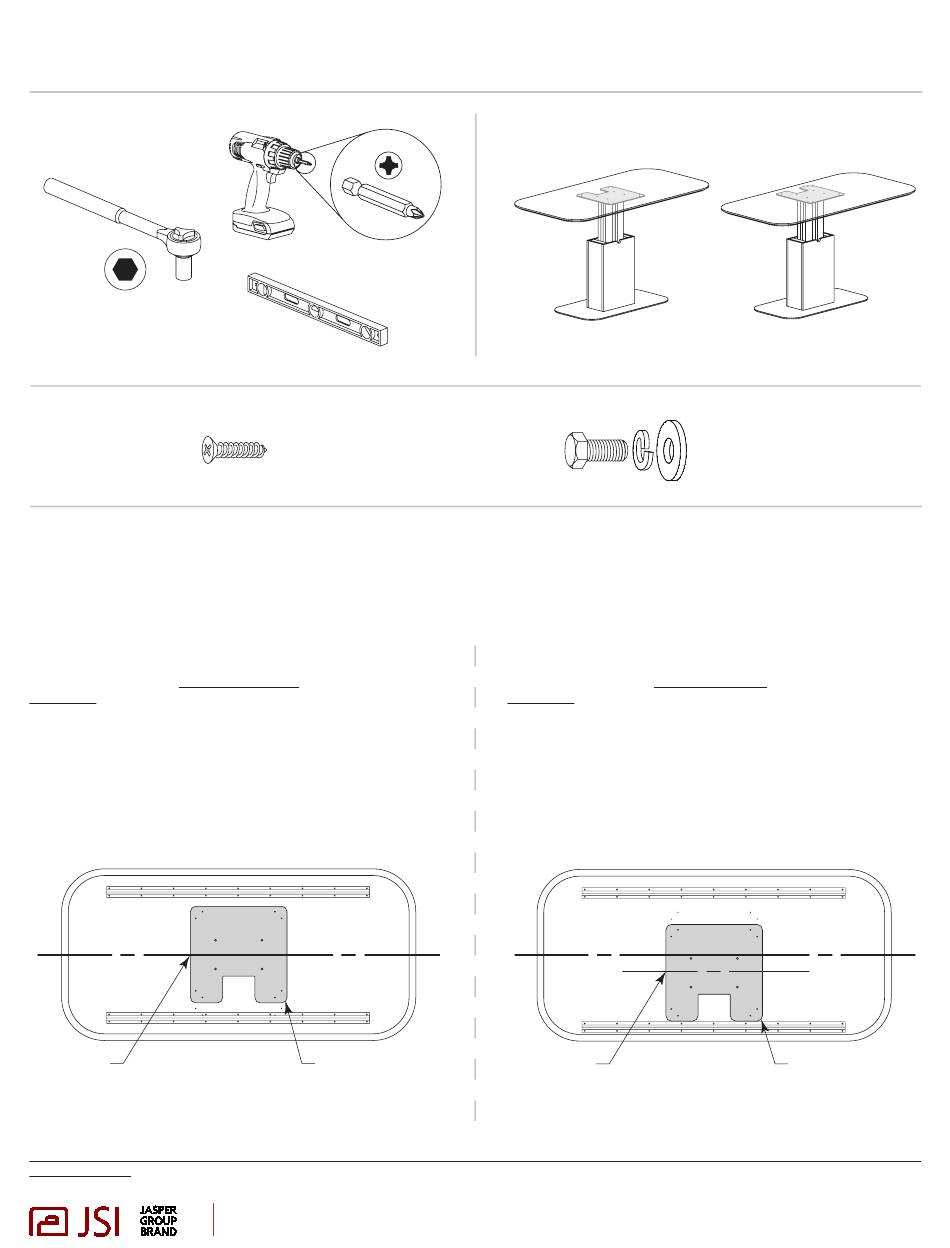

JSI Flux Installation Instructions

Flux
Recommended Tools
Screw Gun
Socket
Wrench
1 " Socket
/
2
Hardware Used
Note:
The mounting plate will be shipped fastened to the table top in either center or offset location.
To change the mounting plate/table top location, please follow Step 1. If the mounting plate is
in desired location please proceed to Step 2.
Center Mount
Step 1
• Carefully lay top upside down on a flat smooth surface.
• Align mounting plate to the set of pre-bored holes which
centers the mounting plate to the top. (See below)
• Fasten mounting plate to top using eight (8) #10 x
head wood screws.
Underside of Top
Centered
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
#2 Phillips Head Bit
Level
#8 x 7 " Flat Head Wood Screws
/
8
7 " flat
/
8
Mounting Plate
jsifurniture.com 812.482.3204
800.457.4511 812.482.1548
Adjustable Table Top Location
Center Mount
Step 1
• Carefully lay top upside down on a flat smooth surface.
• Align mounting plate to the set of pre-bored holes which will
offset the mounting plate to the table top. (See below)
• Fasten mounting plate to top using eight (8) #10 x
head wood screws.
Offset
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F

Installation Instructions

Offset Mount
5 " x 1 1 " Hex Head Bolts,
/ /
16 4
Flat Washers & Lock Washers
Offset Mount
Underside of Top
Mounting Plate
Page 1 of 3
7 " flat
/
8
Form No. INST-FL003
6/1/18
