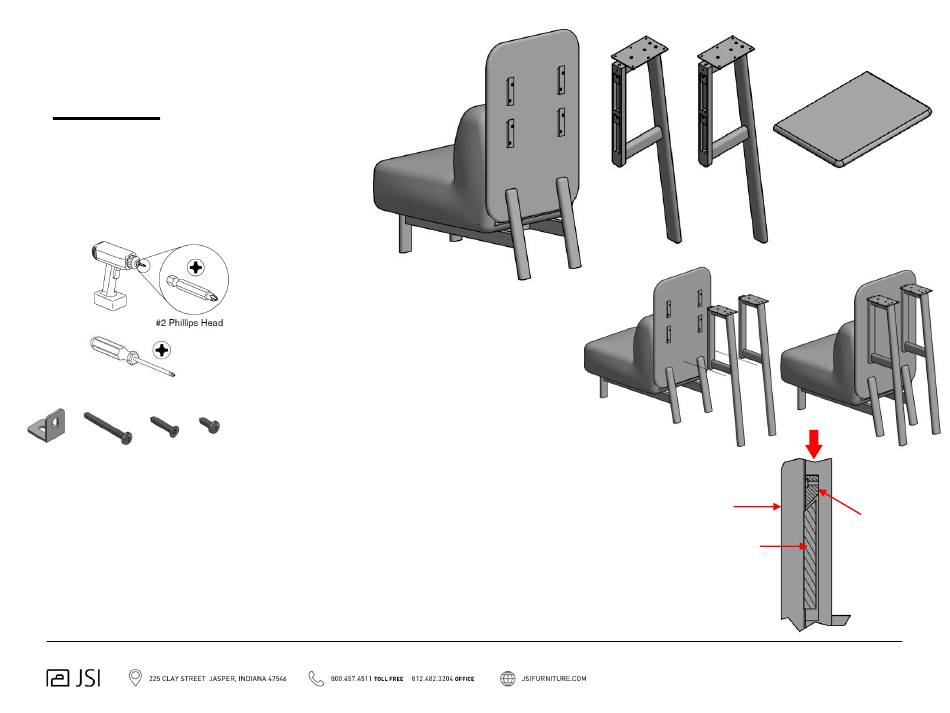

CAAV

STAND UP SURFACE INSTALL

Recommended tools

Hardware enclosed

"L" Brackets – 1 per leg support

#8 x 1-½ pan head screws – 1 per leg support

#8 x 7/8 flat head screw – 6 per leg support

#8 x ½ pan head screw – 2 per leg support

NOTE: all screws provided must be

installed for proper installation and

compliance with product warranty.

CHAIR WITH SCREEN:

HANGING CLEATS

ARE PRE-INSTALLED

ON PANEL

UNIT WILL COME PACKED IN MULTIPLE BOXES:

• 1

box will contain the chair with screen

• Remaining box(s) will contain the top panel and

leg supports

STEP 1:

• Attach rear leg supports to screen by aligning

the cleat on the back of the screen to the

hanger inside the rear leg support.

PANEL

CLEAT

INSTALLATION INSTRUCTIONS

HANGER

Need help?

Do you have a question about the CAAV and is the answer not in the manual?

Page 1 CHAIR WITH SCREEN: HANGING CLEATS ARE PRE-INSTALLED CAAV ON PANEL STAND UP SURFACE INSTALL Recommended tools UNIT WILL COME PACKED IN MULTIPLE BOXES: • 1 box will contain the chair with screen • Remaining box(s) will contain the top panel and...
Page 2 • Lock the leg support down with a #8x1-1/2 pan head • Use the #8x7/8 flat head screws to fasten top in place. CAAV screw thru the top of the rear support as shown. Only do this with the hand screw driver – fasten slowly – you...
Page 3 Apply “L” brackets to the bottom of the top if additional • Properly level unit using the leveling glides stability is desired. • CAAV Install using the #8x1/2 pan head as shown below. Only do • Install complete this with the hand screw driver – fasten slowly – you may...
